DM5S Series

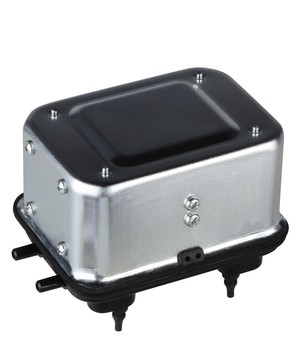

The DM5S is the 10 l/min miniature linear diaphragm pump from the Airmac DBS Series. With an OEM component deisgn these pumps are ideally suited to applications requiring long life and low pressure differentials. This series has a metal housing for exceptional low sound levels. Examples applications are air / gas monitoring, medical massage systems and fragrance generation. They are supplied with inlet and outlet porting, integrated 'pull-through' vibration mounts and connection leads. Available voltages: 12 V / 50 Hz, 230 V / 50 Hz.

› Flow rate to 10 l/mim
› OEM component with inlet and outlet ports
› Exceptionally Low sound level
› Low power consumption
› Lightweight / compact
› Integrated 'pull-through' vibration mounts
› Long life linear drive

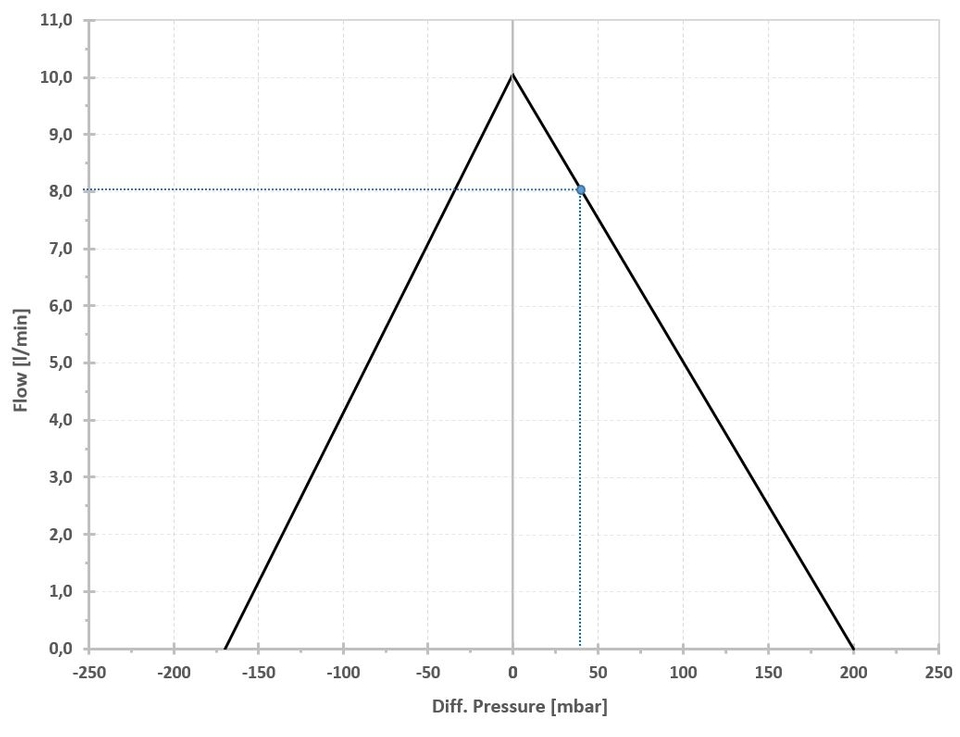

Operating Flow Range	0 to 10 l/min
Operating Pressure Range	-170 to +200 mbar
Flow (at 40 mbar)	8.0 l/min

Power Consumption (at 40 mbar)	9 W

Current Consumption (at 40 mbar)
230 V / 50 Hz	0.06 A
12 V / 50 Hz	1.10 A

Cable Length	370 mm
Cable Termination	10 mm stripped / soldered

Approval	CE (according to EN60335, electrical household appliances), RoHS

Operating Temperature Range	-10 to +40 °C
Operating Humidity Range	20 to 80% RH

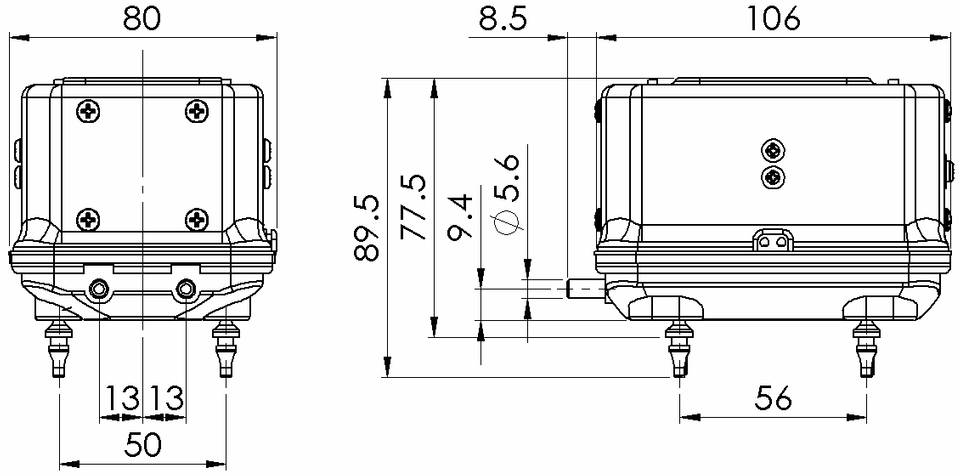

Inlet	5.6 mm OD straight port
Outlet	5.6 mm OD straight port

Weight	0.9 kg

Order Information

Part Number: 120005.012 DB5S 12 V / 50 Hz
Part Number: 120005.230 DB5S 230 V / 50 Hz

All data is representative for selection purposes, however does not indicate maximum or minimum values. These products are sold as components which are to be incorporated into a device. It is the responsibility of the manufacturer of the device to determined the suitability of the pump for the application and to ensure compliance will all applicable approvals and regulations. These products are not suitable for in-vivo applications.
