DBMX300 Series

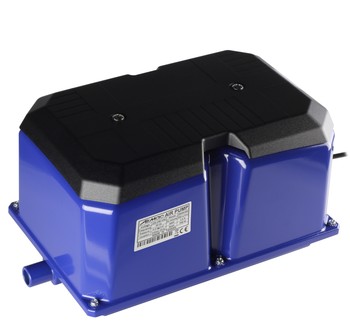

The DBMX300 is the 300 l/min linear diaphragm pump from the Airmac DBMX Series. It offers low noise with stable performance over the long lifespan of the pump. It is sold complete with a robust and sound reducing aluminium housing, integrated inlet filter, rubber feet, outlet port with additional rubber elbow connector and clamps, power cord and EU plug. To accomodate the increased performance when compared to the DBMX pumps below 250 l/min, this pump is designed with a dual drive system sharing the load efficiently over 4 heads.

› Flow rate of 300 l/mim against 200 mbar
› Low power consumption (298 W)
› Long life linear drive
› Safety switch to protect against diaphragm failure
› Fully serviceable (⇒ service kits)

Flow (at 200 mbar)	300 l/min
Operating Pressure Range	100 to 250 mbar
Operating Flow Range	400 to 250 l/min

Current Consumption (at 200 mbar))	2.6 A
Power Consumption (at 200 mbar)	298 W

Cable Length	1.8 m
Cable Termination	EU Plug

Approval	CE (according to EN60335, electrical household appliances), RoHS

Operating Temperature Range	-10 to +40 °C
Operating Humidity Range	20 to 80% RH

Inlet	Via Integrated filter (under housing cover as replaceable item)
Outlet	26 mm OD port

Weight	19.1 kg

Order Information

Part Number: 190300.230 DBMX300 230 V / 50 Hz

All data is representative for selection purposes, however does not indicate maximum or minimum values. These products are sold as components which are to be incorporated into a device. It is the responsibility of the manufacturer of the device to determined the suitability of the pump for the application and to ensure compliance will all applicable approvals and regulations. These products are not suitable for in-vivo applications.
