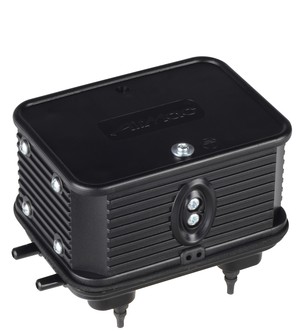

DB10S Series
The DB10S is the 13 l/min miniature linear diaphragm pump from the Airmac DBS Series. With an OEM component deisgn these pumps are ideally suited to applications requiring long life, low pressure differentials and low sound. Examples are air / gas monitoring, medical massage systems and fragrance generation. They are supplied with inlet and outlet porting, integrated 'pull-through' vibration mounts and connection leads. Available voltages: 230 V / 50 Hz.
› Flow rate to 13 l/mim
› OEM component with inlet and outlet ports
› Low sound level
› Low power consumption
› Lightweight / compact
› Integrated 'pull-through' vibration mounts
› Long life linear drive

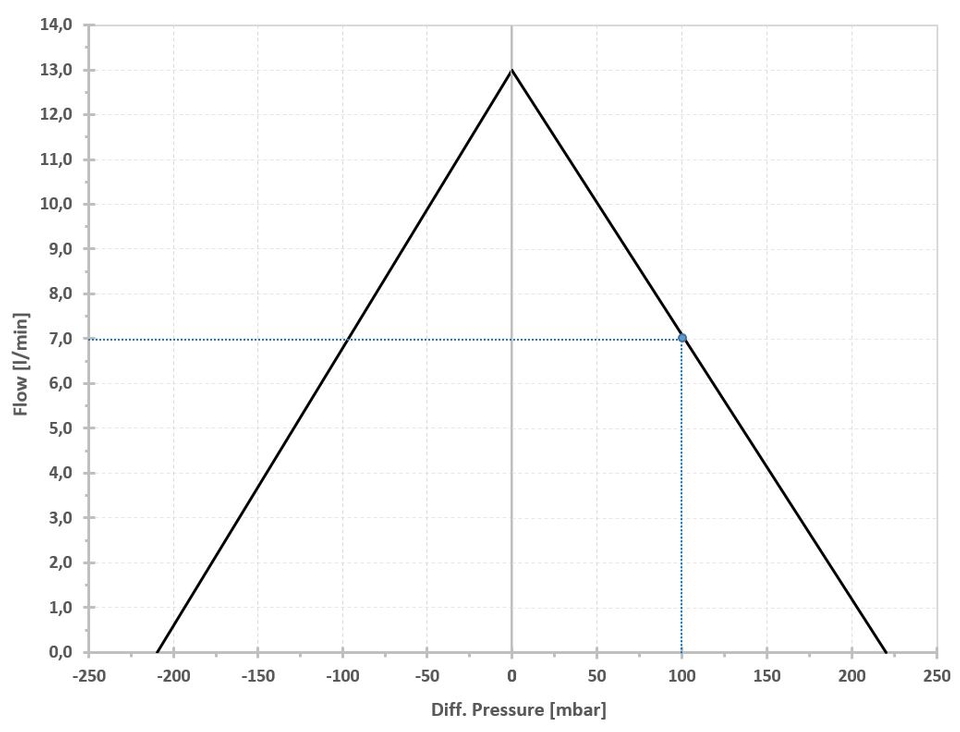

| Operating Flow Range | 0 to 13 l/min |
| Operating Pressure Range | -210 to +220 mbar |
| Flow (at 100 mbar) | 7.0 l/min |
| Power Consumption (at 100 mbar) | 9 W |
| Current Consumption (at 100 mbar) | |
| 230 V / 50 Hz | 0.27 A |
| Cable Length | 370 mm |
| Cable Termination | 10 mm stripped / soldered |
| Approval | CE (according to EN60335, electrical household appliances), RoHS |
| Operating Temperature Range | -10 to +40 °C |
| Operating Humidity Range | 20 to 80% RH |
| Inlet | 5.6 mm OD straight port |
| Outlet | 5.6 mm OD straight port |
| Weight | 0.7 kg |
Order Information
Part Number: 110010.230 DB10S 230 V / 50 Hz
All data is representative for selection purposes, however does not indicate maximum or minimum values. These products are sold as components which are to be incorporated into a device. It is the responsibility of the manufacturer of the device to determined the suitability of the pump for the application and to ensure compliance will all applicable approvals and regulations. These products are not suitable for in-vivo applications.
