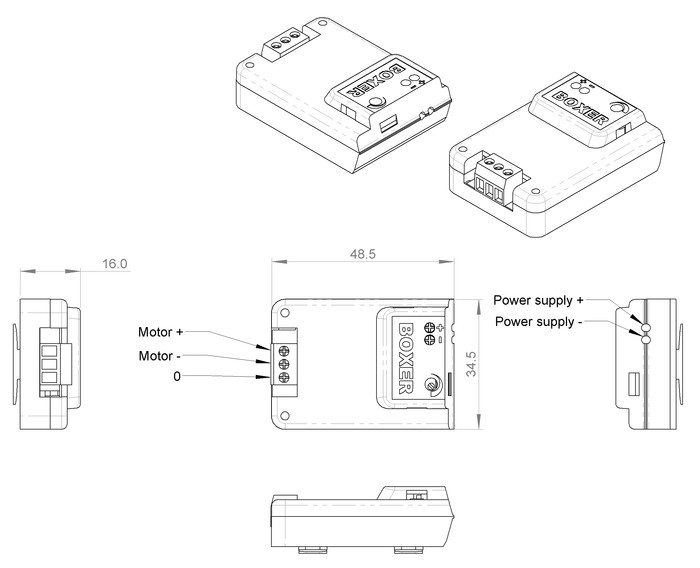

PWM Flow Controller
This PWM flow controller is deisgned for the specific needs of DC motor driven pumps. With a constant DC supply voltage the output can be varied between 0 and 100% through an on-board potentiometer providing optimal flow control of both diaphragm and peristaltic pumps.
| Input Voltage | 12 to 24 V DC |
| Maximum Load | 2 A |
| Fuse | 3 A timed, non-resetting |
| Duty Cycle | 0 to 100% |
| Duty Cycle Adjustment | On-board, 15 turn potentiometer |
| PWM Frequency | 10 kHz (nominal) |
Part Number:
6900.009
€67.33*
Available, shipping in 1 - 2 days
All data is representative for selection purposes, however does not indicate maximum or minimum values. These products are sold as components which are to be incorporated into a device. It is the responsibility of the manufacturer of the device to determined the suitability of the pump for the application and to ensure compliance will all applicable approvals and regulations. These products are not suitable for in-vivo applications.
