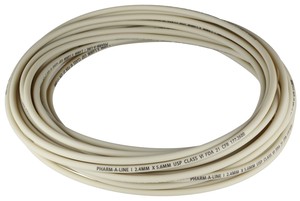

Pharmaline Peristaltic Pump Tubing

Pharm-a-line tubing is manufactured from medical grade thermoplastic elastomers (TPE) and has been specifically developed for use in perstaltic pumps.

Offering full biocompatability and superior life, it is ideal for pharmaceutical, biological and food and beverage applications (full certification / regulatory information is shown below).

Each 15 m coil is individually packed under clean room conditions and supplied in a sealed plastic bag.

Pharm-a-line peristaltic pump tubing is a unique product of TBL Plastics, a precison tube and fittings manufacturer based out of New Jersey, USA. Boxer now stocks and distributes Pharm-a-line and other TBL products.

Available Sizes
(supplied in 15m coils)

1.05 mm Wall	0.5 x 2.6 mm (ID x OD)
(suitable for the 9QX, 9QQ and 9K series)	1.0 x 3.1 mm (ID x OD)
	2.0 x 4.1 mm (ID x OD)
	3.0 x 5.1 mm (ID x OD)
	3.5 x 5.6 mm (ID x OD)

1.6 mm Wall	1.6 x 4.8 mm (ID x OD)
(suitable for the 15KS, 15QQ and 25K series)	2.4 x 5.6 mm (ID x OD)
	3.2 x 6.4 mm (ID x OD)
	4.8 x 8.0 mm (ID x OD)

Chemical Compatibility	⇒ Pharm-a-line Chemical Compatibility (.pdf)

Certifications	Biological compatibility U.S. Pharmacopoeia (USP) Class VI
	Cytotoxicity Criteria
	CFR Title 21 Section 177.2600
	FDA Registration Number 21CFR177.2600
	REACH, RoHS

Sterilisation Methods	Ethylene oxide
	Autoclave
	Gamma radiation

Other Data
Specific Gravity (ASTM D792)	0.97
Durometer (5SEC.ASTM D2240))	64 Shore A
Tensile Strength at Break (ASME D-412)	972 psi
Elongation (ASTM D-412)	307 %

To order samples / small quantities, click on the above 'Purchase Configurator' link or use the 'Add to shopping cart' links below.

Part Number: 80510.115

0.5 mm ID x 15 m Coil (1.0 mm wall)

€189.41*

Available, shipping in 1 - 2 days

Part Number: 9000.535

1.0 mm ID x 1 m (1.0 mm wall)

€17.92*

Available, shipping in 1 - 2 days

Part Number: 81010.115

1.0 mm ID x 15 m Coil (1.0 mm wall)

€192.04*

Available, shipping in 1 - 2 days

Part Number: 9000.536

2.0 mm ID x 1 m (1.0 mm wall)

€17.92*

Available, shipping in 1 - 2 days

Part Number: 82010.115

2.0 mm ID x 15 m Coil (1.0 mm wall)

€194.67*

Available, shipping in 1 - 2 days

Part Number: 9000.537

3.0 mm ID x 1 m (1.0 mm wall)

€18.41*

Available, shipping in 1 - 2 days

Part Number: 83010.115

3.0 mm ID x 15 m Coil (1.0 mm wall)

€197.30*

Available, shipping in 1 - 2 days

Part Number: 9000.547

3.5 mm ID x 1 m (1.0 mm wall)

€18.66*

Available, shipping in 1 - 2 days

Part Number: 83510.115

3.5 mm ID x 15 m Coil (1.0 mm wall)

€199.93*

Available, shipping in 1 - 2 days

Part Number: 15000.210

1.6 mm ID x 1 m (1.6 mm wall)

Part Number: 81616.115

1.6 mm ID x 15 m Coil (1.6 mm wall)

Part Number: 15000.211

2.4 mm ID x 1 m (1.6 mm wall)

Part Number: 82416.115

2.4 mm ID x 15 m Coil (1.6 mm wall)

Part Number: 15000.212

3.2 mm ID x 1 m (1.6 mm wall)

€23.57*

Available, shipping in 1 - 2 days

Part Number: 83216.115

3.2 mm ID x 15 m Coil (1.6 mm wall)

€252.55*

Available, shipping in 1 - 2 days

Part Number: 15000.213

4.8 mm ID x 1 m (1.6 mm wall)

€26.02*

Available, shipping in 1 - 2 days

Part Number: 84816.115

4.8mm ID x 15 m Coil (1.6 mm wall)

€278.86*

Available, shipping in 1 - 2 days

Part Number: 86424.101

6.4 mm ID x 1 m (1.6 mm wall)

€32.65*

Available, shipping in 1 - 2 days

Part Number: 86416.115

6.4 mm ID x 15 m Coil (1.6 mm wall)

€315.68*

Available, shipping in 1 - 2 days

Part Number: 88024.101

8.0 mm ID x 1 m (1.6 mm wall)

€40.70*

Available, shipping in 1 - 2 days

Part Number: 88024.115

8.0 mm ID x 15 m Coil (1.6 mm wall)

€465.63*

Available, shipping in 1 - 2 days

Part Number: 86424.101

6.4 mm ID x 1 m (2.4 mm wall)

€32.65*

Available, shipping in 1 - 2 days

Part Number: 86424.115

6.4 mm ID x 15 m Coil (2.4 mm wall)

€373.55*

Available, shipping in 1 - 2 days

Part Number: 88024.101

8.0 mm ID x 1 m (2.4 mm wall)

€40.70*

Available, shipping in 1 - 2 days

Part Number: 88024.115

8.0 mm ID x 15 m Coil (2.4 mm wall)

€465.63*

Available, shipping in 1 - 2 days

Additional Accessories

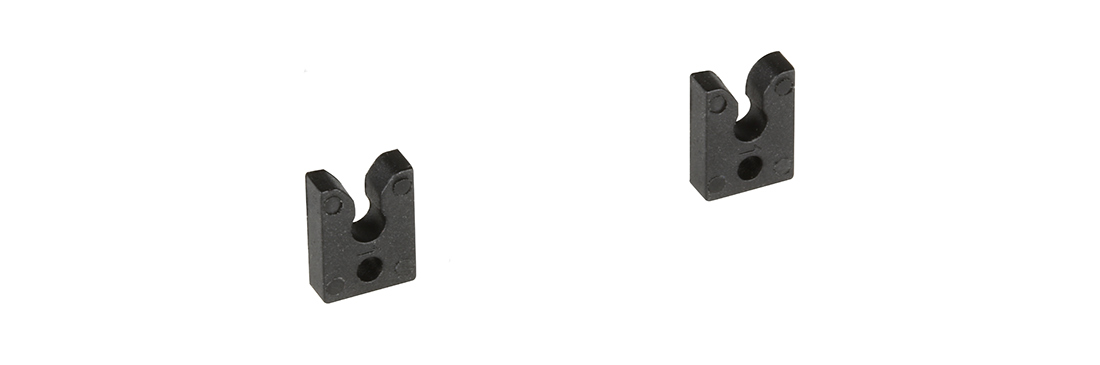

Tube clip for 0.5 and 1 mm ID continuous tube, set of 2

€1.15*

Details

All data is representative for selection purposes, however does not indicate maximum or minimum values. These products are sold as components which are to be incorporated into a device. It is the responsibility of the manufacturer of the device to determined the suitability of the pump for the application and to ensure compliance will all applicable approvals and regulations. These products are not suitable for in-vivo applications.
