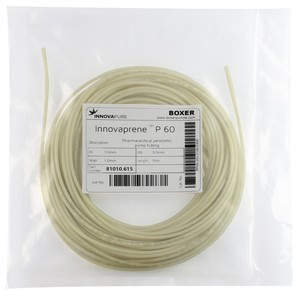

Innovaprene P60 Peristaltic Pump Tubing

Innovaprene tubing is medical grade thermoplastic elastomer designed for peristaltic pump applications offering excellent chemical compatibility, durability and pump tube life. Being the highest specification grade from this series, Innovaprene P60 can be used in industrial, food, medical, biological and pharmaceutical applications. Regulatory approvals include FDA, USP Class VI, cytotoxicity and ISO10993. Innovaprene P60 is an economic alternative to other manufacturers of bio-pharmaceutical grade tubing with technical and compatibility equivalence.

The tubing is supplied is 15m coils in double wrapped plastic bags and manufactured in ISO class 7 clean room conditions.

Innovaprene P60 is a product from Innovapure. Boxer is the exclusive distributor of these products within Europe.

Available Sizes
(supplied in 15m coils)

1.0 mm Wall	0.5 x 2.5 mm (ID x OD)
(suitable for the 9QX, 9QQ and 9K series)	1.0 x 3.0 mm (ID x OD)
	2.0 x 4.0 mm (ID x OD)
	3.0 x 5.0 mm (ID x OD)
	3.5 x 5.5 mm (ID x OD)

1.6 mm Wall	1.6 x 4.8 mm (ID x OD)
(suitable for the 15KS, 15QQ and 25K series)	2.4 x 5.6 mm (ID x OD)
	3.2 x 6.4 mm (ID x OD)
	4.8 x 8.0 mm (ID x OD)
	6.4 x 9.6 mm (ID x OD)
	8.0 x 11.2 mm (ID x OD)

2.4 mm Wall	6.4 x 11.2 mm (ID x OD)
(suitable for the 25K series)	8.0 x 12.8 mm (ID x OD)

Chemical Compatibility	⇒ Innovaprene Chemical Compatibility (.pdf)

Certifications	Biological compatibility U.S. Pharmacopoeia (USP) Class VI
	Cytotoxicity Criteria
	ISO10993
	REACH, RoHS
	FDA 21CFR177.2600 compliant

Sterilisation Methods	Ethylene oxide
	Autoclave
	Gamma radiation

Other Data
Specific Gravity (ASTM D792)	0.97
Durometer	69 Shore A
Tensile Strength	3.65 Mpa
Elongation	307 %

To order samples / small quantities, click on the above 'Purchase Configurator' link or use the 'Add to shopping cart' links below.

Part Number: 80510.601

0.5 mm ID x 1 m (1.0 mm wall)

€4.46*

Available, shipping in 1 - 2 days

Part Number: 80510.615

0.5 mm ID x 15 m Coil (1.0 mm wall)

€47.80*

Available, shipping in 1 - 2 days

Part Number: 81010.601

1.0 mm ID x 1 m (1.0 mm wall)

€4.81*

Available, shipping in 1 - 2 days

Part Number: 81010.615

1.0 mm ID x 15 m Coil (1.0 mm wall)

€51.46*

Available, shipping in 1 - 2 days

Part Number: 82010.601

2.0 mm ID x 1 m (1.0 mm wall)

€7.02*

Available, shipping in 1 - 2 days

Part Number: 82010.615

2.0 mm ID x 15 m Coil (1.0 mm wall)

€75.21*

Available, shipping in 1 - 2 days

Part Number: 83010.601

3.0 mm ID x 1 m (1.0 mm wall)

€9.47*

Available, shipping in 1 - 2 days

Part Number: 83010.615

3.0 mm ID x 15 m Coil (1.0 mm wall)

€101.41*

Available, shipping in 1 - 2 days

Part Number: 83510.601

3.5 mm ID x 1 m (1.0 mm wall)

€12.12*

Available, shipping in 1 - 2 days

Part Number: 83510.615

3.5 mm ID x 15 m Coil (1.0 mm wall)

€129.87*

Available, shipping in 1 - 2 days

To order samples / small quantities, click on the above 'Purchase Configurator' link or use the 'Add to shopping cart' links below.

Part Number: 81616.601

1.6 mm ID x 1 m (1.6 mm wall)

€13.14*

Available, shipping in 1 - 2 days

Part Number: 81616.615

1.6 mm ID x 15 m Coil (1.6 mm wall)

€140.83*

Available, shipping in 1 - 2 days

Part Number: 82416.601

2.4 mm ID x 1 m (1.6 mm wall)

€14.61*

Available, shipping in 1 - 2 days

Part Number: 82416.615

2.4 mm ID x 15 m Coil (1.6 mm wall)

€156.51*

Available, shipping in 1 - 2 days

Part Number: 83216.601

3.2 mm ID x 1 m (1.6 mm wall)

€15.45*

Available, shipping in 1 - 2 days

Part Number: 83216.615

3,2 mm ID x 15 m Coil (1.6 mm wall)

€165.50*

Available, shipping in 1 - 2 days

Part Number: 84816.601

4.8 mm ID x 1 m (1.6 mm wall)

€16.32*

Available, shipping in 1 - 2 days

Part Number: 84816.615

4.8 mm ID x 15 m Coil (1.6 mm wall)

€174.79*

Available, shipping in 1 - 2 days

Part Number: 86416.601

6.4 mm ID x 1 m (1.6 mm wall)

€17.76*

Available, shipping in 1 - 2 days

Part Number: 86416.615

6.4 mm ID x 15 m Coil (1.6 mm wall)

€190.17*

Available, shipping in 1 - 2 days

Part Number: 88016.601

8.0 mm ID x 1 m (1.6 mm wall)

€18.18*

Available, shipping in 1 - 2 days

Part Number: 88016.615

8.0 mm ID x 15 m Coil (1.6 mm wall)

€194.89*

Available, shipping in 1 - 2 days

To order samples / small quantities, click on the above 'Purchase Configurator' link or use the 'Add to shopping cart' links below.

Part Number: 86424.601

6.4 mm ID x 1 m (2.4 mm wall)

€18.26*

Available, shipping in 1 - 2 days

Part Number: 86424.615

6.4 mm ID x 15 m Coil (2.4 mm wall)

€190.17*

Available, shipping in 1 - 2 days

Part Number: 88024.601

8.0 mm ID x 1 m (2.4 mm wall)

€18.89*

Available, shipping in 1 - 2 days

Part Number: 88024.615

8.0 mm ID x 15 m Coil (2.4 mm wall)

€202.33*

Available, shipping in 1 - 2 days

Additional Accessories

Tube clip for 0.5 and 1 mm ID continuous tube, set of 2

Tube clip for 0.5 and 1 mm ID continuous tube, set of 2

€1.19*

All data is representative for selection purposes, however does not indicate maximum or minimum values. These products are sold as components which are to be incorporated into a device. It is the responsibility of the manufacturer of the device to determined the suitability of the pump for the application and to ensure compliance will all applicable approvals and regulations. These products are not suitable for in-vivo applications.
