9QX / 9QQ / 9K Accessories

Innovaprene	Economic premium medical grade thermosplastic elastomer for pharmaceutical, biological and food / beverage applications.
	Suitable for sterilization via autoclave, ethylene oxide and gamma. FDA registered to 21CFR177.2600.
	⇒ Technical, regulatory and compatibility data

Pharm-a-line	Premium medical grade thermosplastic elastomer for pharmaceutical, biological and food / beverage applications.
	Suitable for sterilization via autoclave, ethylene oxide and gamma. FDA registered to 21CFR177.2600.
	⇒ Technical, regulatory and compatibility data

Innovasil	Premium silicone tube for food and biomedical applications. Suitable for sterilization via autoclave or dry heat. FDA registered.

Lagoprene	Food grade thermoplastic elastomer for food and beverage applications. Complies with NSF 51 (food equipment materials)
	and NSF / ANSI Standard 61 (drinking water system components).

ED-Plex	Premium industrial grade thermoplastic elastomer for aqueous fluids, acids, bases and some oils / hydrocarbons.

To order samples / small quantities, click on the above 'Purchase Configurator' link or use the 'Add to shopping cart' links below.

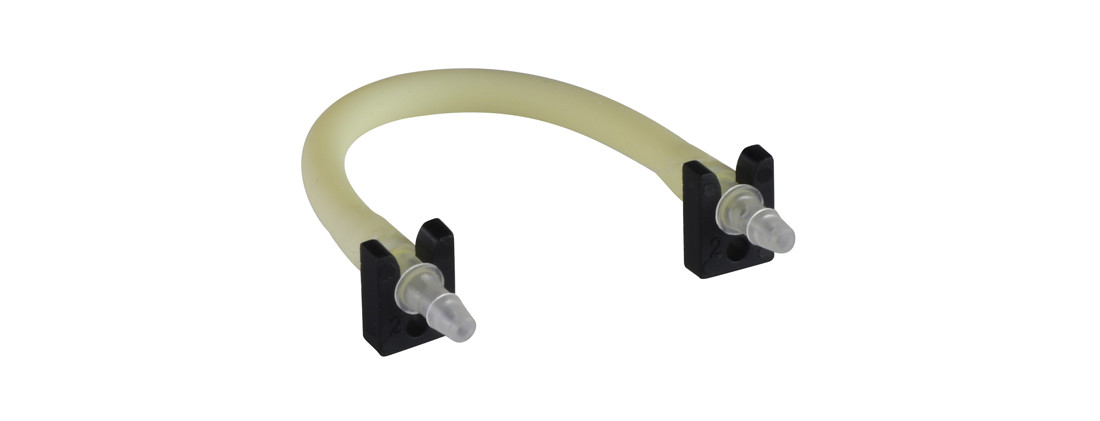

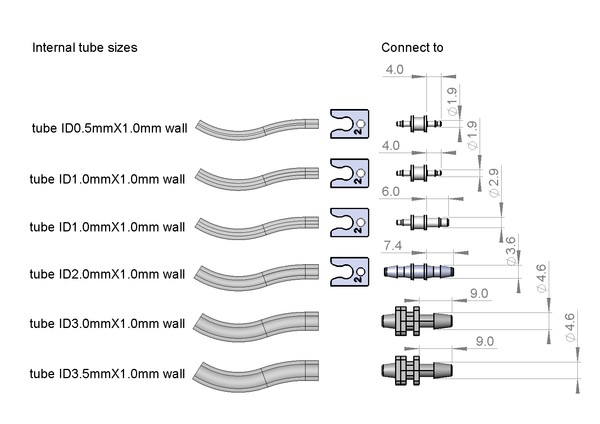

Innovaprene Tube Sets

Part Number: 9000.761

Packaging Unit (Singles or Packs of 5): Single | Tube Set: 0.5 mm ID Tubing (PP connector for 1 mm ID customer side)

€10.39*

Available, shipping in 1 - 2 days

Part Number: 9000.762

Packaging Unit (Singles or Packs of 5): Single | Tube Set: 1 mm ID Tubing (PP connector for 1 mm ID customer side)

€10.39*

Available, shipping in 1 - 2 days

Part Number: 9000.763

Packaging Unit (Singles or Packs of 5): Single | Tube Set: 1 mm ID Tubing (PP connector for 2 mm ID customer side)

€10.39*

Available, shipping in 1 - 2 days

Part Number: 9000.764

Packaging Unit (Singles or Packs of 5): Single | Tube Set: 2 mm ID Tubing (PP connector for 2 mm ID customer side)

€10.39*

Available, shipping in 1 - 2 days

Part Number: 9000.765

Packaging Unit (Singles or Packs of 5): Single | Tube Set: 3 mm ID Tubing (PP connector for 3 mm ID customer side)

€10.39*

Available, shipping in 1 - 2 days

To order samples / small quantities, click on the above 'Purchase Configurator' link or use the 'Add to shopping cart' links below.

Pharm-a-line Tube Sets

Part Number: 9000.567

Tube Set: 0.5 mm ID Tubing (PP connector for 1 mm ID customer side)

€14.61*

Available, shipping in 1 - 2 days

Part Number: 9000.620

Tube Set: 1 mm ID Tubing (PP connector for 1 mm ID customer side)

€14.61*

Available, shipping in 1 - 2 days

Part Number: 9000.531

Tube Set: 1 mm ID Tubing (PP connector for 2 mm ID customer side)

€14.61*

Available, shipping in 1 - 2 days

Part Number: 9000.532

Tube Set: 2 mm ID Tubing (PP connector for 2 mm ID customer side)

€14.61*

Available, shipping in 1 - 2 days

Part Number: 9000.571

Tube Set: 3 mm ID Tubing (PP connector for 3 mm ID customer side)

€14.61*

Available, shipping in 1 - 2 days

To order samples / small quantities, click on the above 'Purchase Configurator' link or use the 'Add to shopping cart' links below.

Innovasil Tube Sets

Part Number: 9000.300

Packaging Unit (Singles or Packs of 5): Single | Tube Set: 0.5 mm ID Tubing (PP connector for 1 mm ID customer side)

€7.80*

Available, shipping in 1 - 2 days

Part Number: 9000.301

Packaging Unit (Singles or Packs of 5): Single | Tube Set: 1 mm ID Tubing (PP connector for 1 mm ID customer side)

€7.80*

Available, shipping in 1 - 2 days

Part Number: 9000.302

Packaging Unit (Singles or Packs of 5): Single | Tube Set: 1 mm ID Tubing (PP connector for 2 mm ID customer side)

€7.80*

Available, shipping in 1 - 2 days

Part Number: 9000.303

Packaging Unit (Singles or Packs of 5): Single | Tube Set: 2 mm ID Tubing (PP connector for 2 mm ID customer side)

€7.80*

Available, shipping in 1 - 2 days

Part Number: 9000.304

Packaging Unit (Singles or Packs of 5): Single | Tube Set: 3 mm ID Tubing (PP connector for 3 mm ID customer side)

€7.80*

Available, shipping in 1 - 2 days

To order samples / small quantities, click on the above 'Purchase Configurator' link or use the 'Add to shopping cart' links below.

Lagoprene Tube Sets

Part Number: 9000.621

Tube Set: 1 mm ID Tubing (PP connector for 1 mm ID customer side)

€12.99*

Available, shipping in 1 - 2 days

Part Number: 9000.512

Tube Set: 1 mm ID Tubing (PP connector for 2 mm ID customer side)

€12.99*

Available, shipping in 1 - 2 days

Part Number: 9000.513

Tube Set: 2 mm ID Tubing (PP connector for 2 mm ID customer side)

€12.99*

Available, shipping in 1 - 2 days

Part Number: 9000.573

Tube Set: 3 mm ID Tubing (PP connector for 3 mm ID customer side)

€12.99*

Available, shipping in 1 - 2 days

To order samples / small quantities, click on the above 'Purchase Configurator' link or use the 'Add to shopping cart' links below.

ED-Plex Tube Sets

Part Number: 9000.619

Tube Set: 1 mm ID Tubing (PP connector for 1 mm ID customer side)

€13.68*

Available, shipping in 1 - 2 days

Part Number: 9000.525

Tube Set: 1 mm ID Tubing (PP connector for 2 mm ID customer side)

€13.68*

Available, shipping in 1 - 2 days

Part Number: 9000.526

Tube Set: 2 mm ID Tubing (PP connector for 2 mm ID customer side)

€13.68*

Available, shipping in 1 - 2 days

Part Number: 9000.740

Tube Set: 3 mm ID Tubing (PP connector for 3 mm ID customer side)

€13.68*

Available, shipping in 1 - 2 days

Innovaprene	Economic premium medical grade thermosplastic elastomer for pharmaceutical, biological and food / beverage applications.
	Suitable for sterilization via autoclave, ethylene oxide and gamma. FDA registered to 21CFR177.2600.
	⇒ Technical, regulatory and compatibility data

Pharm-a-line	Premium medical grade thermosplastic elastomer for pharmaceutical, biological and food / beverage applications.
	Suitable for sterilization via autoclave, ethylene oxide and gamma. FDA registered to 21CFR177.2600.
	⇒ Technical, regulatory and compatibility data

Innovasil	Premium silicone tube for food and biomedical applications. Suitable for sterilization via autoclave or dry heat. FDA registered.

Lagoprene	Food grade thermoplastic elastomer for food and beverage applications. Complies with NSF 51 (food equipment materials)

To order samples / small quantities, click on the above 'Purchase Configurator' link or use the 'Add to shopping cart' links below.

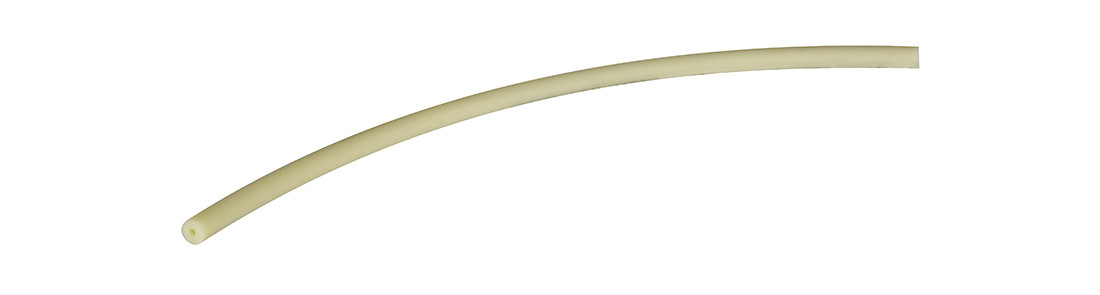

Innovaprene Tube Lengths (x120mm)

Part Number: 9000.767

Size: 0.5 x 1.0 mm (ID x wall)

€0.77*

Available, shipping in 1 - 2 days

Part Number: 9000.768

Size: 1.0 x 1.0 mm (ID x wall)

€0.83*

Available, shipping in 1 - 2 days

Part Number: 9000.769

Size: 2.0 x 1.0 mm (ID x wall)

€1.20*

Available, shipping in 1 - 2 days

Part Number: 9000.770

Size: 3.0 x 1.0 mm (ID x wall)

€1.62*

Available, shipping in 1 - 2 days

Part Number: 9000.771

Size: 3.5 x 1.0 mm (ID x wall)

€2.08*

Available, shipping in 1 - 2 days

To order samples / small quantities, click on the above 'Purchase Configurator' link or use the 'Add to shopping cart' links below.

Pharm-a-line Tube Lengths (x120mm)

Part Number: 9000.713

Size: 0.5 x 1.0 mm (ID x wall)

€3.14*

Available, shipping in 1 - 2 days

Part Number: 9000.714

Size: 1.0 x 1.0 mm (ID x wall)

€3.18*

Available, shipping in 1 - 2 days

Part Number: 9000.716

Size: 2.0 x 1.0 mm (ID x wall)

€3.22*

Available, shipping in 1 - 2 days

Part Number: 9000.718

Size: 3.0 x 1.0 mm (ID x wall)

€3.26*

Available, shipping in 1 - 2 days

Part Number: 9000.719

Size: 3.5 x 1.0 mm (ID x wall)

€3.31*

Available, shipping in 1 - 2 days

To order samples / small quantities, click on the above 'Purchase Configurator' link or use the 'Add to shopping cart' links below.

Innovasil Tube Lengths (x120mm)

Part Number: 9000.320

Size: 0.5 x 1.0 mm (ID x wall)

€0.64*

Available, shipping in 1 - 2 days

Part Number: 9000.321

Size: 1.0 x 1.0 mm (ID x wall)

€0.67*

Available, shipping in 1 - 2 days

Part Number: 9000.322

Size: 2.0 x 1.0 mm (ID x wall)

€0.86*

Available, shipping in 1 - 2 days

Part Number: 9000.323

Size: 3.0 x 1.0 mm (ID x wall)

€1.08*

Available, shipping in 1 - 2 days

Part Number: 9000.324

Size: 3.5 x 1.0 mm (ID x wall)

€1.12*

Available, shipping in 1 - 2 days

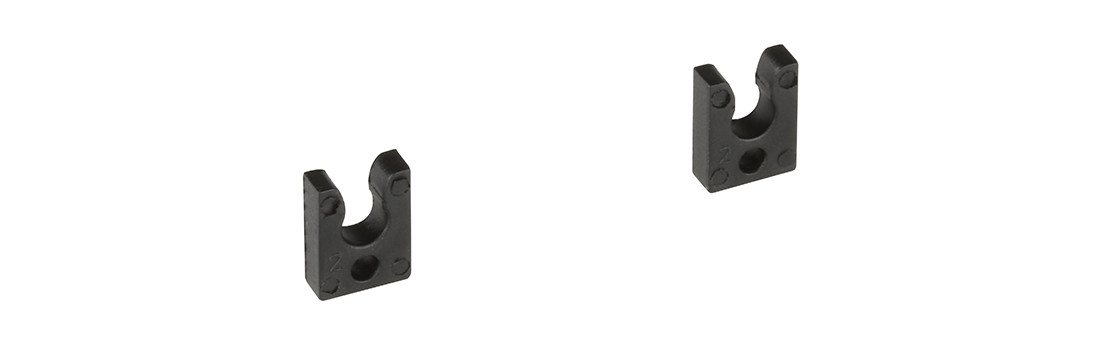

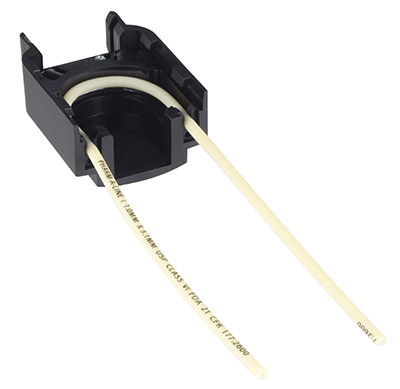

As an alternative to tube sets, the 9QQ and 9K is also designed for continuous tube. Tube clips fit inside the pump body and hold the tubing in position (see pump datasheets for additional information).

To order samples / small quantities, click on the above 'Purchase Configurator' link or use the 'Add to shopping cart' links below.

Part Number: 9000.601

Tube clip for 0.5* and 1mm ID, set of 2

€1.19*

Available, shipping in 1 - 2 days

Part Number: 9000.616

Tube clip for 1mm ID 2 channel, set of 2

€1.19*

Available, shipping in 1 - 2 days

Part Number: 9000.602

Tube clip for 2mm ID, set of 2

€1.19*

Available, shipping in 1 - 2 days

Part Number: 9000.603

Tube clip for 3mm ID, set of 2

€1.19*

Available, shipping in 1 - 2 days

*Note: 0.5mm tubing requires additional external fixation to prevent it being pulled into the pump head

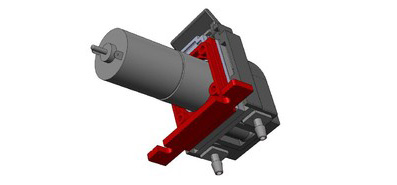

Mounting bracket suitable for of all DC models of 9QX, 9QQ and 9K. Supplied with 4 screws.

To order samples / small quantities, click on the above 'Purchase Configurator' link or use the 'Add to shopping cart' links below.

Supplied with 4 self tapping screws to mount onto pump body.

Part Number: 9000.613

€6.83*

Available, shipping in 1 - 2 days

All data is representative for selection purposes, however does not indicate maximum or minimum values. These products are sold as components which are to be incorporated into a device. It is the responsibility of the manufacturer of the device to determined the suitability of the pump for the application and to ensure compliance will all applicable approvals and regulations. These products are not suitable for in-vivo applications.
