9K Series

The 9K series is a unique, cost effective and extremely versatile miniature peristaltic pump range designed for accurate dispensing of liquids.

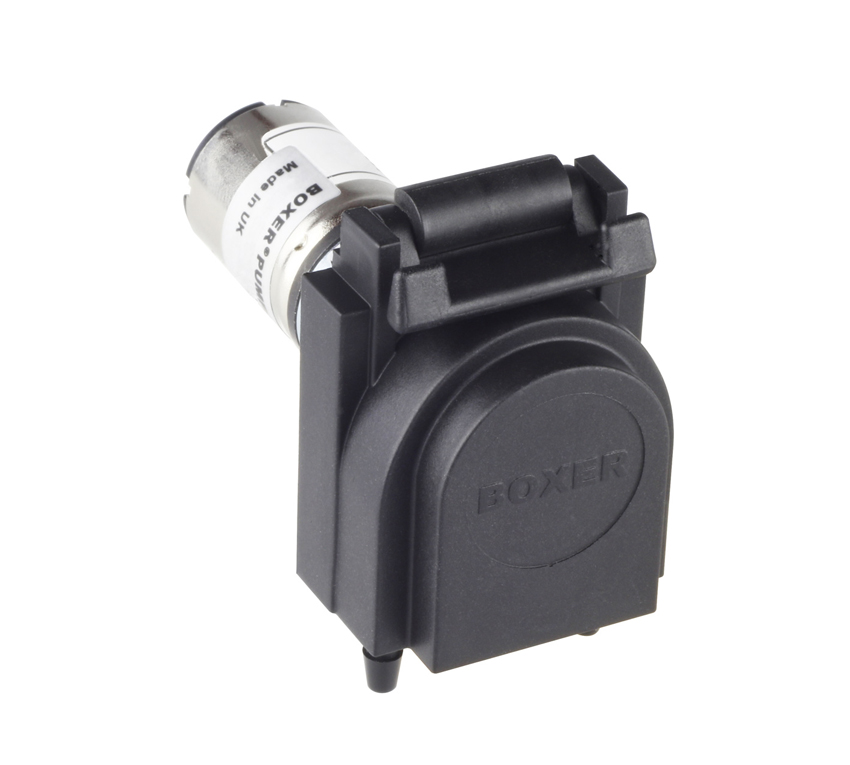

DC / Gear motor versions offer a range of 33 to 520 rpm with optional shaft encoder providing accurate feedback of rotor speed.

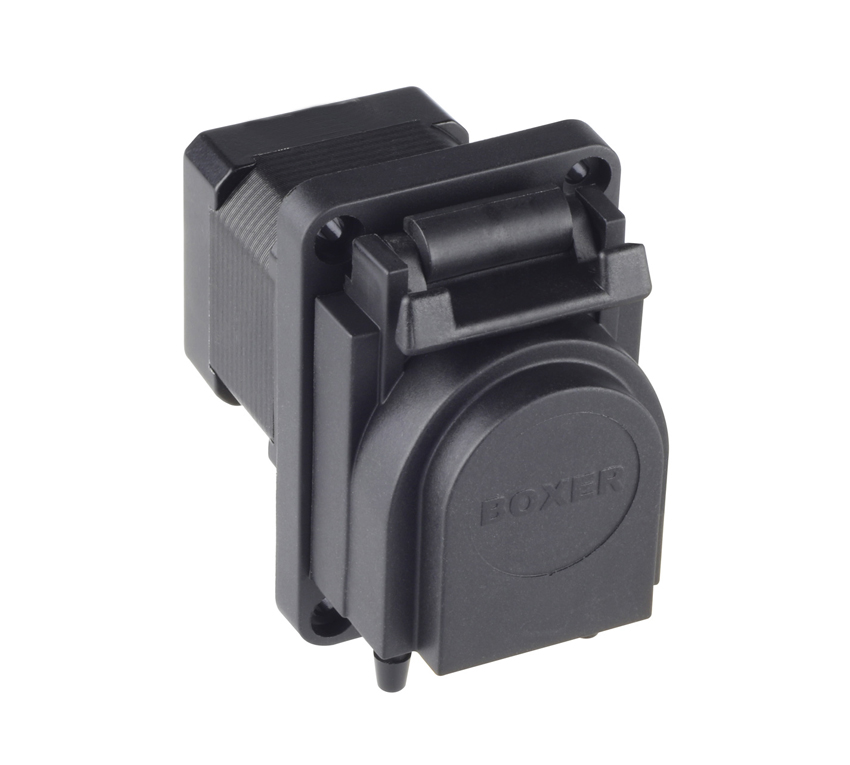

Stepper motor versions offer the versatility of finite speed control. 3 supporting driver options are vailable.

› Flow rates from 1.4 ml/min (or lower using stepper motor) to 200 ml/min
› Continuous tube or tube sets
› Easy tube change
› 4 different tube sizes
› 4 different tube materials
› 2 channels available for 1 mm tubes
› 3 different roller configurations

Tubing / tube clips must always be ordered separately.

The 9K precedes the 9QQ series. For new applications refer to 9QQ.

Flow control of the DC / Gear motor versions is available in combination with PWM Flow Controller.

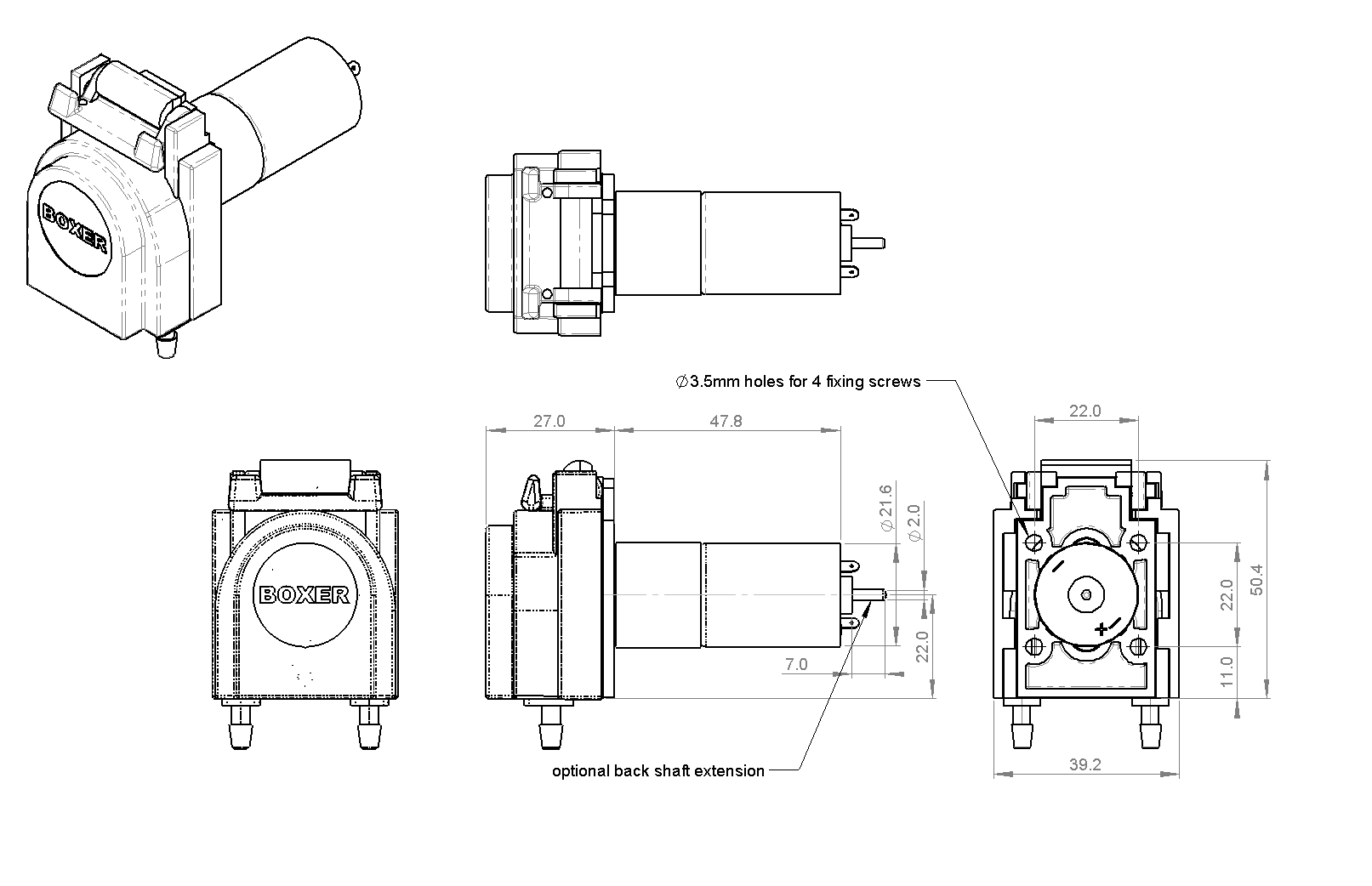

Economic and versatile available in 12 and 24 V.

Flow Data
ID Ø 1.0 mm tube	48 / 45 / 35 µl per revolution (3 / 4 / 6 Roller)
ID Ø 2.0 mm tube	160 / 148 / 106 µl per revolution (3 / 4 / 6 Roller)
ID Ø 3.0 mm tube	345 / 295 / 173 µl per revolution (3 / 4 / 6 Roller)
ID Ø 3.5 mm tube	381 / 325 / 191 µl per revolution (3 / 4 / 6 Roller)

RPM (at nominal voltage)
12 V	116 / 315 / 520
24 V	33 / 107 / 315 / 520

Power Consumption	3.5 to 9.5 W

Tube Materials	Pharm-a-line / Silicone / Lagoprene / ED-Plex

Tube Connectors
ID Ø 1.0 mm tube (internal)	1.5 to 2.0 mm* (external)
ID Ø 2.0 mm tube (internal)	2.0 to 2.5 mm* (external)
ID Ø 3.0 mm tube (internal)	3.0 to 3.5 mm* (external)
ID Ø 3.5 mm tube (internal)	3.0 to 3.5 mm* (external)
	*depends on tube material being used
	Further information ⇒ Accessories

Max pressure	1 bar
Max vacuum	-950 mbar
DC motor life	>2000 hour
Weight	125 g
Optional encoder	10 pulses per motor revolution (associated rotor speed depends in gear ratio)

All data measured with 'run-in' Pharm-a-line continuous tubing and H2O.

To order samples / small quantities, click on the above 'Purchase Configurator' link or use the 'Add to shopping cart' links below.

Part Number: 9010.000

Motor / Voltage: DC / Gear Motor 12 V, 116 rpm, 3 Roller

Part Number: 9022.000

Motor / Voltage: DC / Gear Motor 12 V, 315 rpm, 3 Roller

Part Number: 9007.000

Motor / Voltage: DC / Gear Motor 12 V, 520 rpm, 3 Roller

Part Number: 9016.000

Motor / Voltage: DC / Gear Motor 24 V, 33 rpm, 3 Roller

Part Number: 9012.000

Motor / Voltage: DC / Gear Motor 24 V, 107 rpm, 3 Roller

Part Number: 9008.000

Motor / Voltage: DC / Gear Motor 24 V, 315 rpm, 3 Roller

Part Number: 9015.000

Motor / Voltage: DC / Gear Motor 24 V, 520 rpm, 3 Roller

Accessories

9K / 9QQ tube set: Innovaprene with PP connectors

Part Number: 9000.761

Packaging Unit (Singles or Packs of 5): Single | Tube Set: 0.5 mm ID Tubing (PP connector for 1 mm ID customer side)

€10.04*

Available, shipping in 1 - 2 days

9K / 9QQ tube set: Innovaprene with PP connectors

Part Number: 9000.762

Packaging Unit (Singles or Packs of 5): Single | Tube Set: 1 mm ID Tubing (PP connector for 1 mm ID customer side)

€10.04*

Available, shipping in 1 - 2 days

9K / 9QQ tube set: Innovaprene with PP connectors

Part Number: 9000.763

Packaging Unit (Singles or Packs of 5): Single | Tube Set: 1 mm ID Tubing (PP connector for 2 mm ID customer side)

€10.04*

Available, shipping in 1 - 2 days

9K / 9QQ tube set: Innovaprene with PP connectors

Part Number: 9000.764

Packaging Unit (Singles or Packs of 5): Single | Tube Set: 2 mm ID Tubing (PP connector for 2 mm ID customer side)

€10.04*

Available, shipping in 1 - 2 days

9K / 9QQ tube set: Innovaprene with PP connectors

Part Number: 9000.765

Packaging Unit (Singles or Packs of 5): Single | Tube Set: 3 mm ID Tubing (PP connector for 3 mm ID customer side)

€10.04*

Available, shipping in 1 - 2 days

9K / 9QQ tube set: Innovasil with PP connectors

Part Number: 9000.300

Packaging Unit (Singles or Packs of 5): Single | Tube Set: 0.5 mm ID Tubing (PP connector for 1 mm ID customer side)

€7.54*

Available, shipping in 1 - 2 days

9K / 9QQ tube set: Innovasil with PP connectors

Part Number: 9000.301

Packaging Unit (Singles or Packs of 5): Single | Tube Set: 1 mm ID Tubing (PP connector for 1 mm ID customer side)

€7.54*

Available, shipping in 1 - 2 days

9K / 9QQ tube set: Innovasil with PP connectors

Part Number: 9000.302

Packaging Unit (Singles or Packs of 5): Single | Tube Set: 1 mm ID Tubing (PP connector for 2 mm ID customer side)

€7.54*

Available, shipping in 1 - 2 days

9K / 9QQ tube set: Innovasil with PP connectors

Part Number: 9000.303

Packaging Unit (Singles or Packs of 5): Single | Tube Set: 2 mm ID Tubing (PP connector for 2 mm ID customer side)

€7.54*

Available, shipping in 1 - 2 days

9K / 9QQ tube set: Innovasil with PP connectors

Part Number: 9000.304

Packaging Unit (Singles or Packs of 5): Single | Tube Set: 3 mm ID Tubing (PP connector for 3 mm ID customer side)

€7.54*

Available, shipping in 1 - 2 days

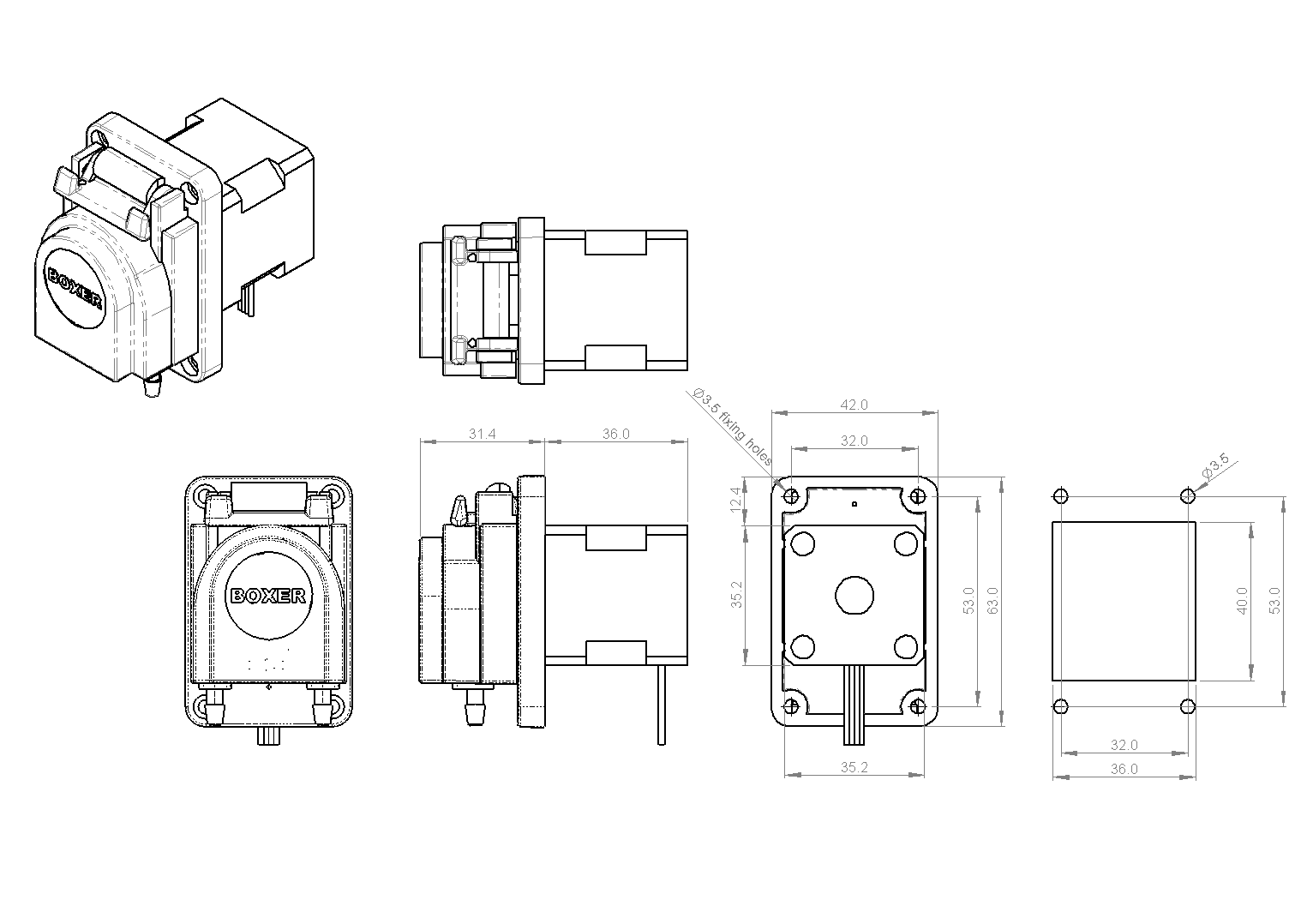

Excellent dosing control available in 24 V.

Flow Data
ID Ø 1.0 mm tube	48 / 45 / 35 µl per revolution (3 / 4 / 6 Roller)
ID Ø 2.0 mm tube	160 / 148 / 106 µl per revolution (3 / 4 / 6 Roller)
ID Ø 3.0 mm tube	345 / 295 / 173 µl per revolution (3 / 4 / 6 Roller)
ID Ø 3.5 mm tube	381 / 325 / 191 µl per revolution (3 / 4 / 6 Roller)

RPM	0 to 500 rpm
	(higher speeds possible depending upon tube material, tube ID, number of rollers and driving method)

Tube Materials	Pharm-a-line / Silicone / Lagoprene / ED-Plex

Tube Connectors
ID Ø 1.0 mm tube (internal)	1.5 to 2.0 mm* (external)
ID Ø 2.0 mm tube (internal)	2.0 to 2.5 mm* (external)
ID Ø 3.0 mm tube (internal)	3.0 to 3.5 mm* (external)
ID Ø 3.5 mm tube (internal)	3.0 to 3.5 mm* (external)
	*depends on tube material being used
	Further information ⇒ Accessories

Max pressure	1 bar
Max vacuum	-950 mbar
Motor life	>10000 hour
Weight	230 g

All data measured with 'run-in' Pharm-a-line continuous tubing and H2O.

To order samples / small quantities, click on the above 'Purchase Configurator' link or use the 'Add to shopping cart' links below.

Part Number: 9600.003

Motor / Voltage: Stepper 24 V - 3 Roller

€108.94*

Available, shipping in 1 - 2 days

Part Number: 9600.004

Motor / Voltage: Stepper 24 V - 4 Roller

Part Number: 9600.006

Motor / Voltage: Stepper 24 V - 6 Roller

Accessories

9K / 9QQ tube set: Innovaprene with PP connectors

Part Number: 9000.761

Packaging Unit (Singles or Packs of 5): Single | Tube Set: 0.5 mm ID Tubing (PP connector for 1 mm ID customer side)

€10.04*

Available, shipping in 1 - 2 days

9K / 9QQ tube set: Innovaprene with PP connectors

Part Number: 9000.762

Packaging Unit (Singles or Packs of 5): Single | Tube Set: 1 mm ID Tubing (PP connector for 1 mm ID customer side)

€10.04*

Available, shipping in 1 - 2 days

9K / 9QQ tube set: Innovaprene with PP connectors

Part Number: 9000.763

Packaging Unit (Singles or Packs of 5): Single | Tube Set: 1 mm ID Tubing (PP connector for 2 mm ID customer side)

€10.04*

Available, shipping in 1 - 2 days

9K / 9QQ tube set: Innovaprene with PP connectors

Part Number: 9000.764

Packaging Unit (Singles or Packs of 5): Single | Tube Set: 2 mm ID Tubing (PP connector for 2 mm ID customer side)

€10.04*

Available, shipping in 1 - 2 days

9K / 9QQ tube set: Innovaprene with PP connectors

Part Number: 9000.765

Packaging Unit (Singles or Packs of 5): Single | Tube Set: 3 mm ID Tubing (PP connector for 3 mm ID customer side)

€10.04*

Available, shipping in 1 - 2 days

9K / 9QQ tube set: Innovasil with PP connectors

Part Number: 9000.300

Packaging Unit (Singles or Packs of 5): Single | Tube Set: 0.5 mm ID Tubing (PP connector for 1 mm ID customer side)

€7.54*

Available, shipping in 1 - 2 days

9K / 9QQ tube set: Innovasil with PP connectors

Part Number: 9000.301

Packaging Unit (Singles or Packs of 5): Single | Tube Set: 1 mm ID Tubing (PP connector for 1 mm ID customer side)

€7.54*

Available, shipping in 1 - 2 days

9K / 9QQ tube set: Innovasil with PP connectors

Part Number: 9000.302

Packaging Unit (Singles or Packs of 5): Single | Tube Set: 1 mm ID Tubing (PP connector for 2 mm ID customer side)

€7.54*

Available, shipping in 1 - 2 days

9K / 9QQ tube set: Innovasil with PP connectors

Part Number: 9000.303

Packaging Unit (Singles or Packs of 5): Single | Tube Set: 2 mm ID Tubing (PP connector for 2 mm ID customer side)

€7.54*

Available, shipping in 1 - 2 days

9K / 9QQ tube set: Innovasil with PP connectors

Part Number: 9000.304

Packaging Unit (Singles or Packs of 5): Single | Tube Set: 3 mm ID Tubing (PP connector for 3 mm ID customer side)

€7.54*

Available, shipping in 1 - 2 days

Additional Accessories

Potentiometer 10 turn with wires

€25.45*

Details

Silicone (1.0 mm wall)

€15.61*

Details

9K / 9QQ tube set: Innovasil with PP connectors

€7.54*

Details

PWM Flow Controller

€65.05*

Details

25K Lever (spare part)

€9.90*

Details

Tube Fittings

€0.52*

Details

Innovasil (1.0 mm wall)

€3.61*

Details

Stepper Driver - 2A

€115.42*

Details

9K / 9QQ tube set: Innovasil with PP connectors

€7.54*

Details

ED-Plex (1.0 mm wall)

€17.87*

Details

Lagoprene (1.0 mm wall)

€14.30*

Details

9K / 9QQ tube set: Lagoprene with PP connectors

€12.55*

Details

9K / 9QQ tube set: ED-Plex with PP connectors

€13.22*

Details

All data is representative for selection purposes, however does not indicate maximum or minimum values. These products are sold as components which are to be incorporated into a device. It is the responsibility of the manufacturer of the device to determined the suitability of the pump for the application and to ensure compliance will all applicable approvals and regulations. These products are not suitable for in-vivo applications.
