6K - for 1.6mm wall tube

The second generation 6K series is a uniquely compact multichannel peristaltic pump range for accurate dispensing of liquids. The stepper motor drive offers the versatility of finite speed control and, combined with optional optical position sensors, roller position control.

The 6K peristaltic pump is designed for both 1.0 and 1.6 mm wall tubing. This product page details the 1.6 mm wall configurations. For 1.0 mm wall configuration ⇒ 6K for 1.0 mm wall tubing.

› Flow rates from 89 to 489 µl per revolution (per channel)
› Choice of 2, 4 or 6 channels
› Inlet / outlet above and below head to support compact design
› Suitable for 1.6, 2.4 and 3.2 mm ID tube
› Pharm-a-line (PHI), Norprene G or ED-Plex tubing
› 4 and 8 roller configurations
› Supplied with motor only or choice of 3 pre-assembled stepper motor drivers
› Option rotor position / speed sensor

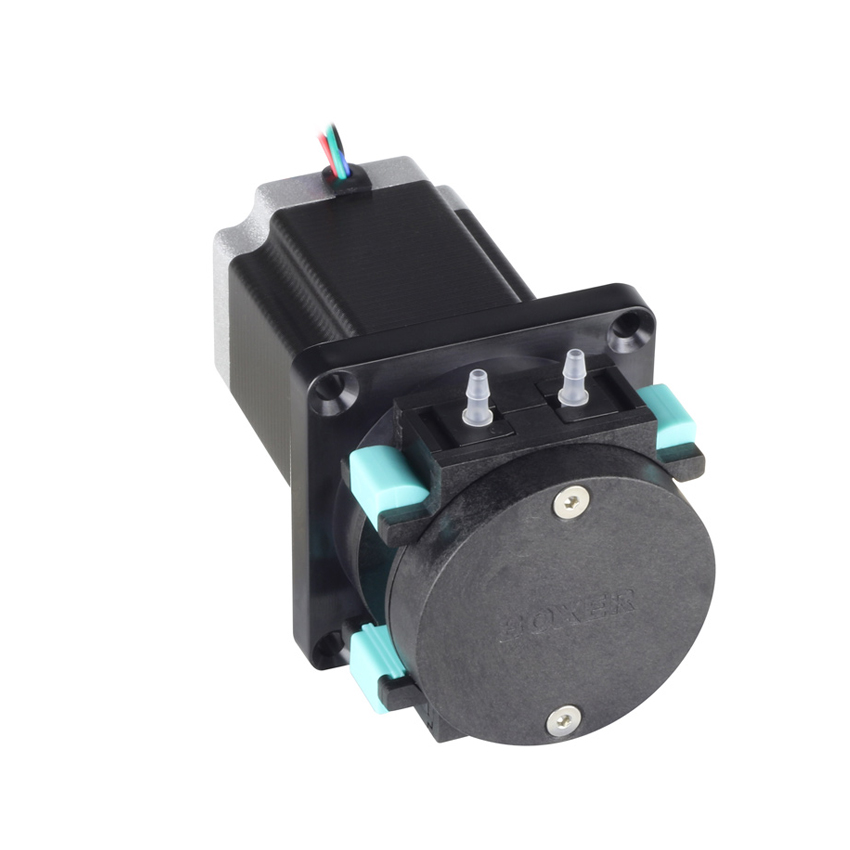

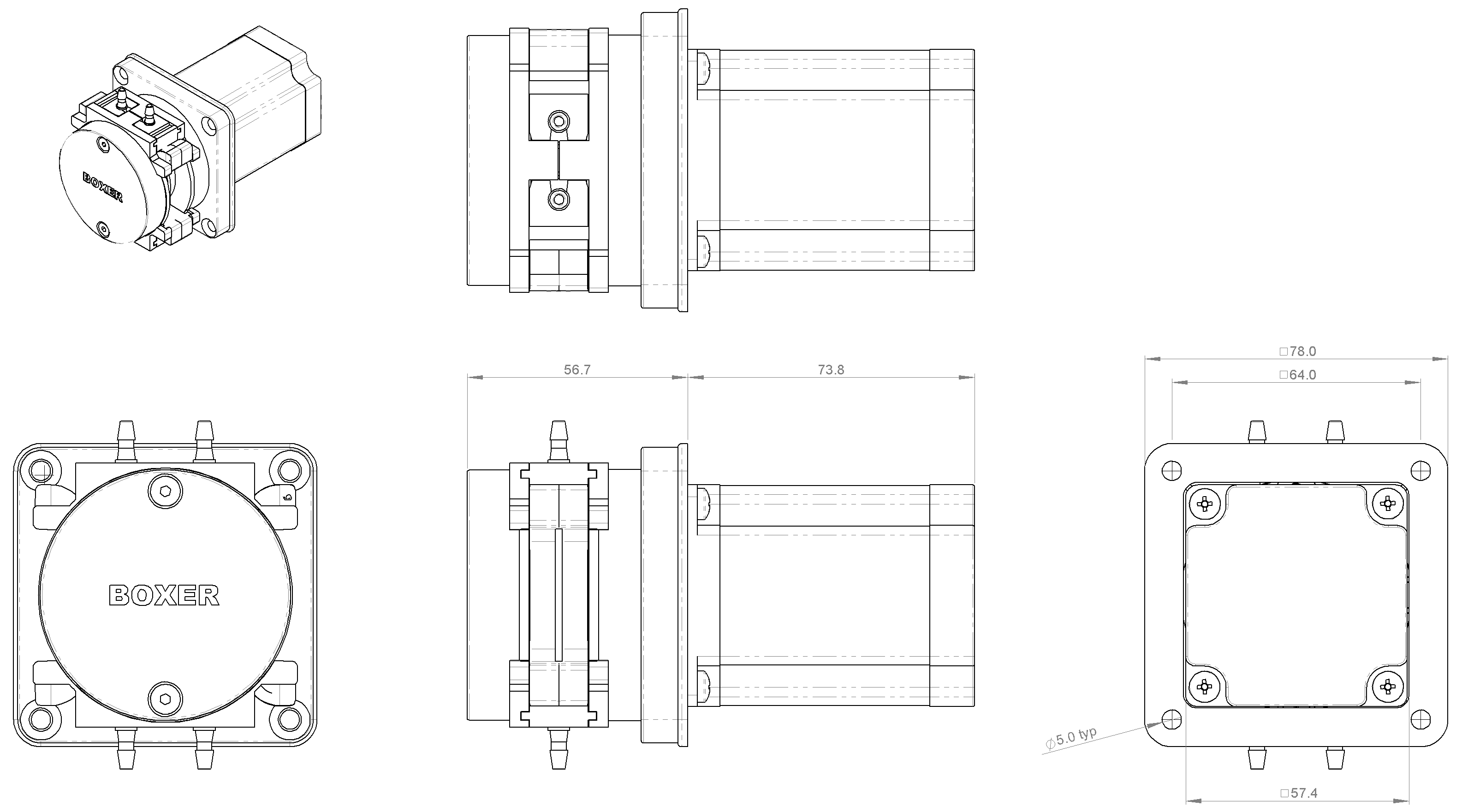

2 Channel with 24 V Stepper Motor

Flow Data per Revolution (per channel)
ID Ø 1.6 mm tube	137 / 89 µl per revolution (4 / 8 Roller)
ID Ø 2.4 mm tube	313 / 167 µl per revolution (4 / 8 Roller)
ID Ø 3.2 mm tube	489 / 214 µl per revolution (4 / 8 Roller)

Flow Data at 300 RPM (max recommended speed)
ID Ø 1.6 mm tube	41.1 / 26.7 ml / min (4 / 8 Roller)
ID Ø 2.4 mm tube	93.9 / 50.2 ml / min (4 / 8 Roller)
ID Ø 3.2 mm tube	146.7 / 64.2 ml / min (4 / 8 Roller)

Electrical Data
Power consumption (with ID Ø 3.2 mm tube and including A4 driver)	17 to 31 W
Recommended driver current setting	4.0 A
Max. starting speed (with new tubing)	100 rpm

	Full data available in PDF datasheet

To order samples / small quantities, click on the above 'Purchase Configurator' link or use the 'Add to shopping cart' links below.

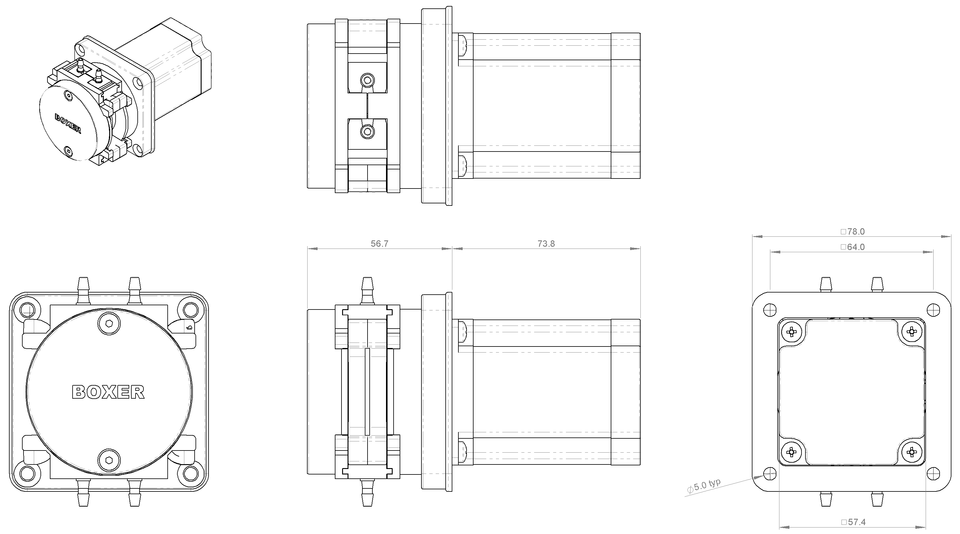

Part Number: 6341.100.

Number of Channels: 2 | Number of Rollers : 4 | Driver Options: no

€415.71*

Available, shipping in 1 - 2 days

Part Number: 6331.100.

Number of Channels: 2 | Number of Rollers : 8 | Driver Options: no

€340.09*

Available, shipping in 1 - 2 days

1 x tube set and 1 x saddle kit required per pump:

Accessories

6K tube set: Innovaprene with PP connectors, for 1.6 mm wall tubing

Part Number: 6000.615

Tube Set: 1.6 x 1.6 mm (ID x wall)

€27.94*

Available, shipping in 1 - 2 days

6K tube set: Innovaprene with PP connectors, for 1.6 mm wall tubing

Part Number: 6000.616

Tube Set: 2.4 x 1.6 mm (ID x wall)

€27.94*

Available, shipping in 1 - 2 days

6K tube set: Innovaprene with PP connectors, for 1.6 mm wall tubing

Part Number: 6000.617

Tube Set: 3.2 x 1.6 mm (ID x wall)

€27.94*

Available, shipping in 1 - 2 days

6K saddle kit for 1.6 mm wall tubing

Part Number: 6000.164

6K Saddle Kit for 1.6 mm wall tubing: for pumps with 4 rollers

€5.01*

Available, shipping in 1 - 2 days

6K saddle kit for 1.6 mm wall tubing

Part Number: 6000.168

6K Saddle Kit for 1.6 mm wall tubing: for pumps with 8 rollers

€5.00*

Available, shipping in 1 - 2 days

To order samples / small quantities, click on the above 'Purchase Configurator' link or use the 'Add to shopping cart' links below.

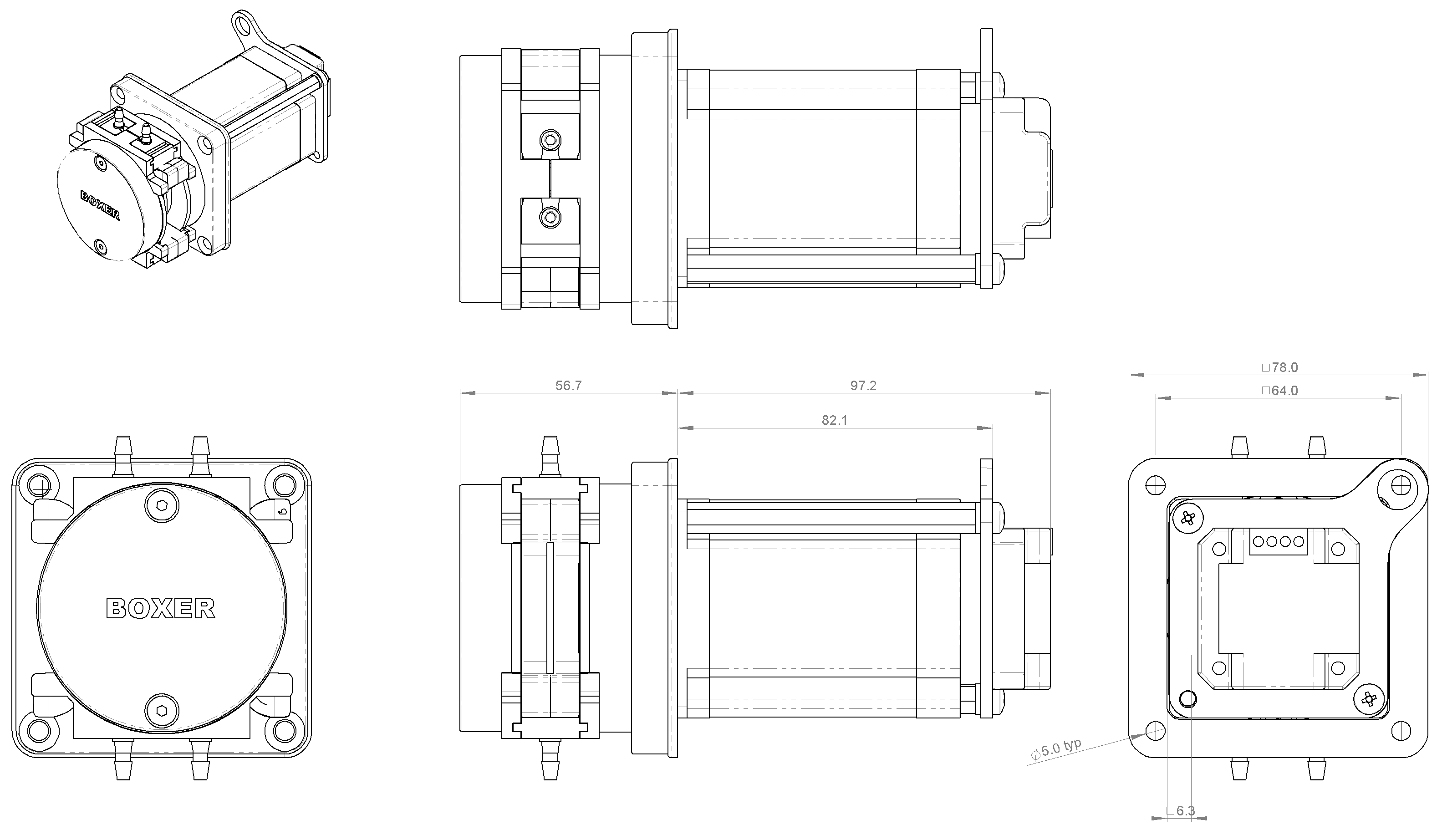

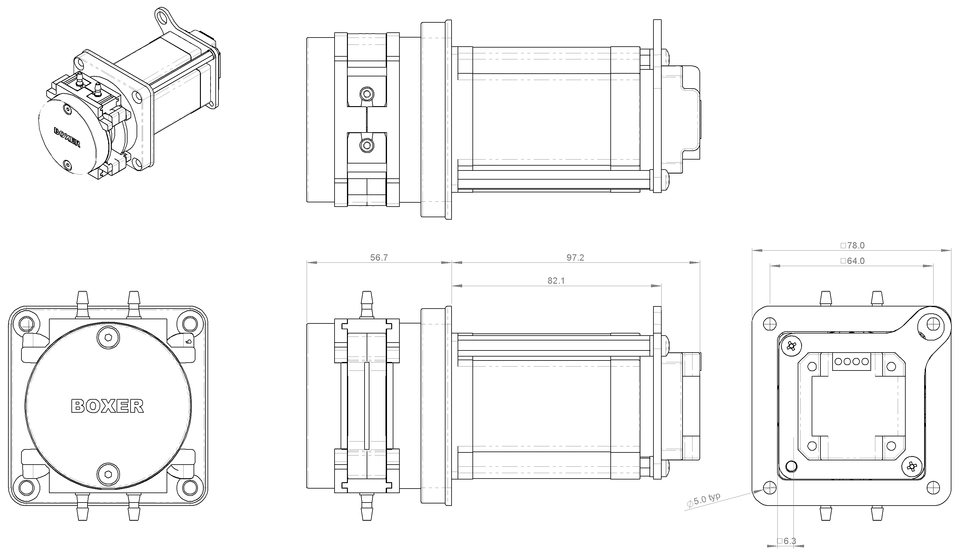

Part Number: 6341.101.

Number of Channels: 2 | Number of Rollers : 4 | Driver Options: A4

€472.02*

Available, shipping in 1 - 2 days

Part Number: 6331.101.

Number of Channels: 2 | Number of Rollers : 8 | Driver Options: A4

€478.75*

Available, shipping in 1 - 2 days

1 x tube set and 1 x saddle kit required per pump:

Accessories

6K tube set: Innovaprene with PP connectors, for 1.6 mm wall tubing

Part Number: 6000.615

Tube Set: 1.6 x 1.6 mm (ID x wall)

€27.94*

Available, shipping in 1 - 2 days

6K tube set: Innovaprene with PP connectors, for 1.6 mm wall tubing

Part Number: 6000.616

Tube Set: 2.4 x 1.6 mm (ID x wall)

€27.94*

Available, shipping in 1 - 2 days

6K tube set: Innovaprene with PP connectors, for 1.6 mm wall tubing

Part Number: 6000.617

Tube Set: 3.2 x 1.6 mm (ID x wall)

€27.94*

Available, shipping in 1 - 2 days

6K saddle kit for 1.6 mm wall tubing

Part Number: 6000.164

6K Saddle Kit for 1.6 mm wall tubing: for pumps with 4 rollers

€5.01*

Available, shipping in 1 - 2 days

6K saddle kit for 1.6 mm wall tubing

Part Number: 6000.168

6K Saddle Kit for 1.6 mm wall tubing: for pumps with 8 rollers

€5.00*

Available, shipping in 1 - 2 days

To order samples / small quantities, click on the above 'Purchase Configurator' link or use the 'Add to shopping cart' links below.

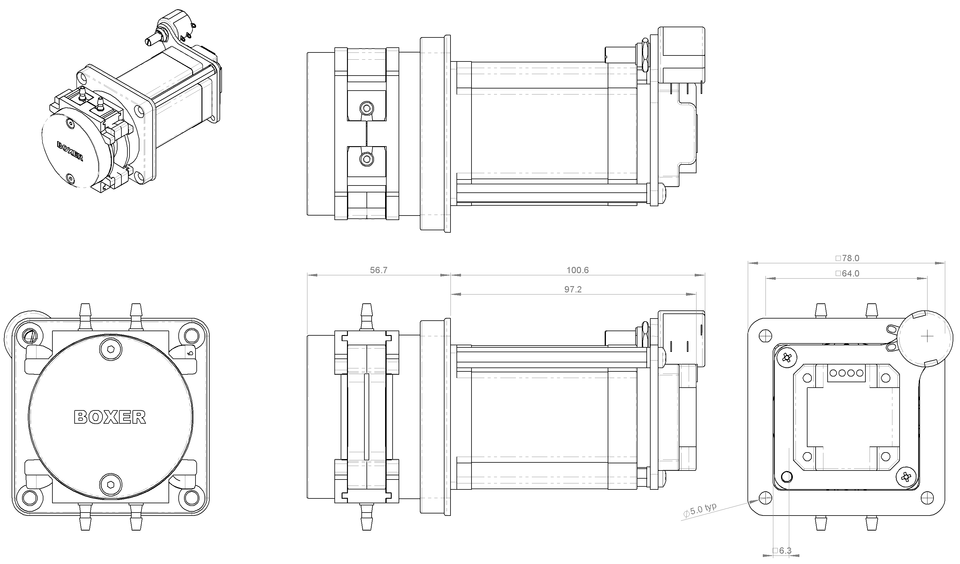

Part Number: 6341.151.

Number of Channels: 2 | Number of Rollers : 4 | Driver Options: A4p

€498.00*

Available, shipping in 1 - 2 days

Part Number: 6331.151.

Number of Channels: 2 | Number of Rollers : 8 | Driver Options: A4p

€504.74*

Available, shipping in 1 - 2 days

1 x tube set and 1 x saddle kit required per pump:

Accessories

6K tube set: Innovaprene with PP connectors, for 1.6 mm wall tubing

Part Number: 6000.615

Tube Set: 1.6 x 1.6 mm (ID x wall)

€27.94*

Available, shipping in 1 - 2 days

6K tube set: Innovaprene with PP connectors, for 1.6 mm wall tubing

Part Number: 6000.616

Tube Set: 2.4 x 1.6 mm (ID x wall)

€27.94*

Available, shipping in 1 - 2 days

6K tube set: Innovaprene with PP connectors, for 1.6 mm wall tubing

Part Number: 6000.617

Tube Set: 3.2 x 1.6 mm (ID x wall)

€27.94*

Available, shipping in 1 - 2 days

6K saddle kit for 1.6 mm wall tubing

Part Number: 6000.164

6K Saddle Kit for 1.6 mm wall tubing: for pumps with 4 rollers

€5.01*

Available, shipping in 1 - 2 days

6K saddle kit for 1.6 mm wall tubing

Part Number: 6000.168

6K Saddle Kit for 1.6 mm wall tubing: for pumps with 8 rollers

€5.00*

Available, shipping in 1 - 2 days

To order samples / small quantities, click on the above 'Purchase Configurator' link or use the 'Add to shopping cart' links below.

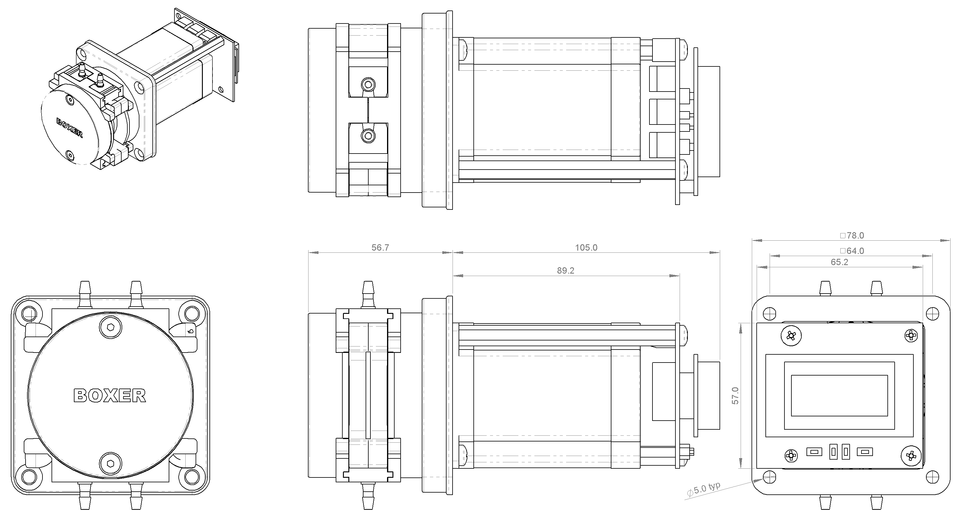

Part Number: 6341.105.

Number of Channels: 2 | Number of Rollers : 4 | Driver Options: iD

€541.29*

Available, shipping in 1 - 2 days

Part Number: 6331.105.

Number of Channels: 2 | Number of Rollers : 8 | Driver Options: iD

€548.03*

Available, shipping in 1 - 2 days

1 x tube set and 1 x saddle kit required per pump:

Accessories

6K tube set: Innovaprene with PP connectors, for 1.6 mm wall tubing

Part Number: 6000.615

Tube Set: 1.6 x 1.6 mm (ID x wall)

€27.94*

Available, shipping in 1 - 2 days

6K tube set: Innovaprene with PP connectors, for 1.6 mm wall tubing

Part Number: 6000.616

Tube Set: 2.4 x 1.6 mm (ID x wall)

€27.94*

Available, shipping in 1 - 2 days

6K tube set: Innovaprene with PP connectors, for 1.6 mm wall tubing

Part Number: 6000.617

Tube Set: 3.2 x 1.6 mm (ID x wall)

€27.94*

Available, shipping in 1 - 2 days

6K saddle kit for 1.6 mm wall tubing

Part Number: 6000.164

6K Saddle Kit for 1.6 mm wall tubing: for pumps with 4 rollers

€5.01*

Available, shipping in 1 - 2 days

6K saddle kit for 1.6 mm wall tubing

Part Number: 6000.168

6K Saddle Kit for 1.6 mm wall tubing: for pumps with 8 rollers

€5.00*

Available, shipping in 1 - 2 days

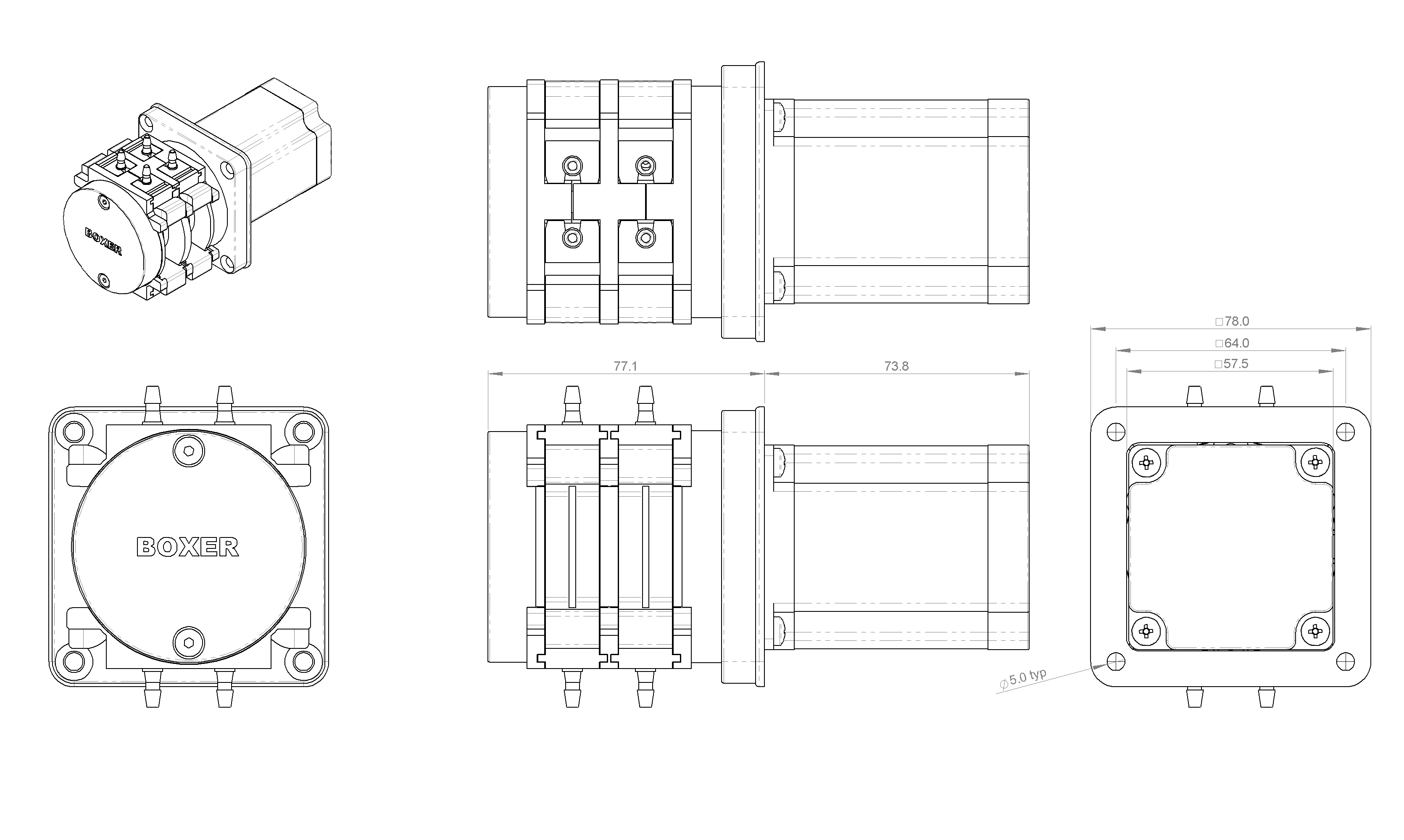

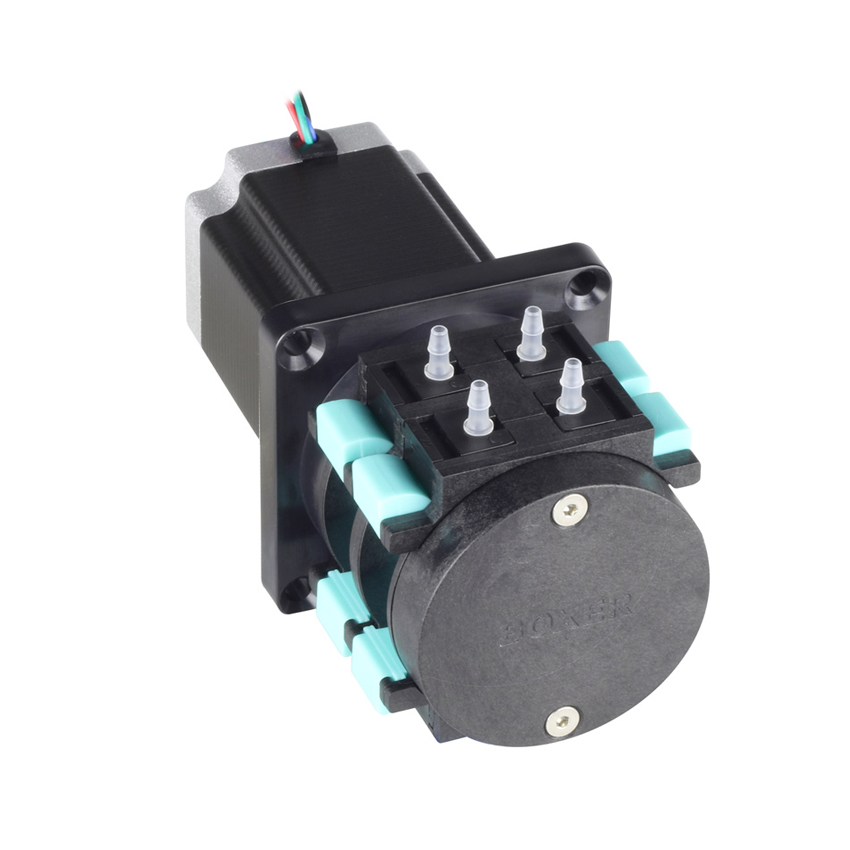

4 Channel with 24 V Stepper Motor

Flow Data per Revolution (per channel)
ID Ø 1.6 mm tube	137 / 89 µl per revolution (4 / 8 Roller)
ID Ø 2.4 mm tube	313 / 167 µl per revolution (4 / 8 Roller)
ID Ø 3.2 mm tube	489 / 214 µl per revolution (4 / 8 Roller)

Flow Data at 300 RPM (max recommended speed)
ID Ø 1.6 mm tube	41.1 / 26.7 ml / min (4 / 8 Roller)
ID Ø 2.4 mm tube	93.9 / 50.2 ml / min (4 / 8 Roller)
ID Ø 3.2 mm tube	146.7 / 64.2 ml / min (4 / 8 Roller)

Electrical Data
Power consumption (with ID Ø 3.2 mm tube and including A4 driver)	22 to 32 W
Recommended driver current setting	4.0 A
Max. starting speed (with new tubing)	100 rpm

To order samples / small quantities, click on the above 'Purchase Configurator' link or use the 'Add to shopping cart' links below.

Part Number: 6342.100.

Number of Channels: 4 | Number of Rollers : 4 | Driver Options: no

€367.38*

Available, shipping in 1 - 2 days

Part Number: 6332.100.

Number of Channels: 4 | Number of Rollers : 8 | Driver Options: no

€374.12*

Available, shipping in 1 - 2 days

2 x tube sets and 2 x saddle kits required per pump:

Accessories

6K tube set: Innovaprene with PP connectors, for 1.6 mm wall tubing

Part Number: 6000.615

Tube Set: 1.6 x 1.6 mm (ID x wall)

€27.94*

Available, shipping in 1 - 2 days

6K tube set: Innovaprene with PP connectors, for 1.6 mm wall tubing

Part Number: 6000.616

Tube Set: 2.4 x 1.6 mm (ID x wall)

€27.94*

Available, shipping in 1 - 2 days

6K tube set: Innovaprene with PP connectors, for 1.6 mm wall tubing

Part Number: 6000.617

Tube Set: 3.2 x 1.6 mm (ID x wall)

€27.94*

Available, shipping in 1 - 2 days

6K saddle kit for 1.6 mm wall tubing

Part Number: 6000.164

6K Saddle Kit for 1.6 mm wall tubing: for pumps with 4 rollers

€5.01*

Available, shipping in 1 - 2 days

6K saddle kit for 1.6 mm wall tubing

Part Number: 6000.168

6K Saddle Kit for 1.6 mm wall tubing: for pumps with 8 rollers

€5.00*

Available, shipping in 1 - 2 days

To order samples / small quantities, click on the above 'Purchase Configurator' link or use the 'Add to shopping cart' links below.

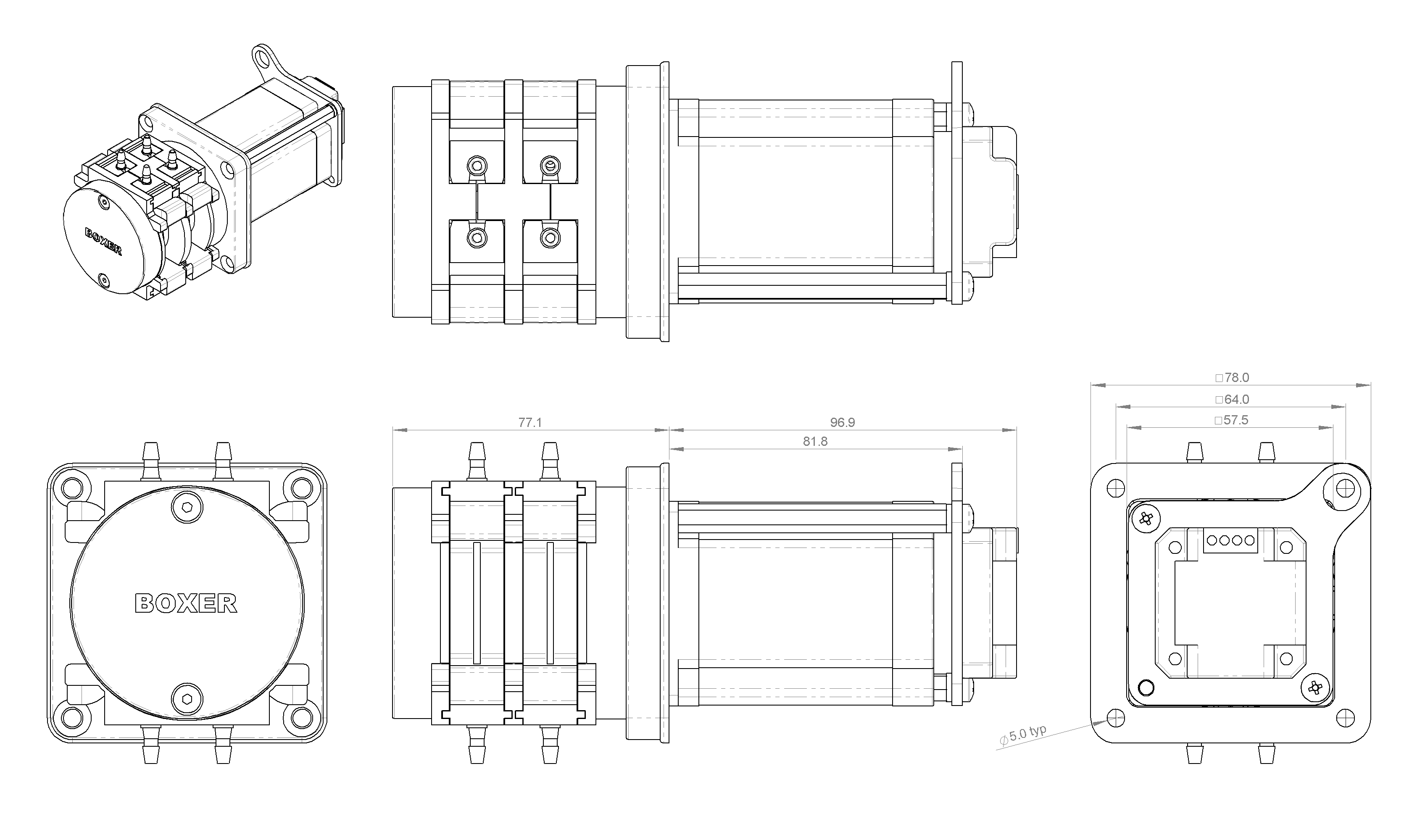

Part Number: 6342.101.

Number of Channels: 4 | Number of Rollers : 4 | Driver Options: A4

€506.04*

Available, shipping in 1 - 2 days

Part Number: 6332.101.

Number of Channels: 4 | Number of Rollers : 8 | Driver Options: A4

€512.78*

Available, shipping in 1 - 2 days

2 x tube sets and 2 x saddle kits required per pump:

Accessories

6K tube set: Innovaprene with PP connectors, for 1.6 mm wall tubing

Part Number: 6000.615

Tube Set: 1.6 x 1.6 mm (ID x wall)

€27.94*

Available, shipping in 1 - 2 days

6K tube set: Innovaprene with PP connectors, for 1.6 mm wall tubing

Part Number: 6000.616

Tube Set: 2.4 x 1.6 mm (ID x wall)

€27.94*

Available, shipping in 1 - 2 days

6K tube set: Innovaprene with PP connectors, for 1.6 mm wall tubing

Part Number: 6000.617

Tube Set: 3.2 x 1.6 mm (ID x wall)

€27.94*

Available, shipping in 1 - 2 days

6K saddle kit for 1.6 mm wall tubing

Part Number: 6000.164

6K Saddle Kit for 1.6 mm wall tubing: for pumps with 4 rollers

€5.01*

Available, shipping in 1 - 2 days

6K saddle kit for 1.6 mm wall tubing

Part Number: 6000.168

6K Saddle Kit for 1.6 mm wall tubing: for pumps with 8 rollers

€5.00*

Available, shipping in 1 - 2 days

To order samples / small quantities, click on the above 'Purchase Configurator' link or use the 'Add to shopping cart' links below.

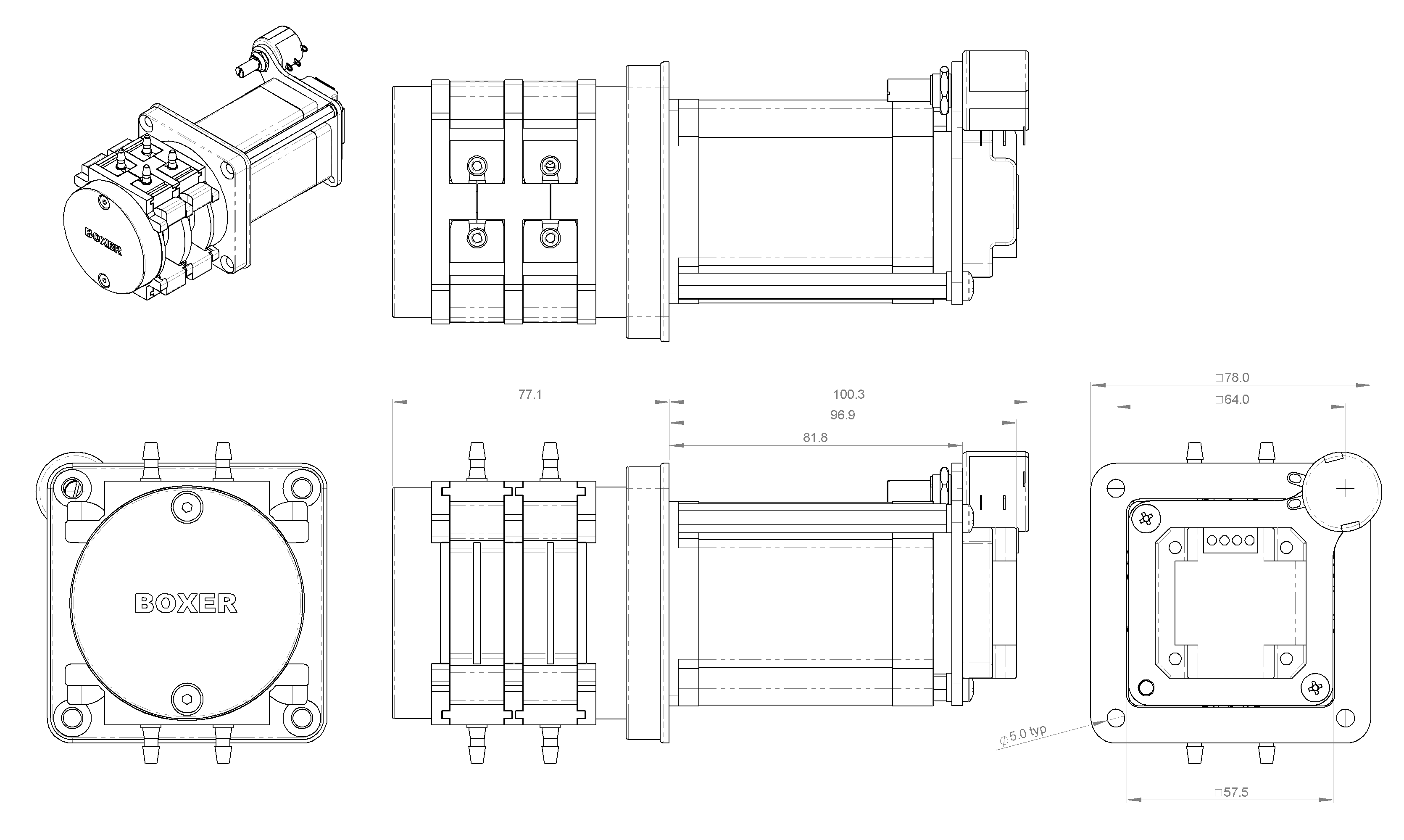

Part Number: 6342.151.

Number of Channels: 4 | Number of Rollers : 4 | Driver Options: A4p

€532.61*

Available, shipping in 1 - 2 days

Part Number: 6332.151.

Number of Channels: 4 | Number of Rollers : 8 | Driver Options: A4p

€538.78*

Available, shipping in 1 - 2 days

2 x tube sets and 2 x saddle kits required per pump:

Accessories

6K tube set: Innovaprene with PP connectors, for 1.6 mm wall tubing

Part Number: 6000.615

Tube Set: 1.6 x 1.6 mm (ID x wall)

€27.94*

Available, shipping in 1 - 2 days

6K tube set: Innovaprene with PP connectors, for 1.6 mm wall tubing

Part Number: 6000.616

Tube Set: 2.4 x 1.6 mm (ID x wall)

€27.94*

Available, shipping in 1 - 2 days

6K tube set: Innovaprene with PP connectors, for 1.6 mm wall tubing

Part Number: 6000.617

Tube Set: 3.2 x 1.6 mm (ID x wall)

€27.94*

Available, shipping in 1 - 2 days

6K saddle kit for 1.6 mm wall tubing

Part Number: 6000.164

6K Saddle Kit for 1.6 mm wall tubing: for pumps with 4 rollers

€5.01*

Available, shipping in 1 - 2 days

6K saddle kit for 1.6 mm wall tubing

Part Number: 6000.168

6K Saddle Kit for 1.6 mm wall tubing: for pumps with 8 rollers

€5.00*

Available, shipping in 1 - 2 days

To order samples / small quantities, click on the above 'Purchase Configurator' link or use the 'Add to shopping cart' links below.

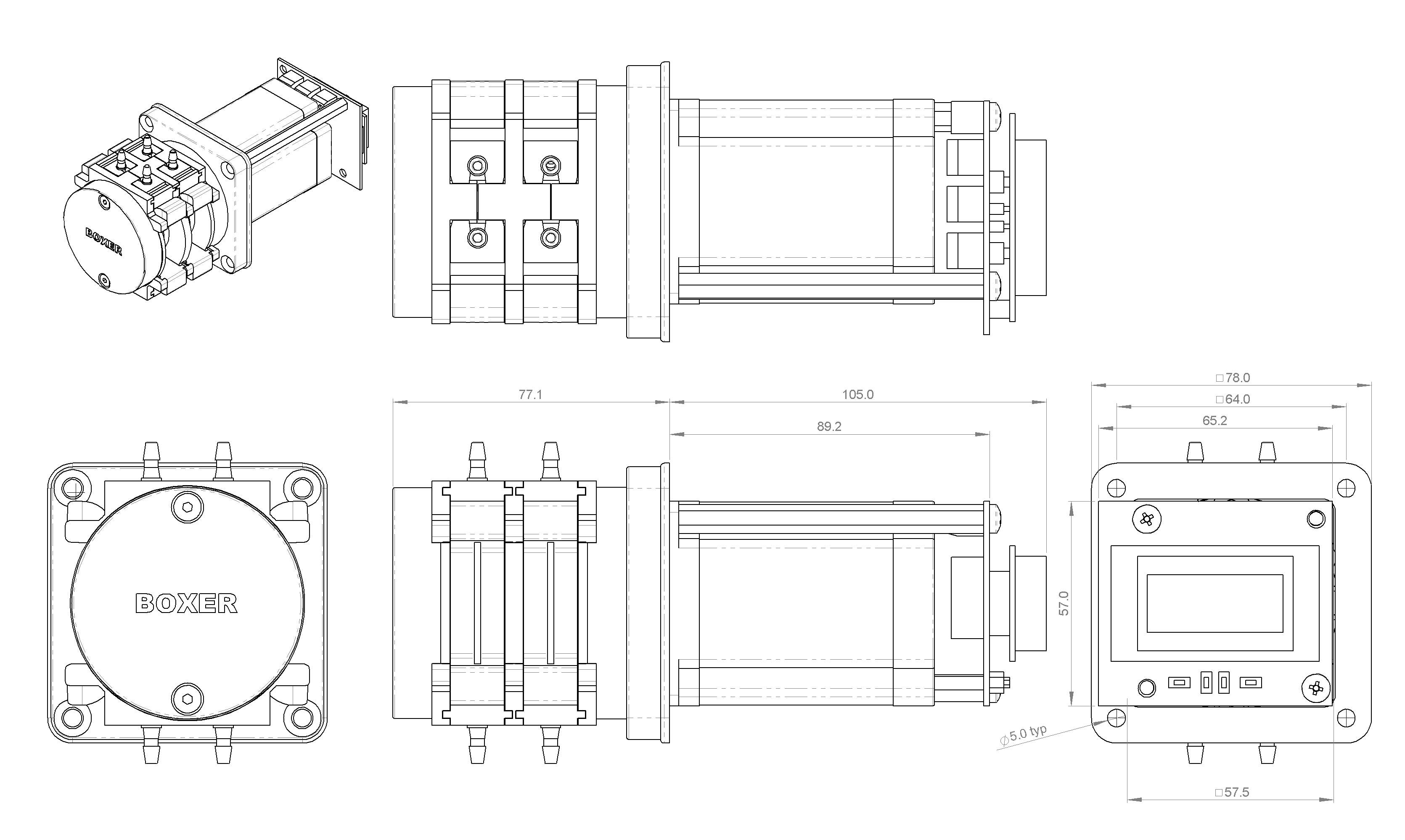

Part Number: 6342.105.

Number of Channels: 4 | Number of Rollers : 4 | Driver Options: iD

€575.31*

Available, shipping in 1 - 2 days

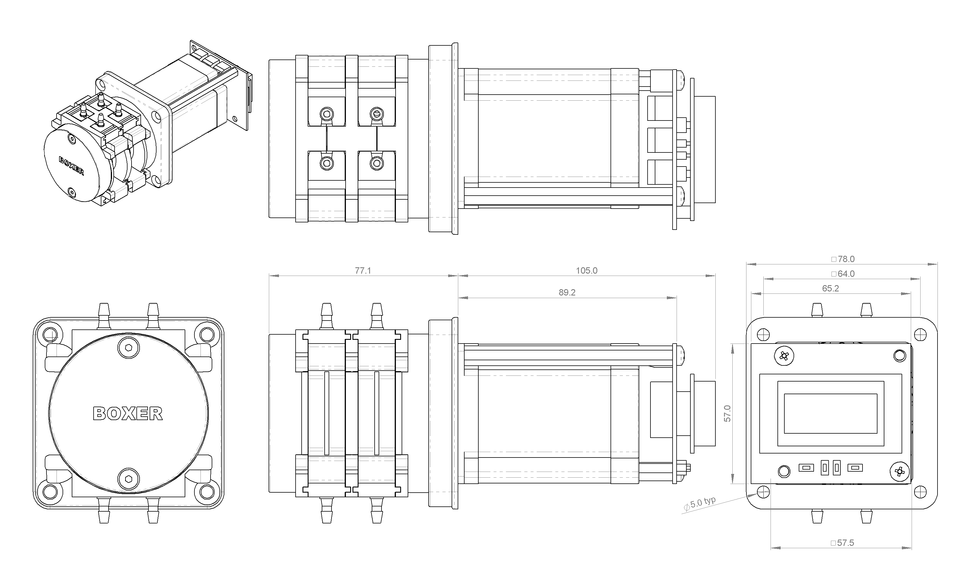

Part Number: 6332.105.

Number of Channels: 4 | Number of Rollers : 8 | Driver Options: iD

€582.06*

Available, shipping in 1 - 2 days

2 x tube sets and 2 x saddle kits required per pump:

Accessories

6K tube set: Innovaprene with PP connectors, for 1.6 mm wall tubing

Part Number: 6000.615

Tube Set: 1.6 x 1.6 mm (ID x wall)

€27.94*

Available, shipping in 1 - 2 days

6K tube set: Innovaprene with PP connectors, for 1.6 mm wall tubing

Part Number: 6000.616

Tube Set: 2.4 x 1.6 mm (ID x wall)

€27.94*

Available, shipping in 1 - 2 days

6K tube set: Innovaprene with PP connectors, for 1.6 mm wall tubing

Part Number: 6000.617

Tube Set: 3.2 x 1.6 mm (ID x wall)

€27.94*

Available, shipping in 1 - 2 days

6K saddle kit for 1.6 mm wall tubing

Part Number: 6000.164

6K Saddle Kit for 1.6 mm wall tubing: for pumps with 4 rollers

€5.01*

Available, shipping in 1 - 2 days

6K saddle kit for 1.6 mm wall tubing

Part Number: 6000.168

6K Saddle Kit for 1.6 mm wall tubing: for pumps with 8 rollers

€5.00*

Available, shipping in 1 - 2 days

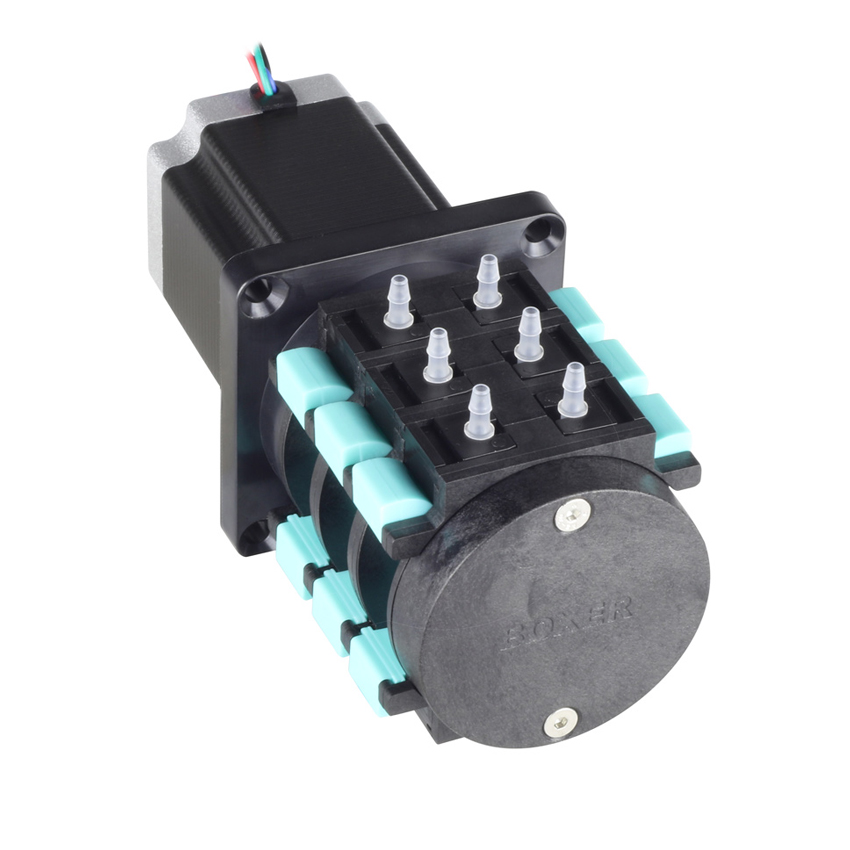

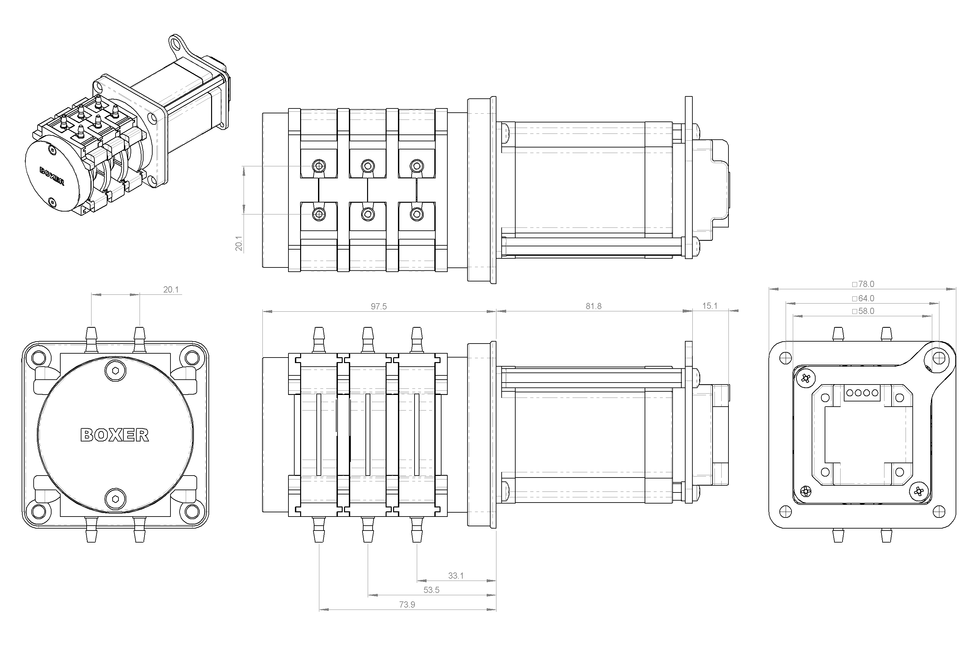

6 Channel with 24 V Stepper Motor

Flow Data per Revolution (per channel)
ID Ø 1.6 mm tube	137 / 89 µl per revolution (4 / 8 Roller)
ID Ø 2.4 mm tube	313 / 167 µl per revolution (4 / 8 Roller)
ID Ø 3.2 mm tube	489 / 214 µl per revolution (4 / 8 Roller)

Flow Data at 300 RPM (max recommended speed)
ID Ø 1.6 mm tube	41.1 / 26.7 ml / min (4 / 8 Roller)
ID Ø 2.4 mm tube	93.9 / 50.2 ml / min (4 / 8 Roller)
ID Ø 3.2 mm tube	146.7 / 64.2 ml / min (4 / 8 Roller)

Electrical Data
Power consumption (with ID Ø 3.2 mm tube and including A4 driver)	23 to 35 W
Recommended driver current setting	4.0 A
Max. starting speed (with new tubing)	100 rpm

To order samples / small quantities, click on the above 'Purchase Configurator' link or use the 'Add to shopping cart' links below.

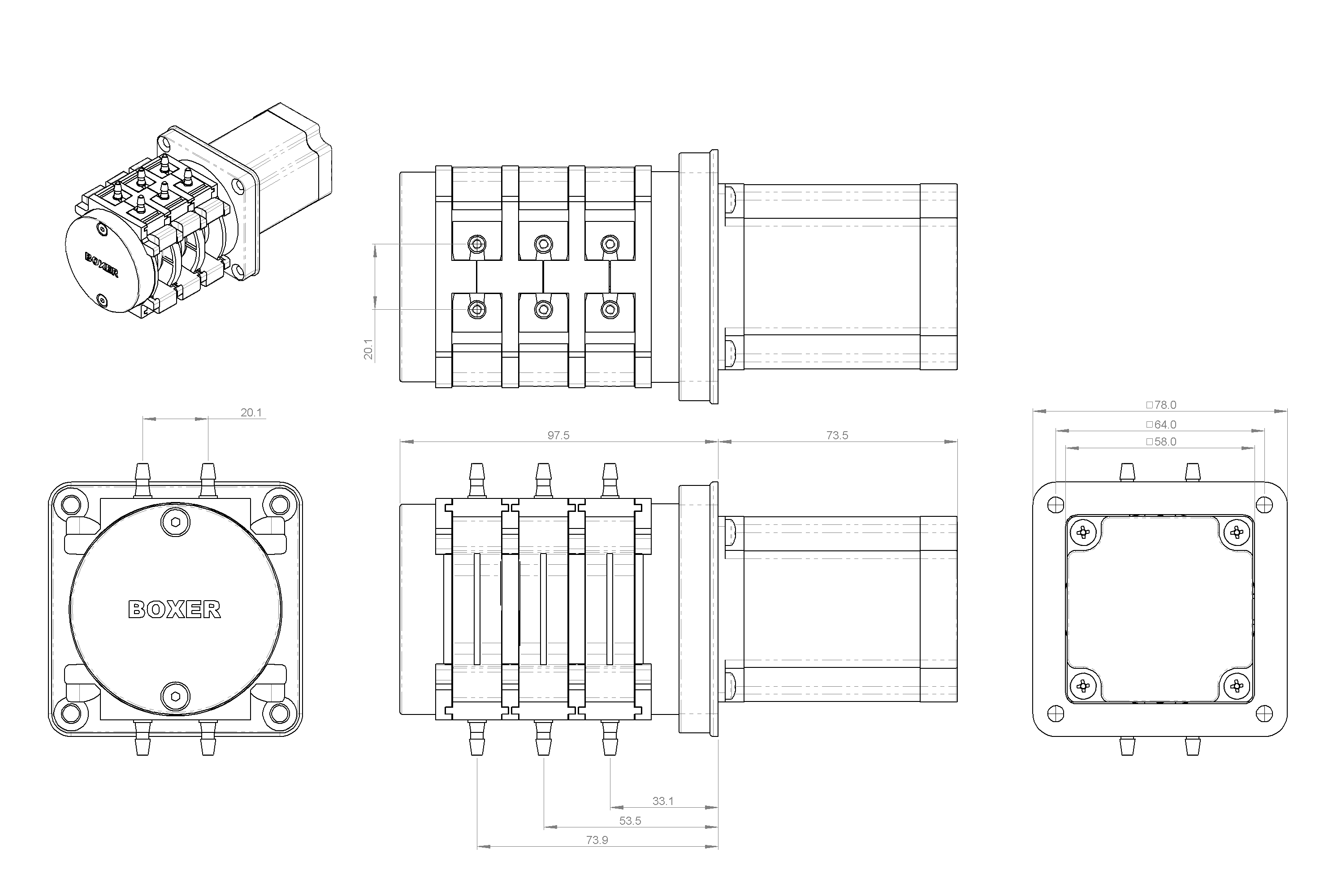

Part Number: 6343.100.

Number of Channels: 6 | Number of Rollers : 4 | Driver Options: no

€415.71*

Available, shipping in 1 - 2 days

Part Number: 6353.100.

Number of Channels: 6 | Number of Rollers : 8 | Driver Options: no

€422.44*

Available, shipping in 1 - 2 days

3 x tube sets and 3 x saddle kits required per pump:

Accessories

6K tube set: Innovaprene with PP connectors, for 1.6 mm wall tubing

Part Number: 6000.615

Tube Set: 1.6 x 1.6 mm (ID x wall)

€27.94*

Available, shipping in 1 - 2 days

6K tube set: Innovaprene with PP connectors, for 1.6 mm wall tubing

Part Number: 6000.616

Tube Set: 2.4 x 1.6 mm (ID x wall)

€27.94*

Available, shipping in 1 - 2 days

6K tube set: Innovaprene with PP connectors, for 1.6 mm wall tubing

Part Number: 6000.617

Tube Set: 3.2 x 1.6 mm (ID x wall)

€27.94*

Available, shipping in 1 - 2 days

6K saddle kit for 1.6 mm wall tubing

Part Number: 6000.164

6K Saddle Kit for 1.6 mm wall tubing: for pumps with 4 rollers

€5.01*

Available, shipping in 1 - 2 days

6K saddle kit for 1.6 mm wall tubing

Part Number: 6000.168

6K Saddle Kit for 1.6 mm wall tubing: for pumps with 8 rollers

€5.00*

Available, shipping in 1 - 2 days

To order samples / small quantities, click on the above 'Purchase Configurator' link or use the 'Add to shopping cart' links below.

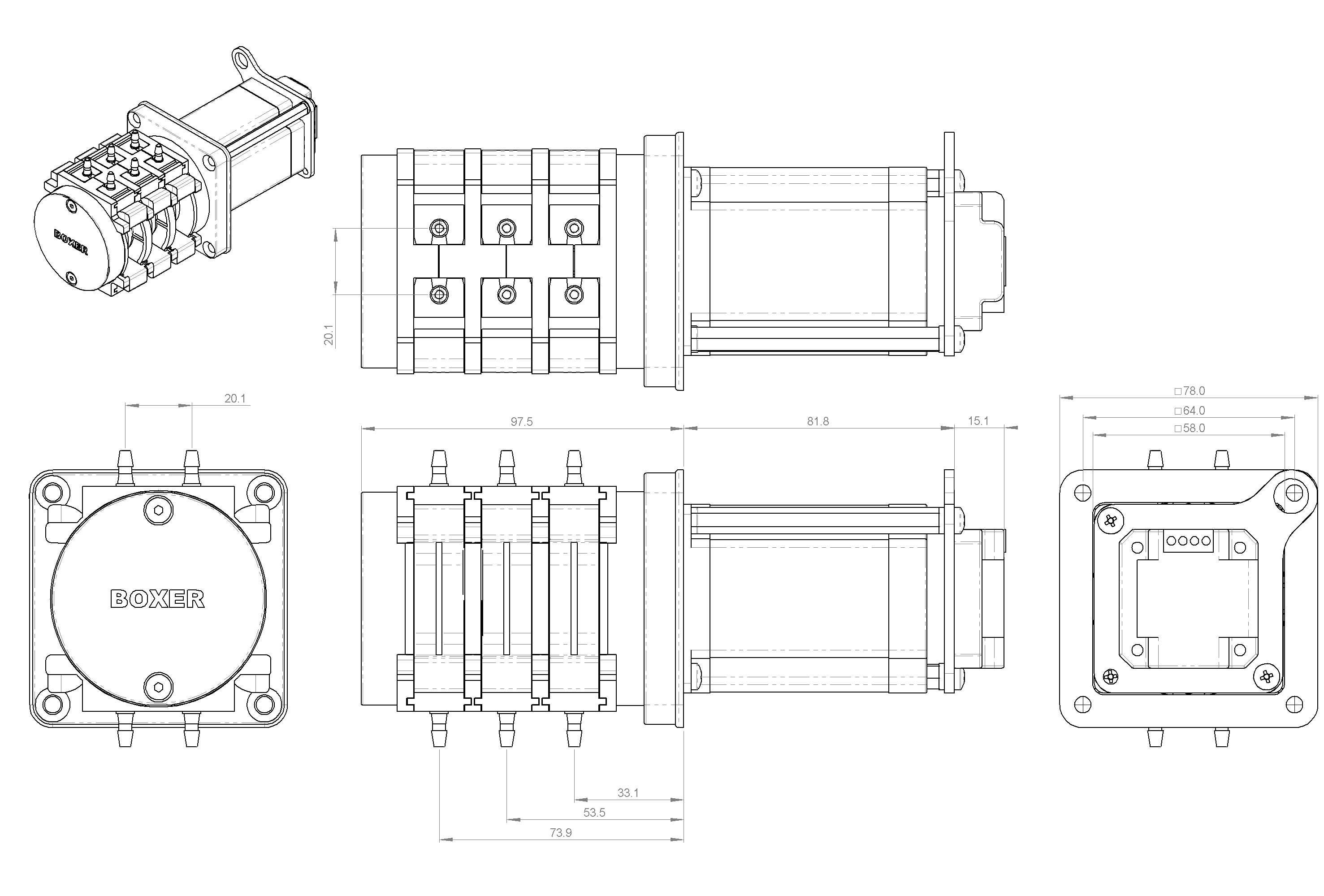

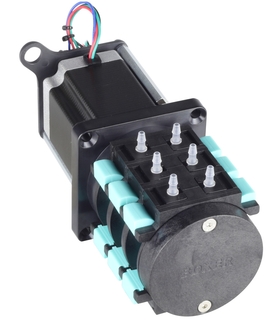

Part Number: 6343.101.

Number of Channels: 6 | Number of Rollers : 4 | Driver Options: A4

€554.36*

Available, shipping in 1 - 2 days

Part Number: 6353.101.

Number of Channels: 6 | Number of Rollers : 8 | Driver Options: A4

€561.10*

Available, shipping in 1 - 2 days

3 x tube sets and 3 x saddle kits required per pump:

Accessories

6K tube set: Innovaprene with PP connectors, for 1.6 mm wall tubing

Part Number: 6000.615

Tube Set: 1.6 x 1.6 mm (ID x wall)

€27.94*

Available, shipping in 1 - 2 days

6K tube set: Innovaprene with PP connectors, for 1.6 mm wall tubing

Part Number: 6000.616

Tube Set: 2.4 x 1.6 mm (ID x wall)

€27.94*

Available, shipping in 1 - 2 days

6K tube set: Innovaprene with PP connectors, for 1.6 mm wall tubing

Part Number: 6000.617

Tube Set: 3.2 x 1.6 mm (ID x wall)

€27.94*

Available, shipping in 1 - 2 days

6K saddle kit for 1.6 mm wall tubing

Part Number: 6000.164

6K Saddle Kit for 1.6 mm wall tubing: for pumps with 4 rollers

€5.01*

Available, shipping in 1 - 2 days

6K saddle kit for 1.6 mm wall tubing

Part Number: 6000.168

6K Saddle Kit for 1.6 mm wall tubing: for pumps with 8 rollers

€5.00*

Available, shipping in 1 - 2 days

To order samples / small quantities, click on the above 'Purchase Configurator' link or use the 'Add to shopping cart' links below.

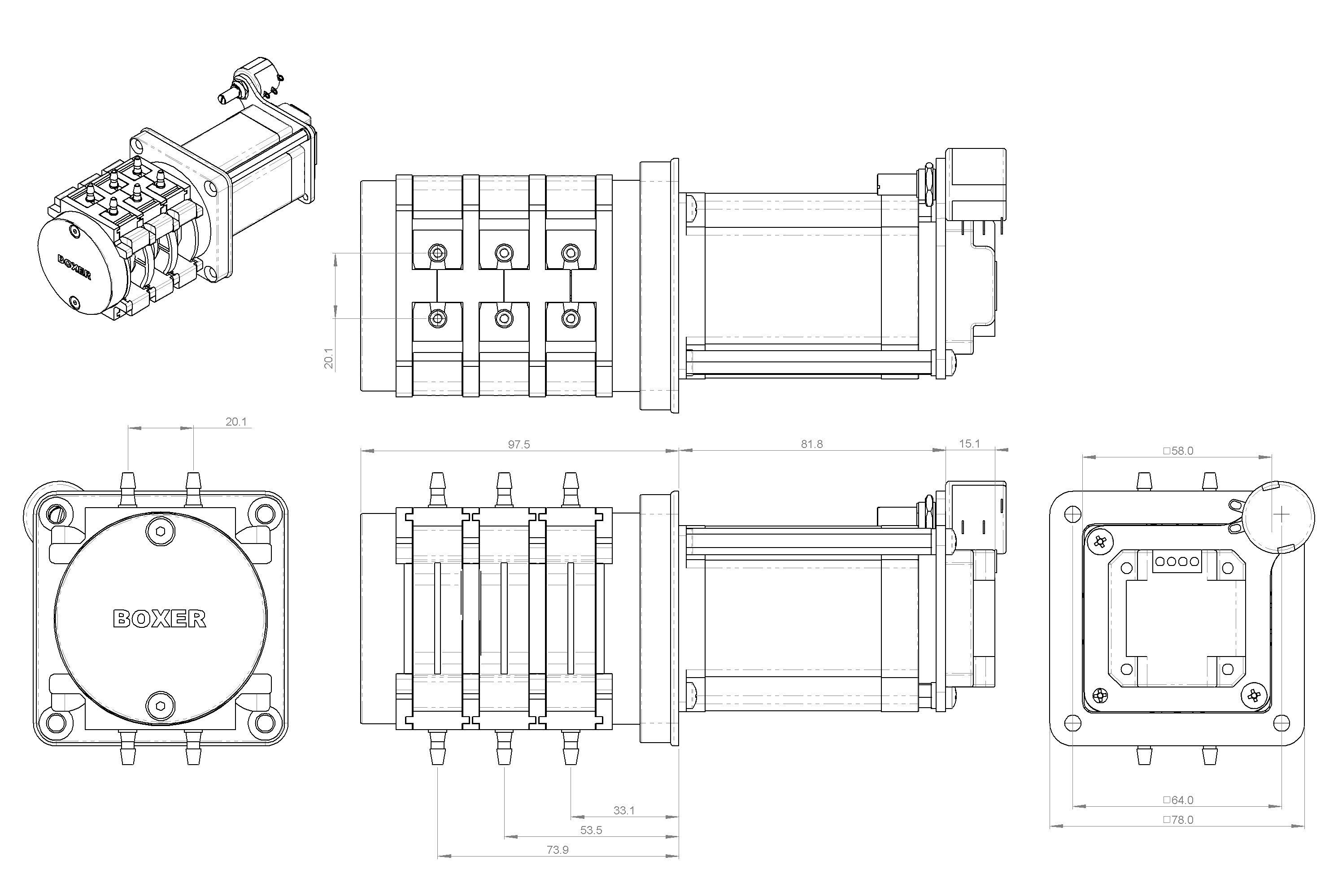

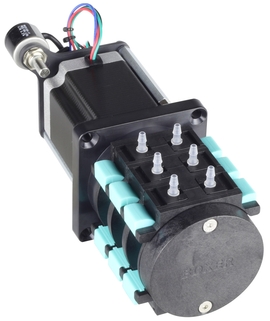

Part Number: 6343.151.

Number of Channels: 6 | Number of Rollers : 4 | Driver Options: A4p

€580.35*

Available, shipping in 1 - 2 days

Part Number: 6353.151.

Number of Channels: 6 | Number of Rollers : 8 | Driver Options: A4p

€587.08*

Available, shipping in 1 - 2 days

3 x tube sets and 3 x saddle kits required per pump:

Accessories

6K tube set: Innovaprene with PP connectors, for 1.6 mm wall tubing

Part Number: 6000.615

Tube Set: 1.6 x 1.6 mm (ID x wall)

€27.94*

Available, shipping in 1 - 2 days

6K tube set: Innovaprene with PP connectors, for 1.6 mm wall tubing

Part Number: 6000.616

Tube Set: 2.4 x 1.6 mm (ID x wall)

€27.94*

Available, shipping in 1 - 2 days

6K tube set: Innovaprene with PP connectors, for 1.6 mm wall tubing

Part Number: 6000.617

Tube Set: 3.2 x 1.6 mm (ID x wall)

€27.94*

Available, shipping in 1 - 2 days

6K saddle kit for 1.6 mm wall tubing

Part Number: 6000.164

6K Saddle Kit for 1.6 mm wall tubing: for pumps with 4 rollers

€5.01*

Available, shipping in 1 - 2 days

6K saddle kit for 1.6 mm wall tubing

Part Number: 6000.168

6K Saddle Kit for 1.6 mm wall tubing: for pumps with 8 rollers

€5.00*

Available, shipping in 1 - 2 days

To order samples / small quantities, click on the above 'Purchase Configurator' link or use the 'Add to shopping cart' links below.

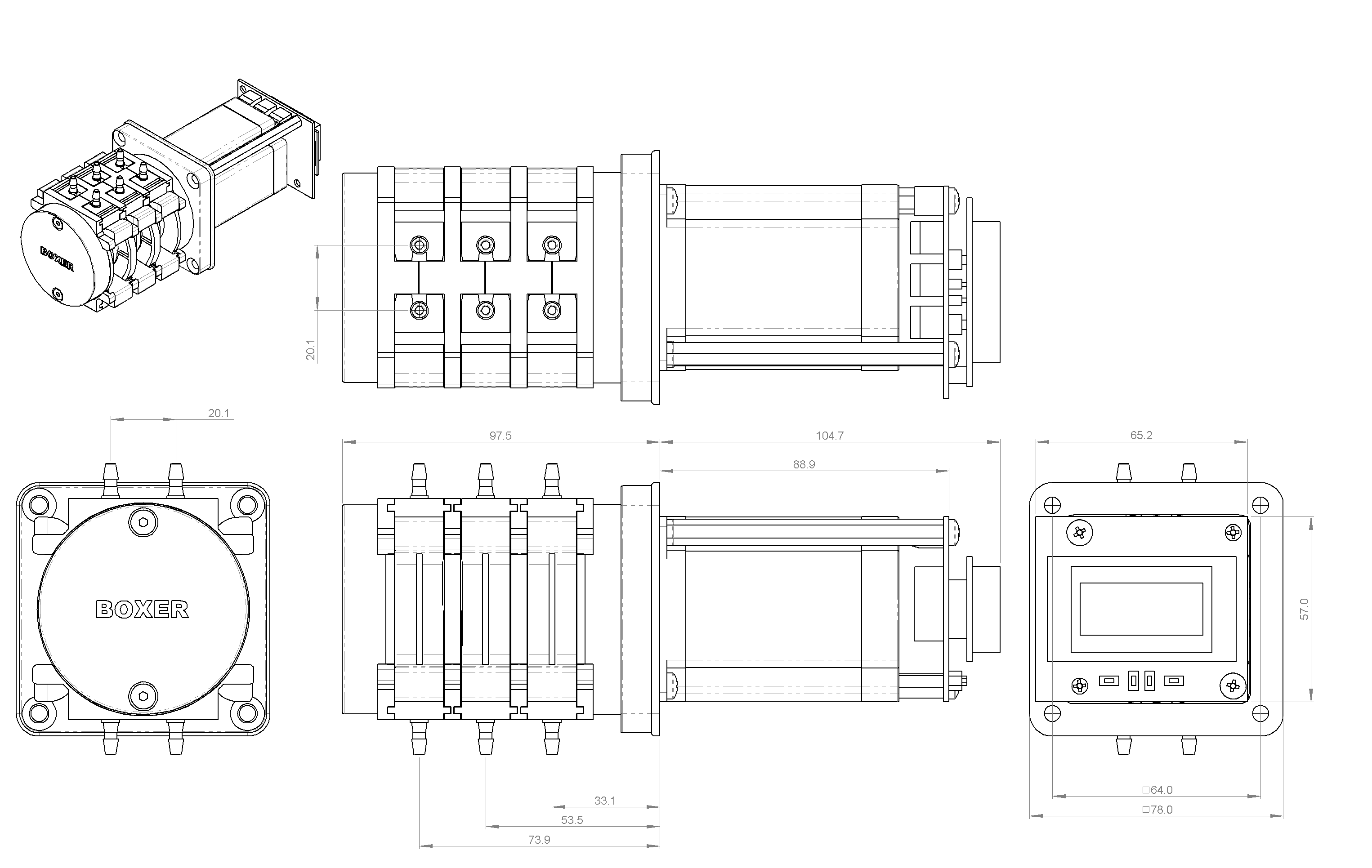

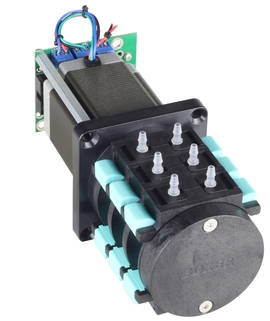

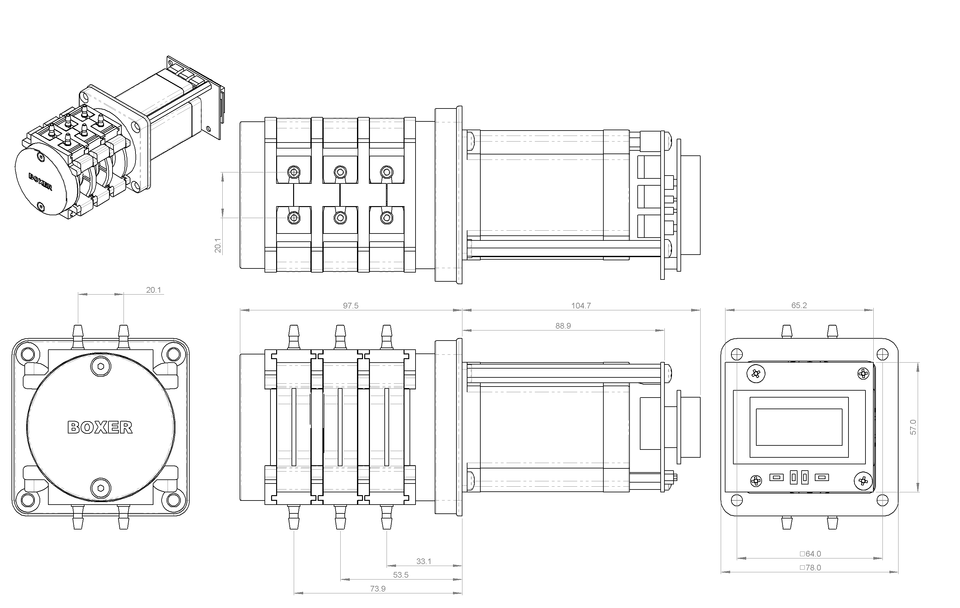

Part Number: 6343.105.

Number of Channels: 6 | Number of Rollers : 4 | Driver Options: iD

€623.64*

Available, shipping in 1 - 2 days

Part Number: 6333.105.

Number of Channels: 6 | Number of Rollers : 8 | Driver Options: iD

€630.38*

Available, shipping in 1 - 2 days

3 x tube sets and 3 x saddle kits required per pump:

Accessories

6K tube set: Innovaprene with PP connectors, for 1.6 mm wall tubing

Part Number: 6000.615

Tube Set: 1.6 x 1.6 mm (ID x wall)

€27.94*

Available, shipping in 1 - 2 days

6K tube set: Innovaprene with PP connectors, for 1.6 mm wall tubing

Part Number: 6000.616

Tube Set: 2.4 x 1.6 mm (ID x wall)

€27.94*

Available, shipping in 1 - 2 days

6K tube set: Innovaprene with PP connectors, for 1.6 mm wall tubing

Part Number: 6000.617

Tube Set: 3.2 x 1.6 mm (ID x wall)

€27.94*

Available, shipping in 1 - 2 days

6K saddle kit for 1.6 mm wall tubing

Part Number: 6000.164

6K Saddle Kit for 1.6 mm wall tubing: for pumps with 4 rollers

€5.01*

Available, shipping in 1 - 2 days

6K saddle kit for 1.6 mm wall tubing

Part Number: 6000.168

6K Saddle Kit for 1.6 mm wall tubing: for pumps with 8 rollers

€5.00*

Available, shipping in 1 - 2 days

Additional Accessories

6K tube set: Pharmaline with PP connectors, for 1.6 mm wall tubing

€39.32*

Details

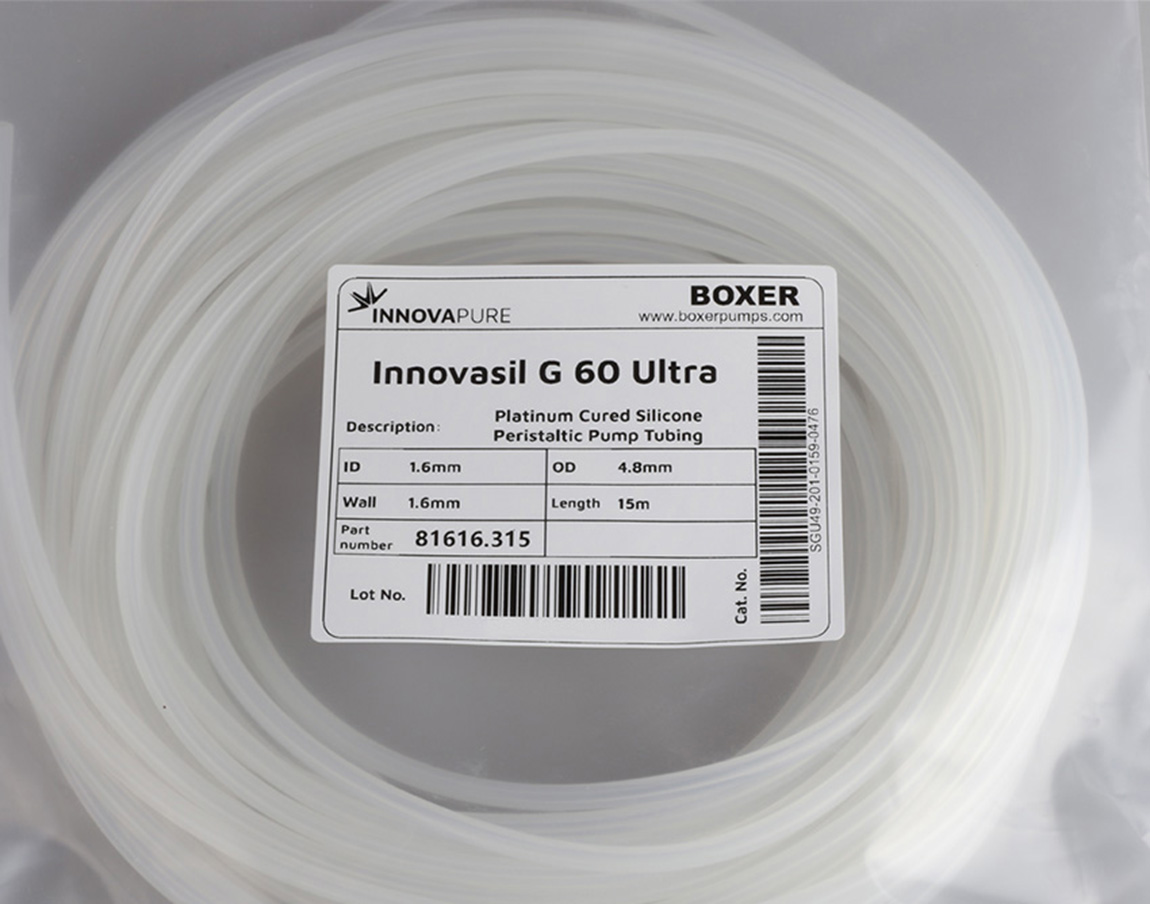

Innovasil (1.6 mm wall)

€7.78*

Details

6K tube set: Innovaprene with PP connectors, for 1.6 mm wall tubing

€27.94*

Details

6K tube set: Innovasil with PP connectors, for 1.6 mm wall tubing

€20.96*

Details

6K tube set: Innovasil with PP connectors for 1.0 mm wall tubing

€30.12*

Details

All data is representative for selection purposes, however does not indicate maximum or minimum values. These products are sold as components which are to be incorporated into a device. It is the responsibility of the manufacturer of the device to determined the suitability of the pump for the application and to ensure compliance will all applicable approvals and regulations. These products are not suitable for in-vivo applications.
