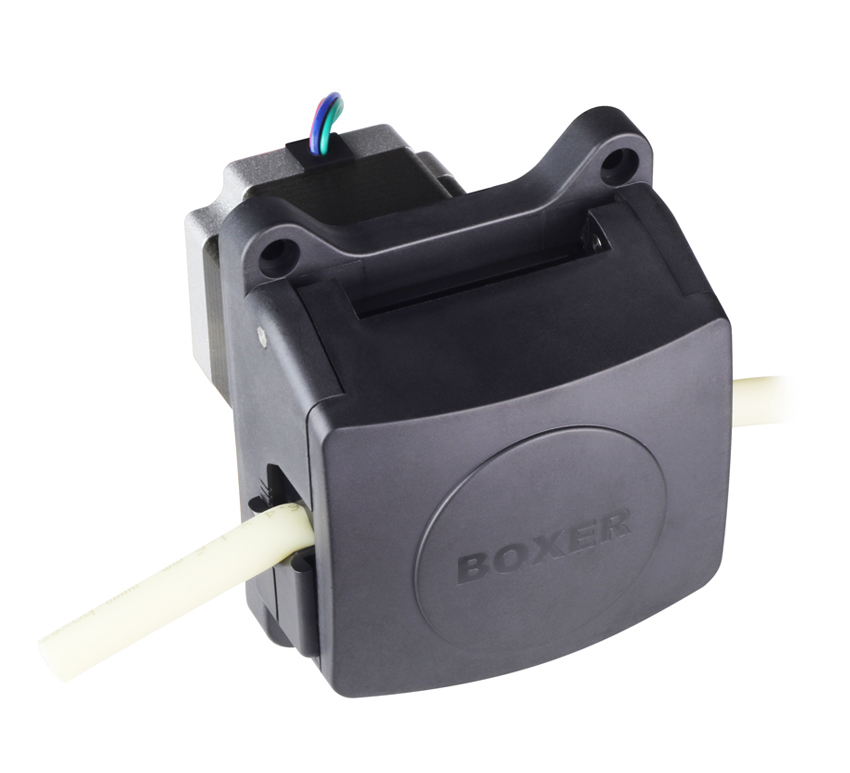

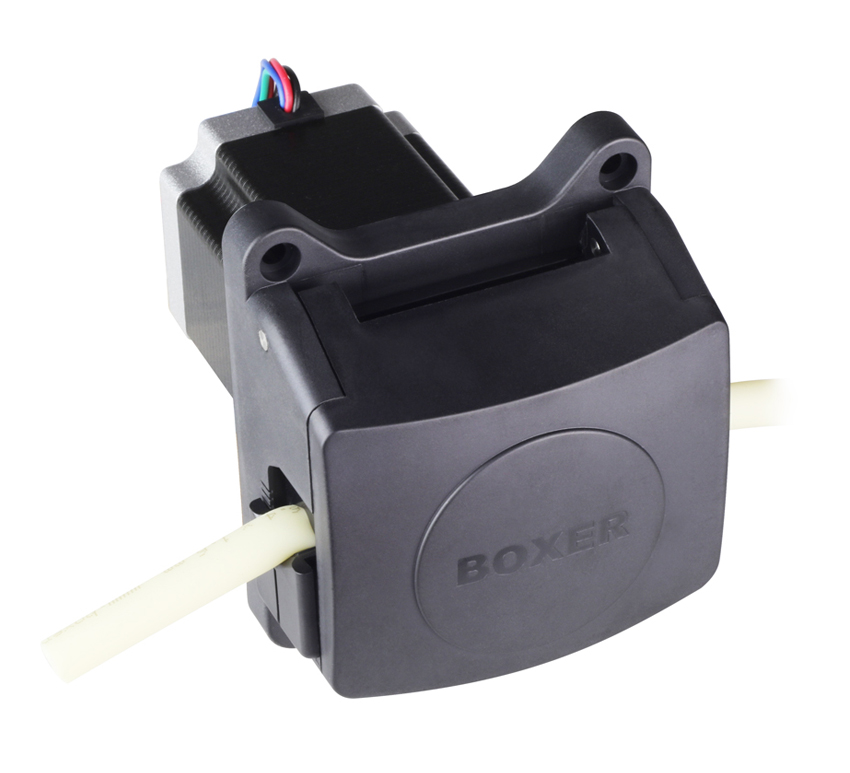

30KS Series

The 30KS is a derivative of the popular 25K peristaltic pump series. It differs primarily through simplified mounting which is accessible without removing the pump head. This series offers a very costs effective solution through elimination of the removable head design and associated coupling between the motor and pump head. Additionally, for 1.6 mm wall tubing a shorter stack stepper motor is available for further cost optimisation.

› Flow rates to 2000 ml/min
› Suitable for 1.6 and 2.4 mm wall tubing to maximum 8.0 mm ID
› Short stack and long stack stepper motor options
› 3 and 4 roller options
› Cost effective design
› Lid and speed sensor options
› Available with mounted stepper drivers (in 2 options) for 'plug-and-play'
› Panel mount with mounting gasket supplied as standard

The 30KS is as an alternative to the 25K series offering the user choice of cost optimisation versus a removable head design (facilitating mounting hidden inside the pump body).

Flow per Revolution
ID Ø 2.4 mm	0.60 / 0.50 ml per revolution (3 / 4 roller)
ID Ø 3.2 mm	0.90 / 0.80 ml per revolution (3 / 4 roller)
ID Ø 4.8 mm	2.00 / 1.80 ml per revolution (3 / 4 roller)
ID Ø 6.4 mm	3.50 / 2.80 ml per revolution (3 / 4 roller)
ID Ø 8.0 mm	5.00 / 3.60 ml per revolution (3 / 4 roller)

Flow at max Speed (using A4 or A4p driver))
ID Ø 2.4 mm	240 ml at 400 rpm / 150 ml at 300 rpm (3 / 4 roller)
ID Ø 3.2 mm	360 ml at 400 rpm / 240 ml at 300 rpm (3 / 4 roller)
ID Ø 4.8 mm	800 ml at 400 rpm / 540 ml at 300 rpm (3 / 4 roller)
ID Ø 6.4 mm	1400 ml at 400 rpm / 840 ml at 300 rpm (3 / 4 roller)
ID Ø 8.0 mm	2000 ml at 400 rpm / 1080 ml at 300 rpm (3 / 4 roller)

General Data
Power consumption (including A4 driver)	13 to 24 W
Recommended driver	4.0 A, limited to 2.8 A
Max pressure	2.0 bar
Max suction height	9.0 m H20
Weight (without driver)	955 g
Optional sensors	Lid closure / Speed

	Full data available in PDF datasheet

To order samples / small quantities, click on the above 'Purchase Configurator' link or use the 'Add to shopping cart' links below.

Part Number: 30101.000

Rollers: 3 | For 1.6 mm wall tube

€201.83*

Available, shipping in 1 - 2 days

Part Number: 30101.001

Rollers: 3 | Lid Sensor | For 1.6 mm wall tube

€236.69*

Available, shipping in 1 - 2 days

Part Number: 30101.002

Rollers: 3 | Speed + Lid Sensor | For 1.6 mm wall tube

€271.57*

Available, shipping in 1 - 2 days

Part Number: 30101.003

Rollers: 3 | Speed Sensor | For 1.6 mm wall tube

€236.69*

Available, shipping in 1 - 2 days

Part Number: 30102.000

Rollers: 4 | For 1.6 mm wall tube

€207.20*

Available, shipping in 1 - 2 days

Part Number: 30102.001

Rollers: 4 | Lid Sensor | For 1.6 mm wall tube

€242.07*

Available, shipping in 1 - 2 days

Part Number: 30102.002

Rollers: 4 | Speed + Lid Sensor | For 1.6 mm wall tube

€276.95*

Available, shipping in 1 - 2 days

Part Number: 30102.003

Rollers: 4 | Speed | For 1.6 mm wall tube

€242.07*

Available, shipping in 1 - 2 days

Accessories

25K / 30KS Innovaprene tube length (x 250 mm) 1.6 mm wall

Part Number: 25000.126

Size: 2.4 x 1.6 mm (ID x wall)

€5.22*

Available, shipping in 1 - 2 days

25K / 30KS Innovaprene tube length (x 250 mm) 1.6 mm wall

Part Number: 25000.127

Size: 3.2 x 1.6 mm (ID x wall)

€5.52*

Available, shipping in 1 - 2 days

25K / 30KS Innovaprene tube length (x 250 mm) 1.6 mm wall

Part Number: 25000.128

Size: 4.8 x 1.6 mm (ID x wall)

€5.83*

Available, shipping in 1 - 2 days

25K / 30KS Innovaprene tube length (x 250 mm) 1.6 mm wall

Part Number: 25000.129

Size: 6.4 x 1.6 mm (ID x wall)

€6.34*

Available, shipping in 1 - 2 days

25K / 30KS Innovaprene tube length (x 250 mm) 1.6 mm wall

Part Number: 25000.131

Size: 8.0 x 1.6 mm (ID x wall)

€6.49*

Available, shipping in 1 - 2 days

25K / 30KS Innovasil tube length (x 250 mm) 1.6 mm wall

Part Number: 25000.140

Size: 2.4 x 1.6 mm (ID x wall)

€3.17*

Available, shipping in 1 - 2 days

25K / 30KS Innovasil tube length (x 250 mm) 1.6 mm wall

Part Number: 25000.141

Size: 3.2 x 1.6 mm (ID x wall)

€3.48*

Available, shipping in 1 - 2 days

25K / 30KS Innovasil tube length (x 250 mm) 1.6 mm wall

Part Number: 25000.142

Size: 4.8 x 1.6 mm (ID x wall)

€3.67*

Available, shipping in 1 - 2 days

25K / 30KS Innovasil tube length (x 250 mm) 1.6 mm wall

Part Number: 25000.143

Size: 6.4 x 1.6 mm (ID x wall)

€4.02*

Available, shipping in 1 - 2 days

25K / 30KS Innovasil tube length (x 250 mm) 1.6 mm wall

Part Number: 25000.145

Size: 8.0 x 1.6 mm (ID x wall)

€4.38*

Available, shipping in 1 - 2 days

To order samples / small quantities, click on the above 'Purchase Configurator' link or use the 'Add to shopping cart' links below.

Part Number: 30157.000

Rollers: 3 | A4 Driver | For 1.6 mm wall tube

€345.34*

Available, shipping in 1 - 2 days

Part Number: 30157.001

Rollers: 3 | A4 Driver | Lid Sensor | For 1.6 mm wall tube

€380.22*

Available, shipping in 1 - 2 days

Part Number: 30157.002

Rollers: 3 | A4 Driver | Speed + Lid Sensor | For 1.6 mm wall tube

€415.09*

Available, shipping in 1 - 2 days

Part Number: 30157.003

Rollers: 3 | A4 Driver | Speed Sensor | For 1.6 mm wall tube

€380.22*

Available, shipping in 1 - 2 days

Part Number: 30158.000

Rollers: 4 | A4 Driver | For 1.6 mm wall tube

€350.71*

Available, shipping in 1 - 2 days

Part Number: 30158.001

Rollers: 4 | A4 Driver | Lid Sensor | For 1.6 mm wall tube

€385.58*

Available, shipping in 1 - 2 days

Part Number: 30158.002

Rollers: 4 | A4 Driver | Speed + Lid Sensor | For 1.6 mm wall tube

€420.46*

Available, shipping in 1 - 2 days

Part Number: 30158.003

Rollers: 4 | A4 Driver | Speed Sensor | For 1.6 mm wall tube

€385.58*

Available, shipping in 1 - 2 days

Accessories

25K / 30KS Innovaprene tube length (x 250 mm) 1.6 mm wall

Part Number: 25000.126

Size: 2.4 x 1.6 mm (ID x wall)

€5.22*

Available, shipping in 1 - 2 days

25K / 30KS Innovaprene tube length (x 250 mm) 1.6 mm wall

Part Number: 25000.127

Size: 3.2 x 1.6 mm (ID x wall)

€5.52*

Available, shipping in 1 - 2 days

25K / 30KS Innovaprene tube length (x 250 mm) 1.6 mm wall

Part Number: 25000.128

Size: 4.8 x 1.6 mm (ID x wall)

€5.83*

Available, shipping in 1 - 2 days

25K / 30KS Innovaprene tube length (x 250 mm) 1.6 mm wall

Part Number: 25000.129

Size: 6.4 x 1.6 mm (ID x wall)

€6.34*

Available, shipping in 1 - 2 days

25K / 30KS Innovaprene tube length (x 250 mm) 1.6 mm wall

Part Number: 25000.131

Size: 8.0 x 1.6 mm (ID x wall)

€6.49*

Available, shipping in 1 - 2 days

25K / 30KS Innovasil tube length (x 250 mm) 1.6 mm wall

Part Number: 25000.140

Size: 2.4 x 1.6 mm (ID x wall)

€3.17*

Available, shipping in 1 - 2 days

25K / 30KS Innovasil tube length (x 250 mm) 1.6 mm wall

Part Number: 25000.141

Size: 3.2 x 1.6 mm (ID x wall)

€3.48*

Available, shipping in 1 - 2 days

25K / 30KS Innovasil tube length (x 250 mm) 1.6 mm wall

Part Number: 25000.142

Size: 4.8 x 1.6 mm (ID x wall)

€3.67*

Available, shipping in 1 - 2 days

25K / 30KS Innovasil tube length (x 250 mm) 1.6 mm wall

Part Number: 25000.143

Size: 6.4 x 1.6 mm (ID x wall)

€4.02*

Available, shipping in 1 - 2 days

25K / 30KS Innovasil tube length (x 250 mm) 1.6 mm wall

Part Number: 25000.145

Size: 8.0 x 1.6 mm (ID x wall)

€4.38*

Available, shipping in 1 - 2 days

To order samples / small quantities, click on the above 'Purchase Configurator' link or use the 'Add to shopping cart' links below.

Part Number: 30151.000

Rollers: 3 | A4p Driver | For 1.6 mm wall tube

€372.22*

Available, shipping in 1 - 2 days

Part Number: 30151.001

Rollers: 3 | A4p Driver | Lid Sensor | For 1.6 mm wall tube

€407.09*

Available, shipping in 1 - 2 days

Part Number: 30151.002

Rollers: 3 | A4p Driver | Speed + Lid Sensor | For 1.6 mm wall tube

€441.97*

Available, shipping in 1 - 2 days

Part Number: 30151.003

Rollers: 3 | A4p Driver | Speed + Sensor | For 1.6 mm wall tube

€407.09*

Available, shipping in 1 - 2 days

Part Number: 30152.000

Rollers: 4 | A4p Driver | For 1.6 mm wall tube

€377.59*

Available, shipping in 1 - 2 days

Part Number: 30152.001

Rollers: 4 | A4p Driver | Lid Sensor | For 1.6 mm wall tube

€412.46*

Available, shipping in 1 - 2 days

Part Number: 30152.002

Rollers: 4 | A4p Driver | Speed + Lid Sensor | For 1.6 mm wall tube

€447.34*

Available, shipping in 1 - 2 days

Part Number: 30152.003

Rollers: 4 | A4p Driver | Speed Sensor | For 1.6 mm wall tube

€412.46*

Available, shipping in 1 - 2 days

Accessories

25K / 30KS Innovaprene tube length (x 250 mm) 1.6 mm wall

Part Number: 25000.126

Size: 2.4 x 1.6 mm (ID x wall)

€5.22*

Available, shipping in 1 - 2 days

25K / 30KS Innovaprene tube length (x 250 mm) 1.6 mm wall

Part Number: 25000.127

Size: 3.2 x 1.6 mm (ID x wall)

€5.52*

Available, shipping in 1 - 2 days

25K / 30KS Innovaprene tube length (x 250 mm) 1.6 mm wall

Part Number: 25000.128

Size: 4.8 x 1.6 mm (ID x wall)

€5.83*

Available, shipping in 1 - 2 days

25K / 30KS Innovaprene tube length (x 250 mm) 1.6 mm wall

Part Number: 25000.129

Size: 6.4 x 1.6 mm (ID x wall)

€6.34*

Available, shipping in 1 - 2 days

25K / 30KS Innovaprene tube length (x 250 mm) 1.6 mm wall

Part Number: 25000.131

Size: 8.0 x 1.6 mm (ID x wall)

€6.49*

Available, shipping in 1 - 2 days

25K / 30KS Innovasil tube length (x 250 mm) 1.6 mm wall

Part Number: 25000.140

Size: 2.4 x 1.6 mm (ID x wall)

€3.17*

Available, shipping in 1 - 2 days

25K / 30KS Innovasil tube length (x 250 mm) 1.6 mm wall

Part Number: 25000.141

Size: 3.2 x 1.6 mm (ID x wall)

€3.48*

Available, shipping in 1 - 2 days

25K / 30KS Innovasil tube length (x 250 mm) 1.6 mm wall

Part Number: 25000.142

Size: 4.8 x 1.6 mm (ID x wall)

€3.67*

Available, shipping in 1 - 2 days

25K / 30KS Innovasil tube length (x 250 mm) 1.6 mm wall

Part Number: 25000.143

Size: 6.4 x 1.6 mm (ID x wall)

€4.02*

Available, shipping in 1 - 2 days

25K / 30KS Innovasil tube length (x 250 mm) 1.6 mm wall

Part Number: 25000.145

Size: 8.0 x 1.6 mm (ID x wall)

€4.38*

Available, shipping in 1 - 2 days

Flow per Revolution
ID Ø 6.4 mm	3.10 / 2.60 ml per revolution (3 / 4 roller)
ID Ø 8.0 mm	4.30 / 3.50 ml per revolution (3 / 4 roller)




Flow at max Speed (using A4 or A4p driver))
ID Ø 6.4 mm	1085 ml at 350 rpm / 780 ml at 300 rpm (3 / 4 roller)
ID Ø 8.0 mm	1505 ml at 350 rpm / 1050 ml at 300 rpm (3 / 4 roller)




General Data
Power consumption (including A4 driver)	20 to 33 W
Recommended driver	4.0 A, limited to 4.0 A
Max pressure	2.0 bar
Max suction height	9.0 m H20
Weight (without driver)	1295 g
Optional sensors	Lid closure / Speed

	Full data available in PDF datasheet

To order samples / small quantities, click on the above 'Purchase Configurator' link or use the 'Add to shopping cart' links below.

Part Number: 30004.000

Rollers: 3 | For 2.4 mm wall tube

€222.01*

Available, shipping in 1 - 2 days

Part Number: 30004.001

Rollers: 3 | Lid Sensor | For 2.4 mm wall tube

€256.89*

Available, shipping in 1 - 2 days

Part Number: 30004.002

Rollers: 3 | Speed + Lid Sensor | For 2.4 mm wall tube

€291.76*

Available, shipping in 1 - 2 days

Part Number: 30004.003

Rollers: 3 | Speed Sensor | For 2.4 mm wall tube

€256.89*

Available, shipping in 1 - 2 days

Part Number: 30005.000

Rollers: 4 | For 2.4 mm wall tube

€227.38*

Available, shipping in 1 - 2 days

Part Number: 30005.001

Rollers: 4 | Lid Sensor | For 2.4 mm wall tube

€262.26*

Available, shipping in 1 - 2 days

Part Number: 30005.002

Rollers: 4 | Speed + Lid Sensor | For 2.4 mm wall tube

€297.13*

Available, shipping in 1 - 2 days

Part Number: 30005.003

Rollers: 4 | Speed Sensor | For 2.4 mm wall tube

€262.26*

Available, shipping in 1 - 2 days

Accessories

25K / 30KS Innovaprene tube length (x 250 mm) 2.4 mm wall

Part Number: 25000.130

Size: 6.4 x 2.4 mm (ID x wall)

€6.52*

Available, shipping in 1 - 2 days

25K / 30KS Innovaprene tube length (x 250 mm) 2.4 mm wall

Part Number: 25000.132

Size: 8.0 x 2.4 mm (ID x wall)

€6.74*

Available, shipping in 1 - 2 days

25K / 30KS Innovasil tube length (x 250 mm) 2.4 mm wall

Part Number: 25000.144

Size: 6.4 x 2.4 mm (ID x wall)

€4.86*

25K / 30KS Innovasil tube length (x 250 mm) 2.4 mm wall

Part Number: 25000.146

Size: 8.0 x 2.4 mm (ID x wall)

€5.23*

To order samples / small quantities, click on the above 'Purchase Configurator' link or use the 'Add to shopping cart' links below.

Part Number: 30060.000

Rollers: 3 | A4 Driver | For 2.4 mm wall tube

€365.53*

Available, shipping in 1 - 2 days

Part Number: 30060.001

Rollers: 3 | A4 Driver | Lid Sensor | For 2.4 mm wall tube

€400.40*

Available, shipping in 1 - 2 days

Part Number: 30060.002

Rollers: 3 | A4 Driver | Speed + Lid Sensor | For 2.4 mm wall tube

€435.27*

Available, shipping in 1 - 2 days

Part Number: 30060.003

Rollers: 3 | A4 Driver | Speed Sensor | For 2.4 mm wall tube

€400.40*

Available, shipping in 1 - 2 days

Part Number: 30061.000

Rollers: 4 | A4 Driver | For 2.4 mm wall tube

€370.89*

Available, shipping in 1 - 2 days

Part Number: 30061.001

Rollers: 4 | A4 Driver | Lid Sensor | For 2.4 mm wall tube

€405.77*

Available, shipping in 1 - 2 days

Part Number: 30061.002

Rollers: 4 | A4 Driver | Speed + Lid Sensor | For 2.4 mm wall tube

€440.64*

Available, shipping in 1 - 2 days

Part Number: 30061.003

Rollers: 4 | A4 Driver | Speed Sensor | For 2.4 mm wall tube

€405.77*

Available, shipping in 1 - 2 days

Accessories

25K / 30KS Innovaprene tube length (x 250 mm) 2.4 mm wall

Part Number: 25000.130

Size: 6.4 x 2.4 mm (ID x wall)

€6.52*

Available, shipping in 1 - 2 days

25K / 30KS Innovaprene tube length (x 250 mm) 2.4 mm wall

Part Number: 25000.132

Size: 8.0 x 2.4 mm (ID x wall)

€6.74*

Available, shipping in 1 - 2 days

25K / 30KS Innovasil tube length (x 250 mm) 2.4 mm wall

Part Number: 25000.144

Size: 6.4 x 2.4 mm (ID x wall)

€4.86*

25K / 30KS Innovasil tube length (x 250 mm) 2.4 mm wall

Part Number: 25000.146

Size: 8.0 x 2.4 mm (ID x wall)

€5.23*

To order samples / small quantities, click on the above 'Purchase Configurator' link or use the 'Add to shopping cart' links below.

Part Number: 30054.000

Rollers: 3 | A4p Driver | For 2.4 mm wall tube

€392.40*

Available, shipping in 1 - 2 days

Part Number: 30054.001

Rollers: 3 | A4p Driver | Lid Sensor | For 2.4 mm wall tube

€427.28*

Available, shipping in 1 - 2 days

Part Number: 30054.002

Rollers: 3 | A4p Driver | Speed + Lid Sensor | For 2.4 mm wall tube

€462.15*

Available, shipping in 1 - 2 days

Part Number: 30054.003

Rollers: 3 | A4p Driver | Speed Sensor | For 2.4 mm wall tube

€427.28*

Available, shipping in 1 - 2 days

Part Number: 30055.000

Rollers: 4 | A4p Driver | For 2.4 mm wall tube

€397.77*

Available, shipping in 1 - 2 days

Part Number: 30055.001

Rollers: 4 | A4p Driver | Lid Sensor | For 2.4 mm wall tube

€432.65*

Available, shipping in 1 - 2 days

Part Number: 30055.002

Rollers: 4 | A4p Driver | Speed + Lid Sensor | For 2.4 mm wall tube

€467.52*

Available, shipping in 1 - 2 days

Part Number: 30055.002

Rollers: 4 | A4p Driver | Speed Sensor | For 2.4 mm wall tube

€467.52*

Available, shipping in 1 - 2 days

Accessories

25K / 30KS Innovaprene tube length (x 250 mm) 2.4 mm wall

Part Number: 25000.130

Size: 6.4 x 2.4 mm (ID x wall)

€6.52*

Available, shipping in 1 - 2 days

25K / 30KS Innovaprene tube length (x 250 mm) 2.4 mm wall

Part Number: 25000.132

Size: 8.0 x 2.4 mm (ID x wall)

€6.74*

Available, shipping in 1 - 2 days

25K / 30KS Innovasil tube length (x 250 mm) 2.4 mm wall

Part Number: 25000.144

Size: 6.4 x 2.4 mm (ID x wall)

€4.86*

25K / 30KS Innovasil tube length (x 250 mm) 2.4 mm wall

Part Number: 25000.146

Size: 8.0 x 2.4 mm (ID x wall)

€5.23*

Additional Accessories

25K / 30KS Innovasil tube length (x 250 mm) 1.6 mm wall

€3.17*

Details

Innovasil (1.6 mm wall)

€8.05*

Details

25K / 30KS Innovaprene tube length (x 250 mm) 1.6 mm wall

€5.22*

Details

All data is representative for selection purposes, however does not indicate maximum or minimum values. These products are sold as components which are to be incorporated into a device. It is the responsibility of the manufacturer of the device to determined the suitability of the pump for the application and to ensure compliance will all applicable approvals and regulations. These products are not suitable for in-vivo applications.
