15 KS Series

The 15KS series is a unique and versatile peristaltic pump range designed for accurate dispensing of liquids.

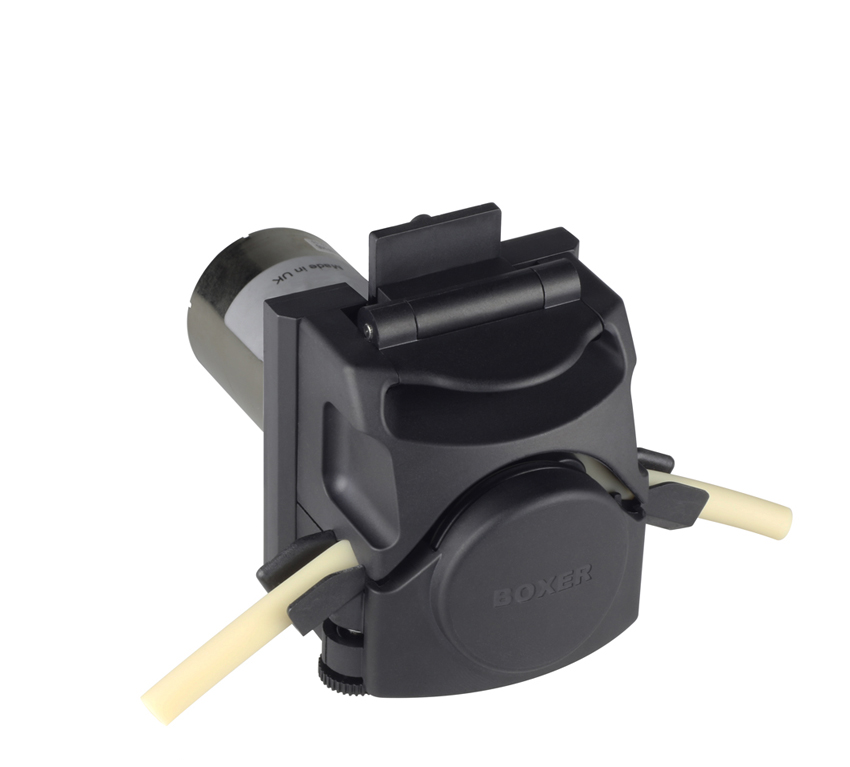

DC / Gear motor versions offer a range of 30 to 420 rpm with optional back shaft encoder providing accurate feedback of rotor speed.

Stepper motor versions offer the versatility of 2 different size motors and supporting driver options.

AC Synchronous motor versions offer slow speed dosing with a choice of 8 or 15 rpm.

› Flow rates from 1.4 ml/min (or lower using stepper motor) to 1072 ml/min
› Continuous tube
› Flip-top easy tube exchange
› Clip-on head
› 4 different tube sizes
› 4 different tube materials
› 3 roller configurations

Tubing must always be ordered separately.

The 15KS is available with a floating saddle under the series 15QQ.

Flow control of the DC / Gear motor versions is available in combination with PWM Flow Controller.

Economic and versatile available in 12 and 24 V.

Flow Data
ID Ø 1.6 mm tube	210 / 190 / 170 µl per revolution (3 / 4 / 6 Roller)
ID Ø 2.4 mm tube	435 / 390 / 320 µl per revolution (3 / 4 / 6 Roller)
ID Ø 3.2 mm tube	730 / 660 / 495 µl per revolution (3 / 4 / 6 Roller)
ID Ø 4.8 mm tube	1340 / 1250 / 830 µl per revolution (3 / 4 / 6 Roller)

Flow data measured at 100 RPM using water and Pharm-a-line tubing

RPM (at nominal voltage)
12 V	30 / 312 / 437
24 V	60 / 298 / 420

Power Comsumption	6.5 to 10.5 W

Tube Materials	Pharm-a-line / Silicone / Norprene G / ED-Plex

Max pressure	2 bar
DC motor life	>1000 hour
Weight	405 g
Optional encoder	10 pulses per motor revolution (associated rotor speed depends in gear ratio)

To order samples / small quantities, click on the above 'Purchase Configurator' link or use the 'Add to shopping cart' links below.

Part Number: 15008.100

Motor / Voltage: DC / Gear Motor 12 V, 40 rpm, 4 Roller | Encoder Option: no

€191.24*

Available, shipping in 1 - 2 days

Part Number: 15011.100

Motor / Voltage: DC / Gear Motor 12 V, 312 rpm, 4 Roller | Encoder Option: no

€179.11*

Available, shipping in 1 - 2 days

Part Number: 15012.100

Motor / Voltage: DC / Gear Motor 12 V, 437 rpm, 4 Roller | Encoder Option: no

€179.11*

Available, shipping in 1 - 2 days

Part Number: 15009.100

Motor / Voltage: DC / Gear Motor 24 V, 80 rpm, 4 Roller | Encoder Option: no

€191.24*

Available, shipping in 1 - 2 days

Part Number: 15013.100

Motor / Voltage: DC / Gear Motor 24 V, 298 rpm, 4 Roller | Encoder Option: no

€179.11*

Available, shipping in 1 - 2 days

Part Number: 15014.100

Motor / Voltage: DC / Gear Motor 24 V, 420 rpm, 4 Roller | Encoder Option: no

€179.11*

Available, shipping in 1 - 2 days

Accessories

15KS / 15QQ Innovaprene tube length (x 150 mm)

Part Number: 15000.216

Size: 1.6 x 1.6 mm (ID x wall)

€2.82*

Available, shipping in 1 - 2 days

15KS / 15QQ Innovaprene tube length (x 150 mm)

Part Number: 15000.217

Size: 2.4 x 1.6 mm (ID x wall)

€3.13*

Available, shipping in 1 - 2 days

15KS / 15QQ Innovaprene tube length (x 150 mm)

Part Number: 15000.218

Size: 3.2 x 1.6 mm (ID x wall)

€3.31*

Available, shipping in 1 - 2 days

15KS / 15QQ Innovaprene tube length (x 150 mm)

Part Number: 15000.219

Size: 4.8 x 1.6 mm (ID x wall)

€3.49*

Available, shipping in 1 - 2 days

15KS / 15QQ Innovasil tube length (x 150 mm)

Part Number: 15000.230

Size: 1.6 x 1.6 mm (ID x wall)

€1.73*

Available, shipping in 1 - 2 days

15KS / 15QQ Innovasil tube length (x 150 mm)

Part Number: 15000.231

Size: 2.4 x 1.6 mm (ID x wall)

€1.89*

Available, shipping in 1 - 2 days

15KS / 15QQ Innovasil tube length (x 150 mm)

Part Number: 15000.232

Size: 3.2 x 1.6 mm (ID x wall)

€2.09*

Available, shipping in 1 - 2 days

15KS / 15QQ Innovasil tube length (x 150 mm)

Part Number: 15000.233

Size: 4.8 x 1.6 mm (ID x wall)

€2.21*

Available, shipping in 1 - 2 days

To order samples / small quantities, click on the above 'Purchase Configurator' link or use the 'Add to shopping cart' links below.

Part Number: 15408.100

Motor / Voltage: DC / Gear Motor 12 V, 40 rpm, 4 Roller | Encoder Option: yes

€274.94*

Available, shipping in 1 - 2 days

Part Number: 15411.100

Motor / Voltage: DC / Gear Motor 12 V, 312 rpm, 4 Roller | Encoder Option: yes

€262.80*

Available, shipping in 1 - 2 days

Part Number: 15412.100

Motor / Voltage: DC / Gear Motor 12 V, 437 rpm, 4 Roller | Encoder Option: yes

€262.80*

Available, shipping in 1 - 2 days

Part Number: 15409.100

Motor / Voltage: DC / Gear Motor 24 V, 80 rpm, 4 Roller | Encoder Option: yes

€274.94*

Available, shipping in 1 - 2 days

Part Number: 15413.100

Motor / Voltage: DC / Gear Motor 24 V, 298 rpm, 4 Roller | Encoder Option: yes

€262.80*

Available, shipping in 1 - 2 days

Part Number: 15414.100

Motor / Voltage: DC / Gear Motor 24 V, 420 rpm, 4 Roller | Encoder Option: yes

€262.80*

Available, shipping in 1 - 2 days

Accessories

15KS / 15QQ Innovaprene tube length (x 150 mm)

Part Number: 15000.216

Size: 1.6 x 1.6 mm (ID x wall)

€2.82*

Available, shipping in 1 - 2 days

15KS / 15QQ Innovaprene tube length (x 150 mm)

Part Number: 15000.217

Size: 2.4 x 1.6 mm (ID x wall)

€3.13*

Available, shipping in 1 - 2 days

15KS / 15QQ Innovaprene tube length (x 150 mm)

Part Number: 15000.218

Size: 3.2 x 1.6 mm (ID x wall)

€3.31*

Available, shipping in 1 - 2 days

15KS / 15QQ Innovaprene tube length (x 150 mm)

Part Number: 15000.219

Size: 4.8 x 1.6 mm (ID x wall)

€3.49*

Available, shipping in 1 - 2 days

15KS / 15QQ Innovasil tube length (x 150 mm)

Part Number: 15000.230

Size: 1.6 x 1.6 mm (ID x wall)

€1.73*

Available, shipping in 1 - 2 days

15KS / 15QQ Innovasil tube length (x 150 mm)

Part Number: 15000.231

Size: 2.4 x 1.6 mm (ID x wall)

€1.89*

Available, shipping in 1 - 2 days

15KS / 15QQ Innovasil tube length (x 150 mm)

Part Number: 15000.232

Size: 3.2 x 1.6 mm (ID x wall)

€2.09*

Available, shipping in 1 - 2 days

15KS / 15QQ Innovasil tube length (x 150 mm)

Part Number: 15000.233

Size: 4.8 x 1.6 mm (ID x wall)

€2.21*

Available, shipping in 1 - 2 days

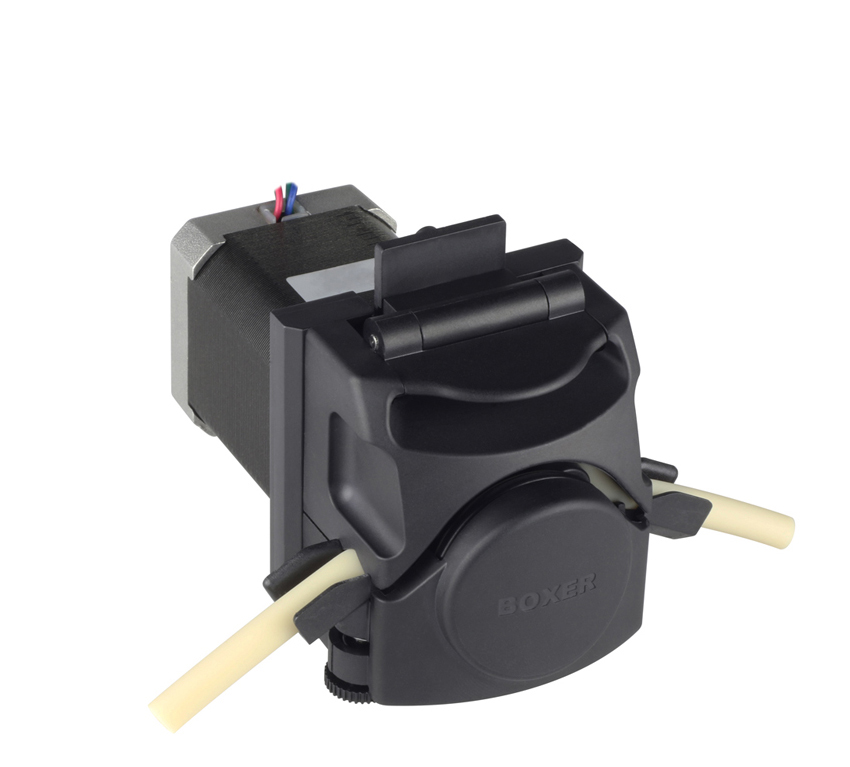

The 15KS is available with 2 different size 24 V stepper motors. The Nema 17 frame offers: › Compact › Light weight › Low power consumption Supplied with stepper motor only or complete with assembled driver.

Flow Data
ID Ø 1.6 mm tube	210 / 190 / 170 µl per revolution (3 / 4 / 6 Roller)
ID Ø 2.4 mm tube	435 / 390 / 320 µl per revolution (3 / 4 / 6 Roller)
ID Ø 3.2 mm tube	730 / 660 / 495 µl per revolution (3 / 4 / 6 Roller)
ID Ø 4.8 mm tube	1340 / 1250 / 830 µl per revolution (3 / 4 / 6 Roller)

Flow data measured at 100 RPM using water and Pharm-a-line tubing

RPM	0 to 500 RPM

Power Comsumption	7.0 to 12.0 W

Tube Materials	Pharm-a-line / Silicone / Norprene G / ED-Plex

Max pressure	2 bar
Motor life	>10000 hour
Weight	655 g

To order samples / small quantities, click on the above 'Purchase Configurator' link or use the 'Add to shopping cart' links below.

Part Number: 15601.100

Motor / Driver Options: Nema 17 | Number of Rollers : 3

€161.25*

Available, shipping in 1 - 2 days

Part Number: 15602.100

Motor / Driver Options: Nema 17 | Number of Rollers : 4

€162.99*

Available, shipping in 1 - 2 days

Part Number: 15603.100

Motor / Driver Options: Nema 17 | Number of Rollers : 6

€166.49*

Available, shipping in 1 - 2 days

Accessories

15KS / 15QQ Innovaprene tube length (x 150 mm)

Part Number: 15000.216

Size: 1.6 x 1.6 mm (ID x wall)

€2.82*

Available, shipping in 1 - 2 days

15KS / 15QQ Innovaprene tube length (x 150 mm)

Part Number: 15000.217

Size: 2.4 x 1.6 mm (ID x wall)

€3.13*

Available, shipping in 1 - 2 days

15KS / 15QQ Innovaprene tube length (x 150 mm)

Part Number: 15000.218

Size: 3.2 x 1.6 mm (ID x wall)

€3.31*

Available, shipping in 1 - 2 days

15KS / 15QQ Innovaprene tube length (x 150 mm)

Part Number: 15000.219

Size: 4.8 x 1.6 mm (ID x wall)

€3.49*

Available, shipping in 1 - 2 days

15KS / 15QQ Innovasil tube length (x 150 mm)

Part Number: 15000.230

Size: 1.6 x 1.6 mm (ID x wall)

€1.73*

Available, shipping in 1 - 2 days

15KS / 15QQ Innovasil tube length (x 150 mm)

Part Number: 15000.231

Size: 2.4 x 1.6 mm (ID x wall)

€1.89*

Available, shipping in 1 - 2 days

15KS / 15QQ Innovasil tube length (x 150 mm)

Part Number: 15000.232

Size: 3.2 x 1.6 mm (ID x wall)

€2.09*

Available, shipping in 1 - 2 days

15KS / 15QQ Innovasil tube length (x 150 mm)

Part Number: 15000.233

Size: 4.8 x 1.6 mm (ID x wall)

€2.21*

Available, shipping in 1 - 2 days

To order samples / small quantities, click on the above 'Purchase Configurator' link or use the 'Add to shopping cart' links below.

Part Number: 15651.101

Motor / Driver Options: Nema 17 + A2 Driver | Number of Rollers : 3

€235.20*

Available, shipping in 1 - 2 days

Part Number: 15652.101

Motor / Driver Options: Nema 17 + A2 Driver | Number of Rollers : 4

€236.95*

Available, shipping in 1 - 2 days

Part Number: 15653.101

Motor / Driver Options: Nema 17 + A2 Driver | Number of Rollers : 6

€240.44*

Available, shipping in 1 - 2 days

Accessories

15KS / 15QQ Innovaprene tube length (x 150 mm)

Part Number: 15000.216

Size: 1.6 x 1.6 mm (ID x wall)

€2.82*

Available, shipping in 1 - 2 days

15KS / 15QQ Innovaprene tube length (x 150 mm)

Part Number: 15000.217

Size: 2.4 x 1.6 mm (ID x wall)

€3.13*

Available, shipping in 1 - 2 days

15KS / 15QQ Innovaprene tube length (x 150 mm)

Part Number: 15000.218

Size: 3.2 x 1.6 mm (ID x wall)

€3.31*

Available, shipping in 1 - 2 days

15KS / 15QQ Innovaprene tube length (x 150 mm)

Part Number: 15000.219

Size: 4.8 x 1.6 mm (ID x wall)

€3.49*

Available, shipping in 1 - 2 days

15KS / 15QQ Innovasil tube length (x 150 mm)

Part Number: 15000.230

Size: 1.6 x 1.6 mm (ID x wall)

€1.73*

Available, shipping in 1 - 2 days

15KS / 15QQ Innovasil tube length (x 150 mm)

Part Number: 15000.231

Size: 2.4 x 1.6 mm (ID x wall)

€1.89*

Available, shipping in 1 - 2 days

15KS / 15QQ Innovasil tube length (x 150 mm)

Part Number: 15000.232

Size: 3.2 x 1.6 mm (ID x wall)

€2.09*

Available, shipping in 1 - 2 days

15KS / 15QQ Innovasil tube length (x 150 mm)

Part Number: 15000.233

Size: 4.8 x 1.6 mm (ID x wall)

€2.21*

Available, shipping in 1 - 2 days

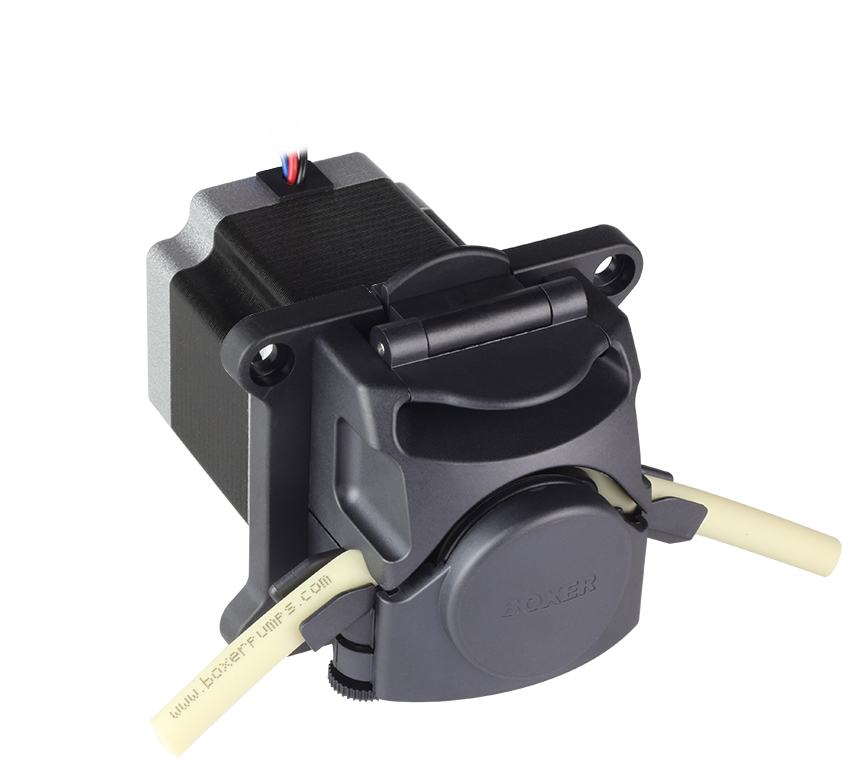

The 15KS is available with 2 different size 24 V stepper motors. The Nema 23 frame offers: › Enhanced speed control › High acceleration › High max speed Supplied with stepper motor only or with 3 driver options.

Flow Data
ID Ø 1.6 mm tube	210 / 190 / 170 µl per revolution (3 / 4 / 6 Roller)
ID Ø 2.4 mm tube	435 / 390 / 320 µl per revolution (3 / 4 / 6 Roller)
ID Ø 3.2 mm tube	730 / 660 / 495 µl per revolution (3 / 4 / 6 Roller)
ID Ø 4.8 mm tube	1340 / 1250 / 830 µl per revolution (3 / 4 / 6 Roller)

Flow data measured at 100 RPM using water and Pharm-a-line tubing

RPM	0 to 800 RPM

Power Comsumption	18.0 to 20.5 W

Tube Materials	Pharm-a-line / Silicone / Norprene G / ED-Plex

Max pressure	2 bar
Motor life	>10000 hour
Weight	890 g

To order samples / small quantities, click on the above 'Purchase Configurator' link or use the 'Add to shopping cart' links below.

Part Number: 15701.100

Motor / Driver Options: Nema 23 | Number of Rollers : 3

€175.91*

Available, shipping in 1 - 2 days

Part Number: 15702.100

Motor / Driver Options: Nema 23 | Number of Rollers : 4

€177.66*

Available, shipping in 1 - 2 days

Part Number: 15703.100

Motor / Driver Options: Nema 23 | Number of Rollers : 6

€181.16*

Available, shipping in 1 - 2 days

Accessories

15KS / 15QQ Innovaprene tube length (x 150 mm)

Part Number: 15000.216

Size: 1.6 x 1.6 mm (ID x wall)

€2.82*

Available, shipping in 1 - 2 days

15KS / 15QQ Innovaprene tube length (x 150 mm)

Part Number: 15000.217

Size: 2.4 x 1.6 mm (ID x wall)

€3.13*

Available, shipping in 1 - 2 days

15KS / 15QQ Innovaprene tube length (x 150 mm)

Part Number: 15000.218

Size: 3.2 x 1.6 mm (ID x wall)

€3.31*

Available, shipping in 1 - 2 days

15KS / 15QQ Innovaprene tube length (x 150 mm)

Part Number: 15000.219

Size: 4.8 x 1.6 mm (ID x wall)

€3.49*

Available, shipping in 1 - 2 days

15KS / 15QQ Innovasil tube length (x 150 mm)

Part Number: 15000.230

Size: 1.6 x 1.6 mm (ID x wall)

€1.73*

Available, shipping in 1 - 2 days

15KS / 15QQ Innovasil tube length (x 150 mm)

Part Number: 15000.231

Size: 2.4 x 1.6 mm (ID x wall)

€1.89*

Available, shipping in 1 - 2 days

15KS / 15QQ Innovasil tube length (x 150 mm)

Part Number: 15000.232

Size: 3.2 x 1.6 mm (ID x wall)

€2.09*

Available, shipping in 1 - 2 days

15KS / 15QQ Innovasil tube length (x 150 mm)

Part Number: 15000.233

Size: 4.8 x 1.6 mm (ID x wall)

€2.21*

Available, shipping in 1 - 2 days

To order samples / small quantities, click on the above 'Purchase Configurator' link or use the 'Add to shopping cart' links below.

Part Number: 15701.101

Motor / Driver Options: Nema 23 + A4 Driver | Number of Rollers : 3

€320.51*

Available, shipping in 1 - 2 days

Part Number: 15702.101

Motor / Driver Options: Nema 23 + A4 Driver | Number of Rollers : 4

€321.17*

Available, shipping in 1 - 2 days

Part Number: 15703.101

Motor / Driver Options: Nema 23 + A4 Driver | Number of Rollers : 6

€324.67*

Available, shipping in 1 - 2 days

Accessories

15KS / 15QQ Innovaprene tube length (x 150 mm)

Part Number: 15000.216

Size: 1.6 x 1.6 mm (ID x wall)

€2.82*

Available, shipping in 1 - 2 days

15KS / 15QQ Innovaprene tube length (x 150 mm)

Part Number: 15000.217

Size: 2.4 x 1.6 mm (ID x wall)

€3.13*

Available, shipping in 1 - 2 days

15KS / 15QQ Innovaprene tube length (x 150 mm)

Part Number: 15000.218

Size: 3.2 x 1.6 mm (ID x wall)

€3.31*

Available, shipping in 1 - 2 days

15KS / 15QQ Innovaprene tube length (x 150 mm)

Part Number: 15000.219

Size: 4.8 x 1.6 mm (ID x wall)

€3.49*

Available, shipping in 1 - 2 days

15KS / 15QQ Innovasil tube length (x 150 mm)

Part Number: 15000.230

Size: 1.6 x 1.6 mm (ID x wall)

€1.73*

Available, shipping in 1 - 2 days

15KS / 15QQ Innovasil tube length (x 150 mm)

Part Number: 15000.231

Size: 2.4 x 1.6 mm (ID x wall)

€1.89*

Available, shipping in 1 - 2 days

15KS / 15QQ Innovasil tube length (x 150 mm)

Part Number: 15000.232

Size: 3.2 x 1.6 mm (ID x wall)

€2.09*

Available, shipping in 1 - 2 days

15KS / 15QQ Innovasil tube length (x 150 mm)

Part Number: 15000.233

Size: 4.8 x 1.6 mm (ID x wall)

€2.21*

Available, shipping in 1 - 2 days

To order samples / small quantities, click on the above 'Purchase Configurator' link or use the 'Add to shopping cart' links below.

Part Number: 15751.101

Motor / Driver Options: Nema 23 + A4p Driver | Number of Rollers : 3

€346.30*

Available, shipping in 1 - 2 days

Part Number: 15752.101

Motor / Driver Options: Nema 23 + A4p Driver | Number of Rollers : 4

€348.05*

Available, shipping in 1 - 2 days

Part Number: 15753.101

Motor / Driver Options: Nema 23 + A4p Driver | Number of Rollers : 6

€351.43*

Available, shipping in 1 - 2 days

Accessories

15KS / 15QQ Innovaprene tube length (x 150 mm)

Part Number: 15000.216

Size: 1.6 x 1.6 mm (ID x wall)

€2.82*

Available, shipping in 1 - 2 days

15KS / 15QQ Innovaprene tube length (x 150 mm)

Part Number: 15000.217

Size: 2.4 x 1.6 mm (ID x wall)

€3.13*

Available, shipping in 1 - 2 days

15KS / 15QQ Innovaprene tube length (x 150 mm)

Part Number: 15000.218

Size: 3.2 x 1.6 mm (ID x wall)

€3.31*

Available, shipping in 1 - 2 days

15KS / 15QQ Innovaprene tube length (x 150 mm)

Part Number: 15000.219

Size: 4.8 x 1.6 mm (ID x wall)

€3.49*

Available, shipping in 1 - 2 days

15KS / 15QQ Innovasil tube length (x 150 mm)

Part Number: 15000.230

Size: 1.6 x 1.6 mm (ID x wall)

€1.73*

Available, shipping in 1 - 2 days

15KS / 15QQ Innovasil tube length (x 150 mm)

Part Number: 15000.231

Size: 2.4 x 1.6 mm (ID x wall)

€1.89*

Available, shipping in 1 - 2 days

15KS / 15QQ Innovasil tube length (x 150 mm)

Part Number: 15000.232

Size: 3.2 x 1.6 mm (ID x wall)

€2.09*

Available, shipping in 1 - 2 days

15KS / 15QQ Innovasil tube length (x 150 mm)

Part Number: 15000.233

Size: 4.8 x 1.6 mm (ID x wall)

€2.21*

Available, shipping in 1 - 2 days

To order samples / small quantities, click on the above 'Purchase Configurator' link or use the 'Add to shopping cart' links below.

Part Number: 15701.105

Motor / Driver Options: Nema 23 + iD Driver | Number of Rollers : 3

€391.13*

Available, shipping in 1 - 2 days

Part Number: 15702.105

Motor / Driver Options: Nema 23 + iD Driver | Number of Rollers : 4

€392.88*

Available, shipping in 1 - 2 days

Part Number: 15703.105

Motor / Driver Options: Nema 23 + iD Driver | Number of Rollers : 6

€396.36*

Available, shipping in 1 - 2 days

Accessories

15KS / 15QQ Innovaprene tube length (x 150 mm)

Part Number: 15000.216

Size: 1.6 x 1.6 mm (ID x wall)

€2.82*

Available, shipping in 1 - 2 days

15KS / 15QQ Innovaprene tube length (x 150 mm)

Part Number: 15000.217

Size: 2.4 x 1.6 mm (ID x wall)

€3.13*

Available, shipping in 1 - 2 days

15KS / 15QQ Innovaprene tube length (x 150 mm)

Part Number: 15000.218

Size: 3.2 x 1.6 mm (ID x wall)

€3.31*

Available, shipping in 1 - 2 days

15KS / 15QQ Innovaprene tube length (x 150 mm)

Part Number: 15000.219

Size: 4.8 x 1.6 mm (ID x wall)

€3.49*

Available, shipping in 1 - 2 days

15KS / 15QQ Innovasil tube length (x 150 mm)

Part Number: 15000.230

Size: 1.6 x 1.6 mm (ID x wall)

€1.73*

Available, shipping in 1 - 2 days

15KS / 15QQ Innovasil tube length (x 150 mm)

Part Number: 15000.231

Size: 2.4 x 1.6 mm (ID x wall)

€1.89*

Available, shipping in 1 - 2 days

15KS / 15QQ Innovasil tube length (x 150 mm)

Part Number: 15000.232

Size: 3.2 x 1.6 mm (ID x wall)

€2.09*

Available, shipping in 1 - 2 days

15KS / 15QQ Innovasil tube length (x 150 mm)

Part Number: 15000.233

Size: 4.8 x 1.6 mm (ID x wall)

€2.21*

Available, shipping in 1 - 2 days

Additional Accessories

PWM Flow Controller

€67.33*

Details

Pharm-a-line (1.6 mm wall)

€18.81*

Details

15KS / 15QQ Innovasil tube length (x 150 mm)

€1.73*

Details

Tube Fittings

€0.54*

Details

25K Lever (spare part)

€10.25*

Details

15KS Head Only

€103.16*

Details

Innovasil (1.6 mm wall)

€8.05*

Details

15KS / 15QQ Pharmaline tube length (x 150 mm)

€4.04*

Details

15KS / 15QQ Innovaprene tube length (x 150 mm)

€2.82*

Details

All data is representative for selection purposes, however does not indicate maximum or minimum values. These products are sold as components which are to be incorporated into a device. It is the responsibility of the manufacturer of the device to determined the suitability of the pump for the application and to ensure compliance will all applicable approvals and regulations. These products are not suitable for in-vivo applications.
