DBMX200 Series

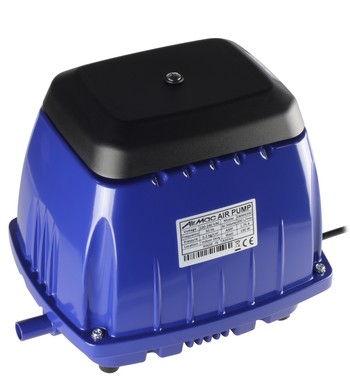

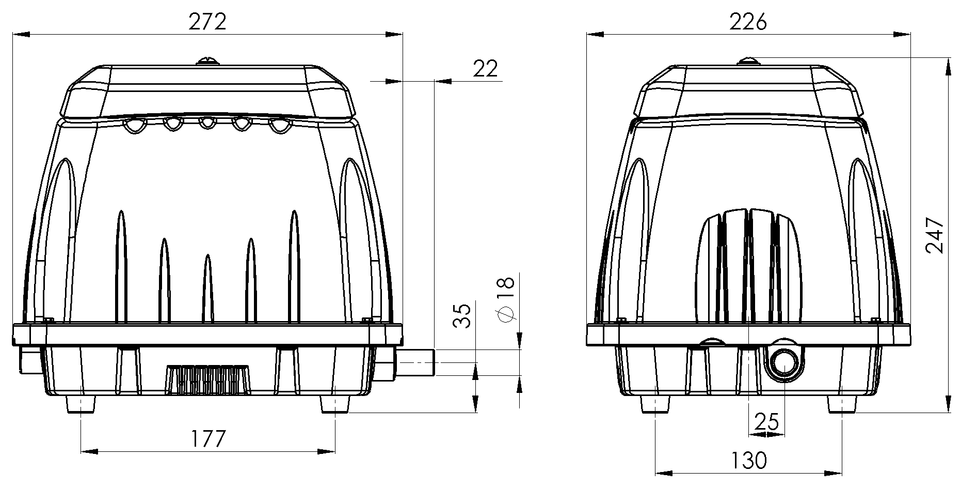

The DBMX200 is the 200 l/min linear diaphragm pump from the Airmac DBMX Series. It offers low noise with stable performance over the long lifespan of the pump. It is sold complete with a robust and sound reducing aluminium housing, integrated inlet filter, rubber feet, outlet port with additional rubber elbow connector and clamps, power cord and EU plug. To accomodate the increased performance when compared to the 80, 100 and 120 l/min DBMX pumps, the height of the housing is increased by 25mm.

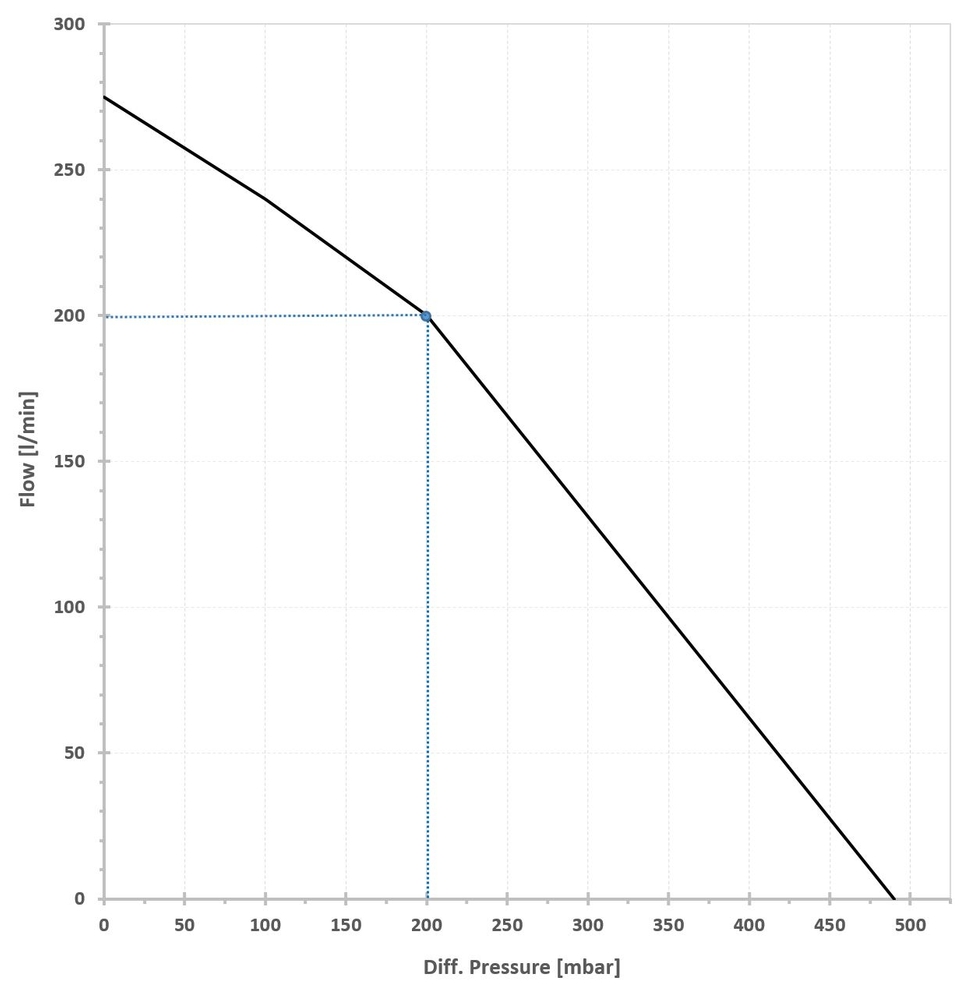

› Flow rate of 200 l/mim against 200 mbar
› Low power consumption (230 W)
› Long life linear drive
› Safety switch to protect against diaphragm failure
› Fully serviceable (⇒ service kits)

Flow (at 200 mbar)	200 l/min
Operating Pressure Range	100 to 250 mbar
Operating Flow Range	235 to 160 l/min

Current Consumption (at 200 mbar))	1.7 A
Power Consumption (at 200 mbar)	230 W

Cable Length	1.8 m
Cable Termination	EU Plug

Approval	CE (according to EN60335, electrical household appliances), RoHS

Operating Temperature Range	-10 to +40 °C
Operating Humidity Range	20 to 80% RH

Inlet	Via Integrated filter (under housing cover as replaceable item)
Outlet	18 mm OD port

Weight	12.8 kg

To order samples / small quantities, click on the above 'Purchase Configurator' link or use the 'Add to shopping cart' links below.

Part Number: 190200.230

Model: DBMX200 (230 V / 50 Hz with EU plug)

€717.51*

Available, shipping in 1 - 2 days

All data is representative for selection purposes, however does not indicate maximum or minimum values. These products are sold as components which are to be incorporated into a device. It is the responsibility of the manufacturer of the device to determined the suitability of the pump for the application and to ensure compliance will all applicable approvals and regulations. These products are not suitable for in-vivo applications.
