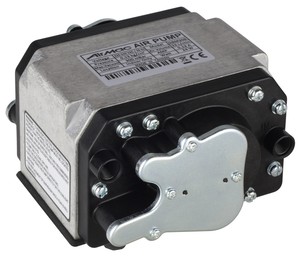

DBM30B

The DBM30B is the 30 l/min (at 150 mbar) miniature linear diaphragm pump from the Airmac DBM Series. With an OEM component deisgn these pumps are ideally suited to applications requiring long life, compact design and low pressure differentials. This series has a metal housing for very low sound levels. Examples applications are air / gas monitoring, medical massage systems and vacuum holding. They are supplied with inlet and outlet 1/8" NPT porting, 2 x screw-in barb connectors), integrated M4 vibration mounts and connection leads. Available voltages: 230 V / 50 Hz.

› Flow rate to 58 l/mim
› OEM component with inlet and outlet ports
› Low sound level
› Low power consumption
› Lightweight / compact
› Integrated M4 vibration mounts
› Long life linear drive

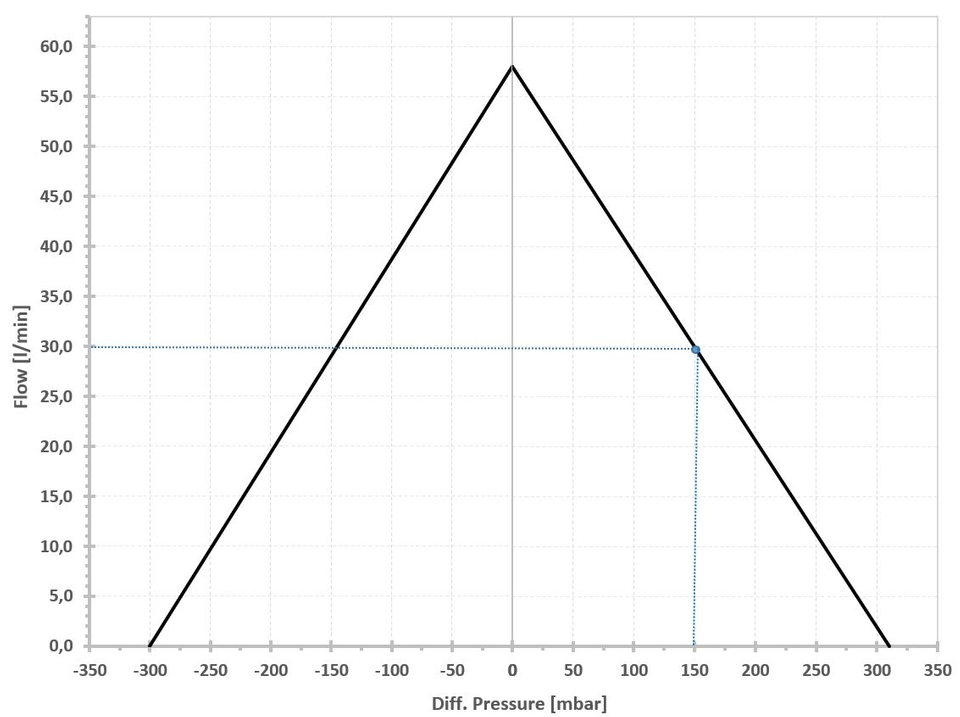

Operating Flow Range	0 to 58 l/min
Operating Pressure Range	-300 to +310 mbar
Flow (at 150 mbar)	30.0 l/min

Power Consumption (at 150 mbar)	24 W

Current Consumption (at 150 mbar)
230 V / 50 Hz	0.13 A

Cable Length	370 mm
Cable Termination	10 mm stripped / soldered

Approval	CE (according to EN60335, electrical household appliances), RoHS

Operating Temperature Range	-10 to +40 °C
Operating Humidity Range	20 to 80% RH

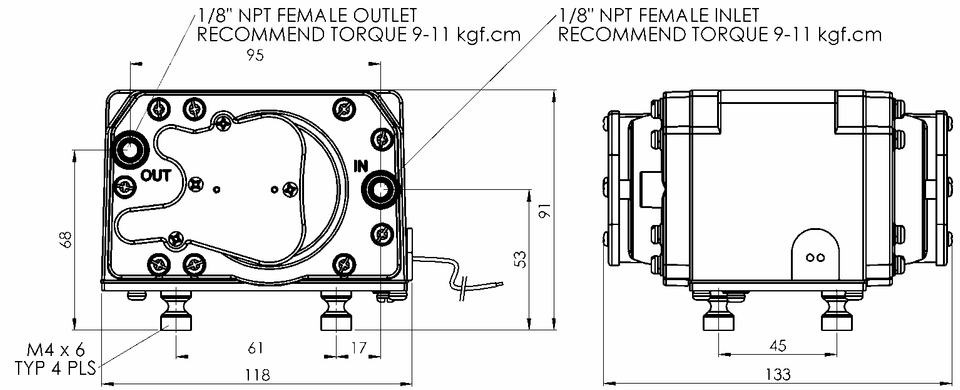

Inlet	1/8" NPT (supplied with screw-in barb connector)
Outlet	1/8"NPT(supplied with screw-in barb connector)

Weight	1.9 kg

To order samples / small quantities, click on the above 'Purchase Configurator' link or use the 'Add to shopping cart' links below.

Part Number: 140030.230

Model: DBM30B

€195.94*

Available, shipping in 1 - 2 days

All data is representative for selection purposes, however does not indicate maximum or minimum values. These products are sold as components which are to be incorporated into a device. It is the responsibility of the manufacturer of the device to determined the suitability of the pump for the application and to ensure compliance will all applicable approvals and regulations. These products are not suitable for in-vivo applications.
