16K Series

The 16K series is a miniature liquid diaphragm pump designed for wide elections of applications such as medical diagnostics, pharmaceutical, food processing, ink jet printing and water treatment industires.

As standard the pump includes inlet pulsation chamber to ensure smooth liquid transfer.

Motor options include iron core and brushless (BLDC) with integrated driver.

› Flow rate to 310 ml/min
› Damping chamber for low pulsation
› Compact design

The pump is self priming and can run dry without damage for long periods of time.

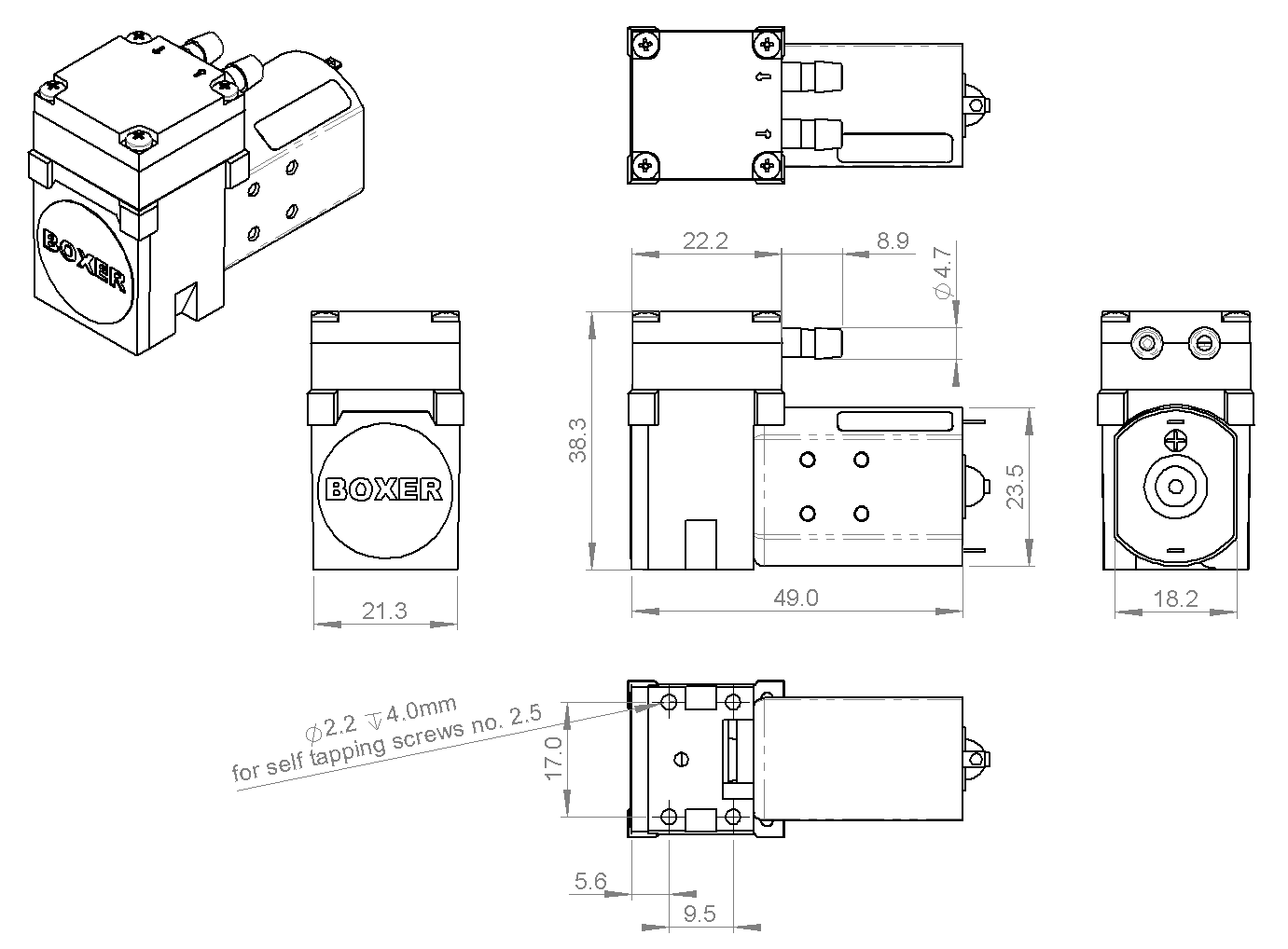

16K with quality DC motor in 12 or 24 V

Free Flow	225 ml/min
Max Pressure	2.0 bar
Max Vacuum	8.0 m H20

Max Suction Height	3.0 m H20

Voltage Options	12 / 24 V DC
Power Consumption	1.5 to 2.7 W

Elastomers	EPDM
Other Wetted Parts	PPS (polyphenylene sulphide)

Weight	60 g

	Full data available in PDF datasheet

To order samples / small quantities, click on the above 'Purchase Configurator' link or use the 'Add to shopping cart' links below.

Note: Flow curves above are for 24 V DC motor. See datasheet for 12 V DC motor flow curves.

Part Number: 16030.650

Voltage: 12 V DC | Diaphragm Material: EPDM

€83.42*

Available, shipping in 1 - 2 days

Part Number: 16030.655

Voltage: 12 V DC | Diaphragm Material: FKM (Viton)

€86.76*

Available, shipping in 1 - 2 days

Part Number: 16030.660

Voltage: 24 V DC | Diaphragm Material: EPDM

€83.42*

Available, shipping in 1 - 2 days

Part Number: 16030.665

Voltage: 24 V DC | Diaphragm Material: FKM (Viton)

€86.76*

Available, shipping in 1 - 2 days

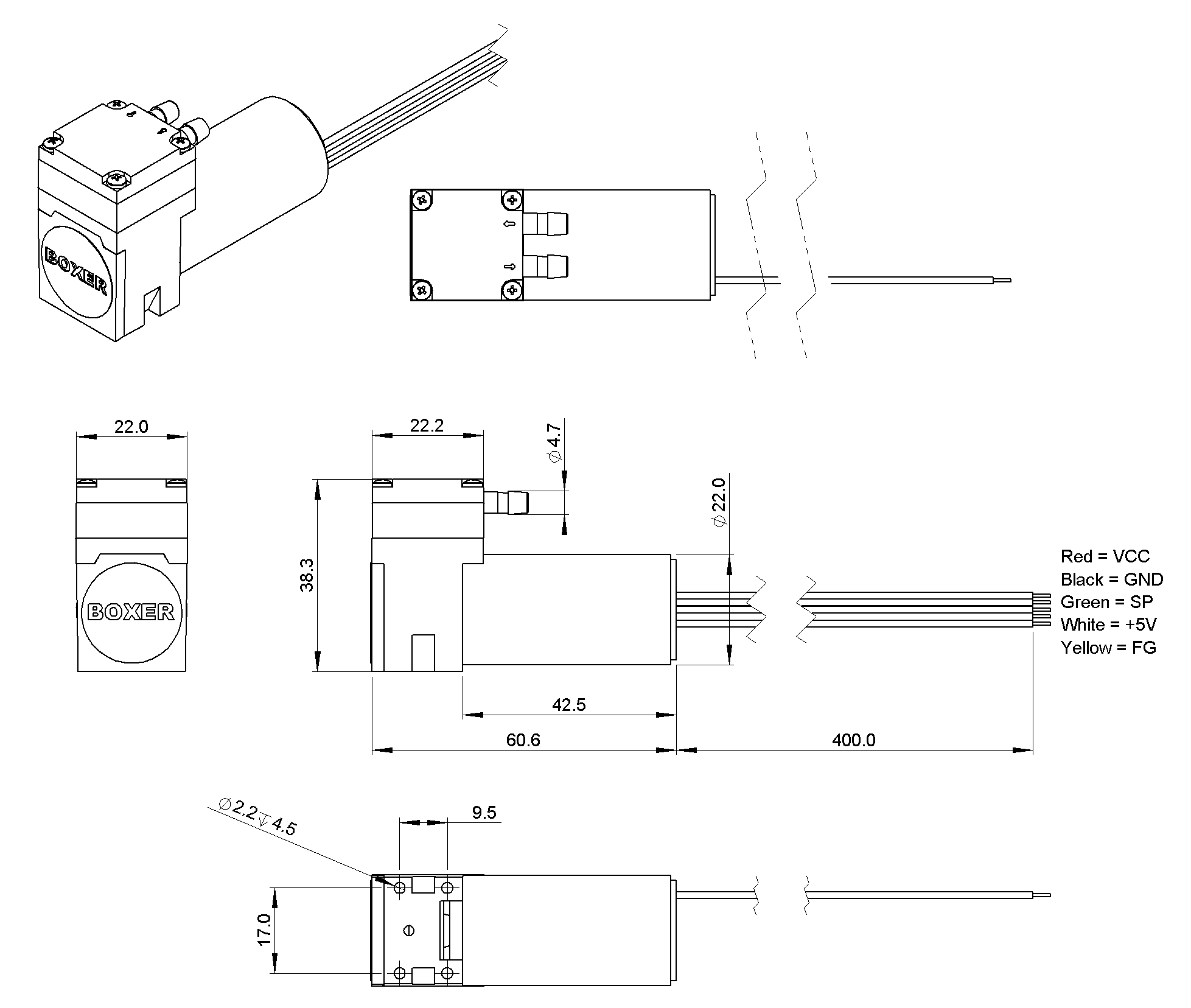

16K with brushless DC (BLDC) motor 12 to 24 V supply with 0 to 5 V speed control and speed output

Free Flow	310 ml/min
Max Pressure	2.0 bar
Max Vacuum	8.0 m H20

Max Suction Height	4.0 m H20

Voltage	12 to 24 V DC
Power Consumption	4.0 to 9.0 W

Elastomers	EPDM
Other Wetted Parts	PPS (polyphenylene sulphide)

Weight	85 g

	Full data available in PDF datasheet

To order samples / small quantities, click on the above 'Purchase Configurator' link or use the 'Add to shopping cart' links below.

Note: Flow curve above is with EPDM diaphragm. See datasheet for FKM flow curve.

Part Number: 16008.660

Diaphragm Material: EPDM

€179.45*

Part Number: 16008.665

Diaphragm Material: FKM (Viton)

€186.63*

All data is representative for selection purposes, however does not indicate maximum or minimum values. These products are sold as components which are to be incorporated into a device. It is the responsibility of the manufacturer of the device to determined the suitability of the pump for the application and to ensure compliance will all applicable approvals and regulations. These products are not suitable for in-vivo applications.
