19K Series

The 19K series is a diaphragm pump designed for liquids and gas / liquid mixtures. A combination of high hydraulic performance and damping chambers to reduce pulsation makes this a very versatile pump for wide range of applications.

High performance engineering plastics also allows use also in high temperature applications.

Both brushed and brushless motor options are available.

› Flow rate to 0.8 l/min
› Damping chamber for low pulsation
› Strong gas / liquid mixture performance
› Compact design

A gas only verison of this pump (19K) is also available which runs at higher speed and stroke.

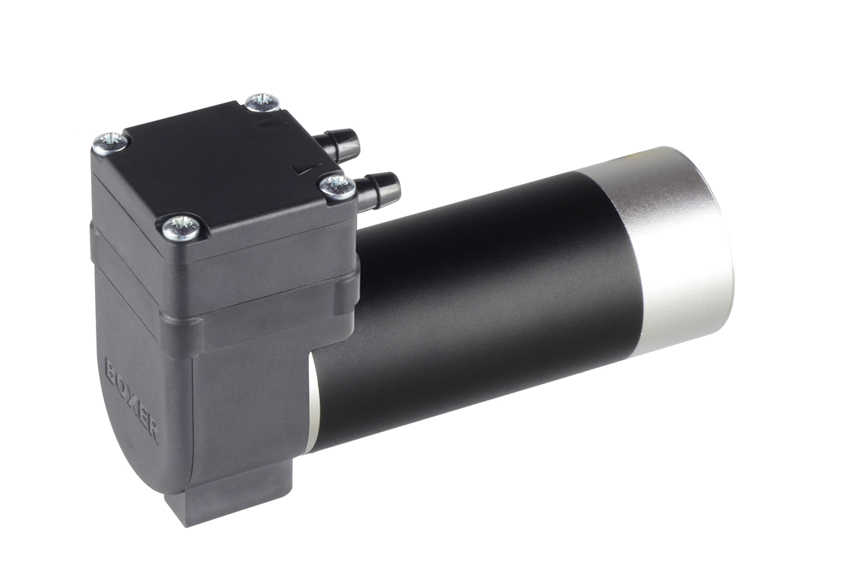

Brushless DC (BLDC) motor in 12 or 24 V with 0 to 5 V speed control, speed signal output and choice of 3 diaphragm materials.

Free Flow	800 ml/min
Max Pressure	2.0 bar
Max Vacuum	8.0 m H20

Max Suction Height	3.0 m H20

Voltage Options	12 / 24 V DC
Power Consumption	3.0 to 10.0 W

Elastomer Options	Nitrile / FKM (Viton) / EPDM
Other Wetted Parts	PPS (polyphenylene sulphide)

Weight	175 g

	Full data available in PDF datasheet

To order samples / small quantities, click on the above 'Purchase Configurator' link or use the 'Add to shopping cart' links below.

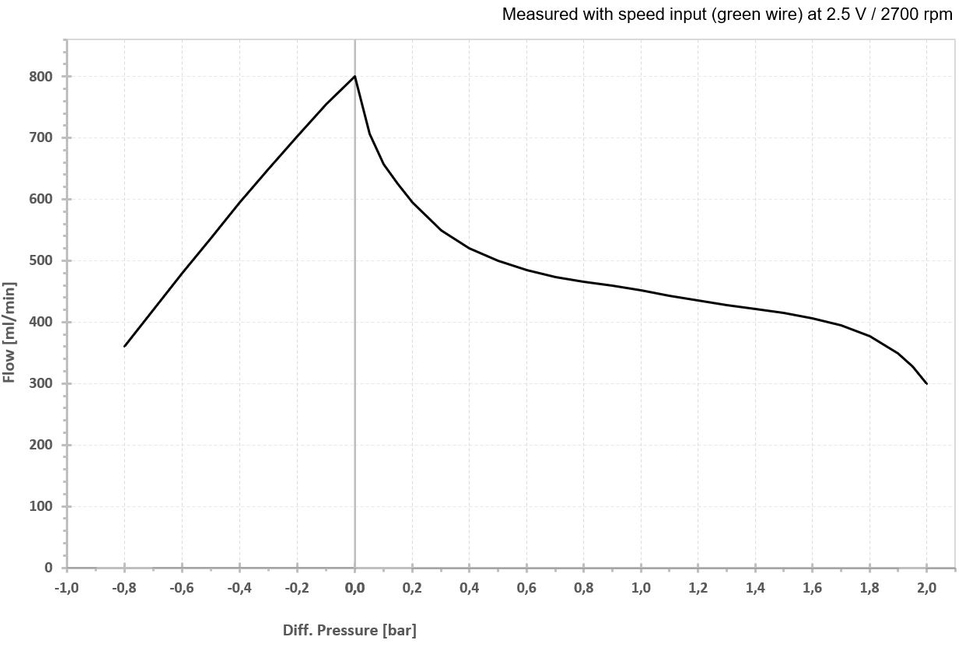

Note: Flow curve above is with nitrile diaphragm. See datasheet for FKM and EPDM flow curves.

Part Number: 19201.651

Voltage: 12 V DC | Diaphragm Material: Nitrile

€136.62*

Available, shipping in 1 - 2 days

Part Number: 19201.652

Voltage: 12 V DC | Diaphragm Material: EPDM

€136.62*

Available, shipping in 1 - 2 days

Part Number: 19201.653

Voltage: 12 V DC | Diaphragm Material: FKM (Viton)

€142.10*

Available, shipping in 1 - 2 days

Part Number: 19201.661

Voltage: 24 V DC | Diaphragm Material: Nitrile

€136.62*

Available, shipping in 1 - 2 days

Part Number: 19201.662

Voltage: 24 V DC | Diaphragm Material: EPDM

€136.62*

Available, shipping in 1 - 2 days

Part Number: 19201.663

Voltage: 24 V DC | Diaphragm Material: FKM (Viton)

€142.10*

Available, shipping in 1 - 2 days

Accessories

19K Vibration Mount

Part Number: 19000.001

€5.58*

Available, shipping in 1 - 2 days

19K / 10KD / 3K Vibration Mounts

Part Number: 19000.002

€3.48*

Available, shipping in 1 - 2 days

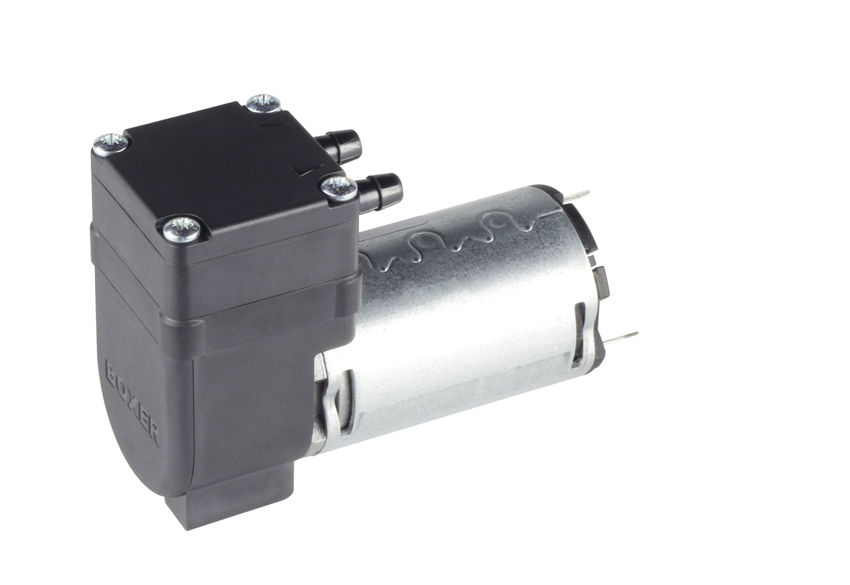

Quality DC motor in 12 or 24 V .

Free Flow	700 ml/min
Max Pressure	2.0 bar
Max Vacuum	8.0 m H20

Max Suction Height	3.0 m H20

Voltage Options	12 / 24 V DC
Power Consumption	2.6 to 9.6 W

Diaphragm	Nitrile
Other Wetted Parts	PPS (polyphenylene sulphide)

Weight	175 g

	Full data available in PDF datasheet

To order samples / small quantities, click on the above 'Purchase Configurator' link or use the 'Add to shopping cart' links below.

Note: BLDC versions are available at the same cost.

Part Number: 19201.016

Voltage: 12 V DC / Diaphragm Material: Nitrile

€136.62*

Available, shipping in 1 - 2 days

Part Number: 19201.017

Voltage: 24 V DC / Diaphragm Material: Nitrile

€136.62*

Available, shipping in 1 - 2 days

Accessories

19K / 10KD / 3K Vibration Mounts

Part Number: 19000.002

€3.48*

Available, shipping in 1 - 2 days

19K / 10KD / 3K Vibration Mounts

Part Number: 19000.002

€3.48*

Available, shipping in 1 - 2 days

All data is representative for selection purposes, however does not indicate maximum or minimum values. These products are sold as components which are to be incorporated into a device. It is the responsibility of the manufacturer of the device to determined the suitability of the pump for the application and to ensure compliance will all applicable approvals and regulations. These products are not suitable for in-vivo applications.
