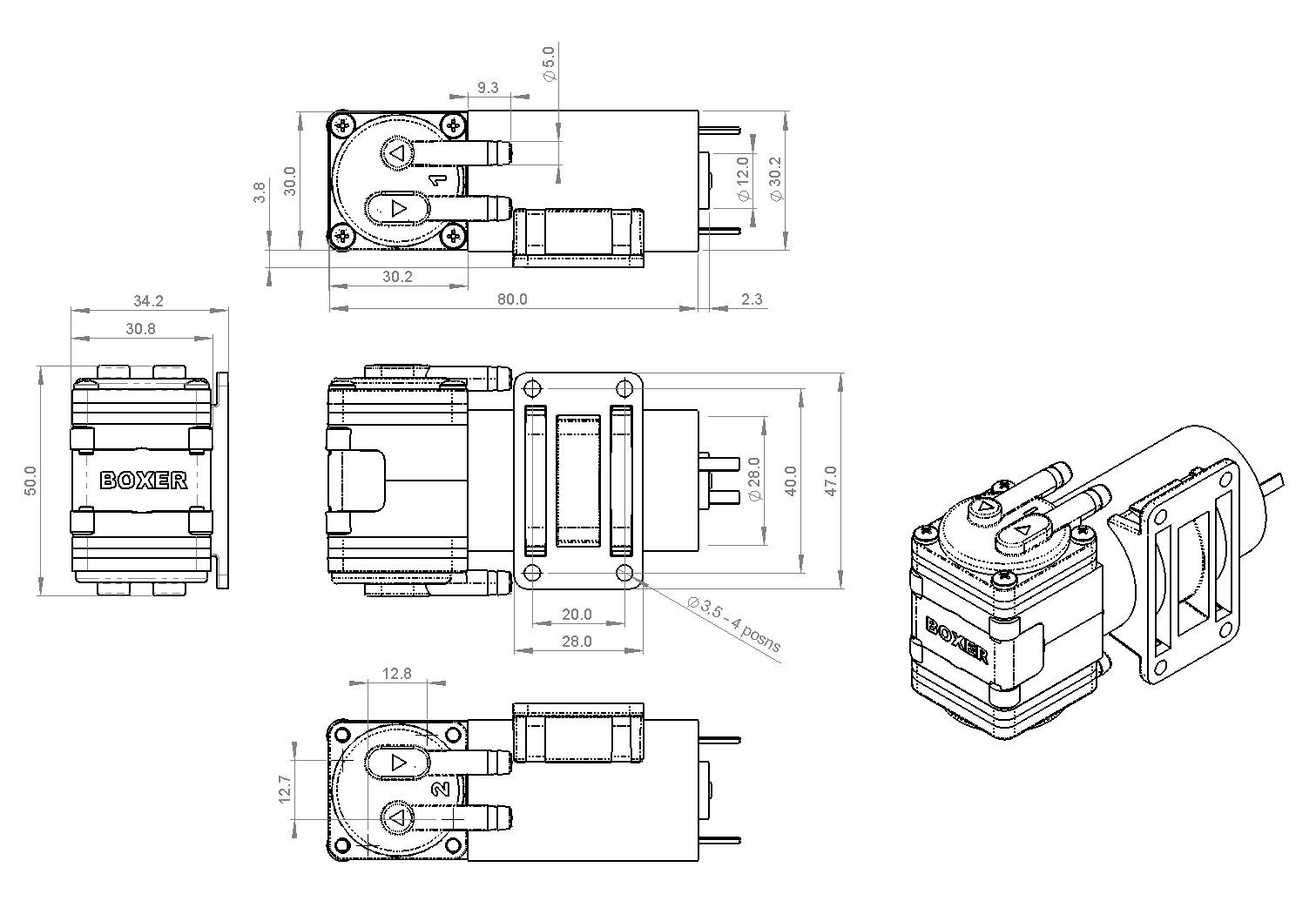

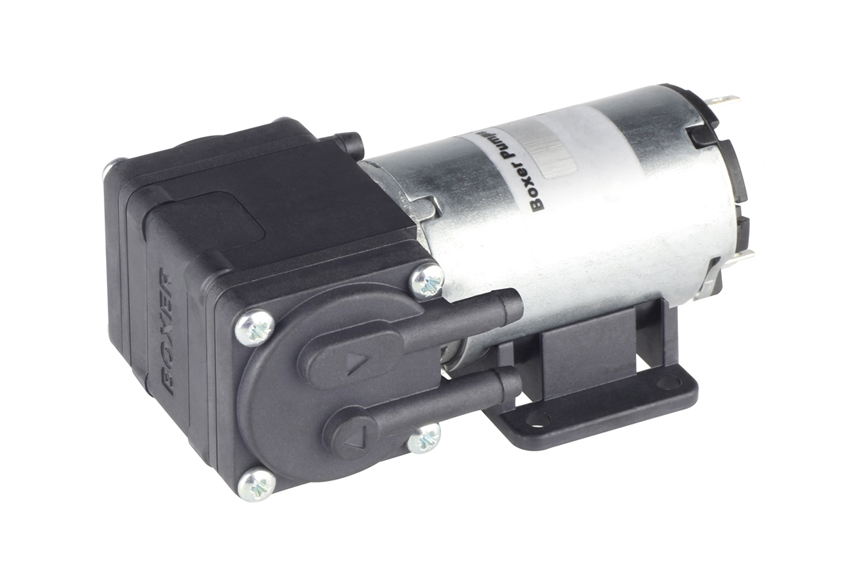

10KD Series
The 10KD series is an extremely compact double headed liquid diaphragm pump. With each head 180° out-of-phase pulsation is minimised compared to a single headed pump.
Iron core and brushless DC motor options are available.
› Flow rate to 1.0 l/min
› Low pulsation
› Extremely compact
› Encoder option available for rpm feedback
A mounting base is supplied as standard.
A gas version of this pump is also available (10KD).
Flow control is available in combination with PWM Flow Controller.
Quality brushed motor available in 12 and 24 V.
| Free Flow | 1.0 l/min |
| Max Pressure | 2.0 bar |
| Max Vacuum | -750 mbar |
| Free Flow (gas / dry) | 1.6 l/min |
| Max suction Height (dry) | 5 m H2O |
| Voltage Options | 12 / 24 V DC |
| Max Ambient Operating Temperature | 50 °C |
| Max Media Temperature | 100 °C |
| Elastomers Options | Nitrile, Silicon |
| Other Wetted Parts | PPS (polyphenylene sulphide) |
| Weight | 185 g |
To order samples / small quantities, click on the above 'Purchase Configurator' link or use the 'Add to shopping cart' links below.
Part Number:
10202.001
Motor / Voltage:
Brushed Motor 12 V
€157.89*
Available, shipping in 1 - 2 days
Part Number:
10202.002
Motor / Voltage:
Brushed Motor 24 V
€157.89*
Available, shipping in 1 - 2 days

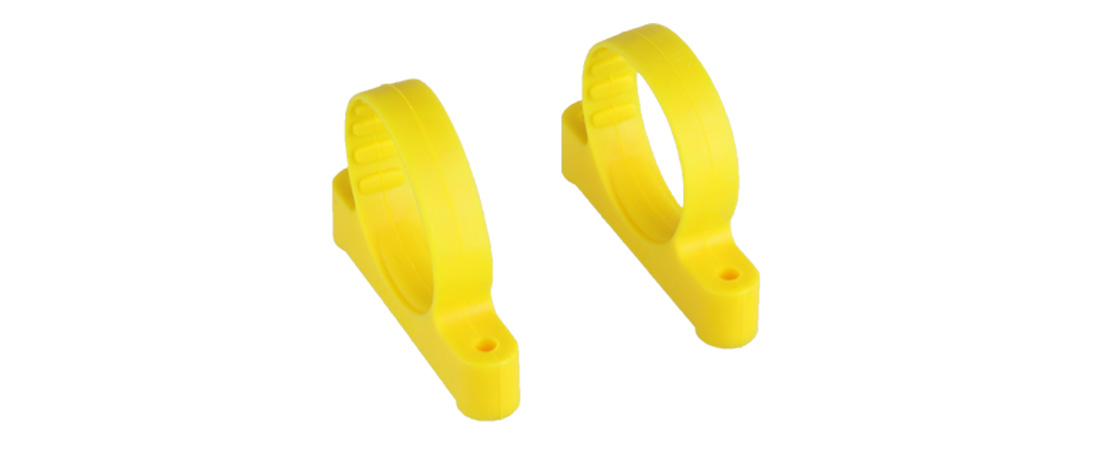

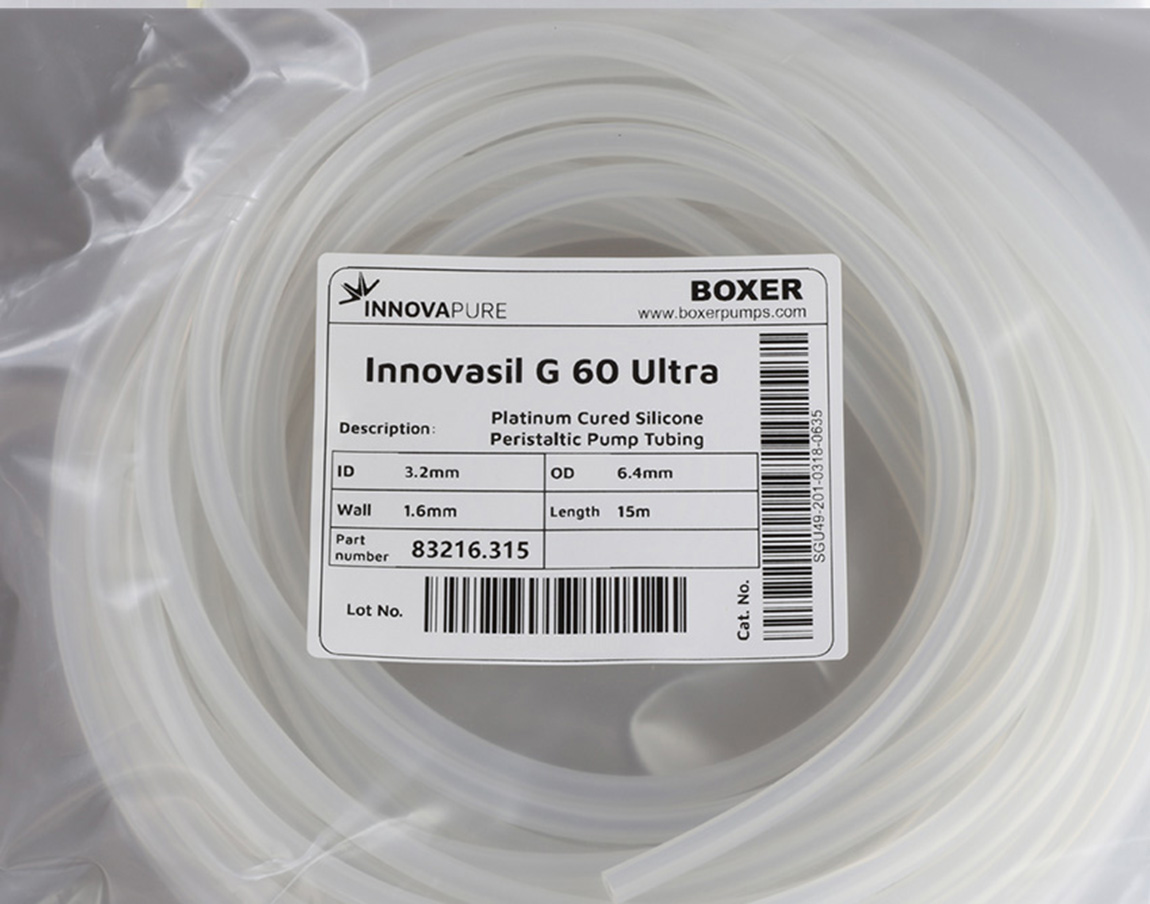

Additional Accessories
All data is representative for selection purposes, however does not indicate maximum or minimum values. These products are sold as components which are to be incorporated into a device. It is the responsibility of the manufacturer of the device to determined the suitability of the pump for the application and to ensure compliance will all applicable approvals and regulations. These products are not suitable for in-vivo applications.
