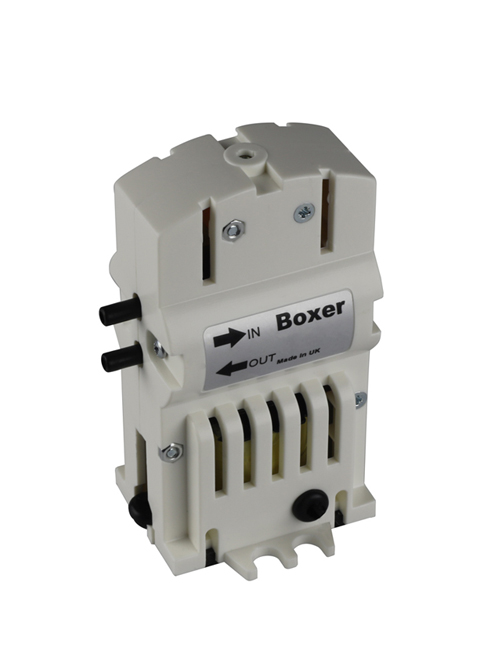

8K Series
The 8K series is a vibrating armature gas pump designed for long life continuous gas sampling applications. Under normal conditions these pumps will run for 5+ years (50,000+ hours).
The unique compact vertical constructions allows installation in tight spaces.
Flow can be adjusted via external screw.
The vibrating armature drive is essentially wear free providing superior life in comparison to all other motor types. Available in 24 V / 50 Hz, 110 V / 60 Hz, 230 V / 50Hz.
| Free flow | 2.75 l/min |
| Max pressure | 125 mbar |
| Max vacuum | -140 mbar |
| Voltage options | 24 V / 50 Hz, 110 V / 60 Hz, 230 V / 50 Hz |
| Current consumption (24 V / 110 V / 230 V) | 115 mA / 33 mA / 20 mA |
| Elastomers | Neoprene and Silicone |
| Other Wetted Parts | PPO (Polyphenylene Oxide) |
| Weight | 235 g |
To order samples / small quantities, click on the above 'Purchase Configurator' link or use the 'Add to shopping cart' links below.
Part Number:
8024.024
Motor / Voltage:
24 V / 50 Hz
€114.58*
Available, shipping in 1 - 2 days
Part Number:
8110.110
Motor / Voltage:
110 V / 60 Hz
€114.60*
Available, shipping in 1 - 2 days
Part Number:
8230.230
Motor / Voltage:
230 V / 50 Hz
€114.58*
Available, shipping in 1 - 2 days
Additional Accessories
All data is representative for selection purposes, however does not indicate maximum or minimum values. These products are sold as components which are to be incorporated into a device. It is the responsibility of the manufacturer of the device to determined the suitability of the pump for the application and to ensure compliance will all applicable approvals and regulations. These products are not suitable for in-vivo applications.
