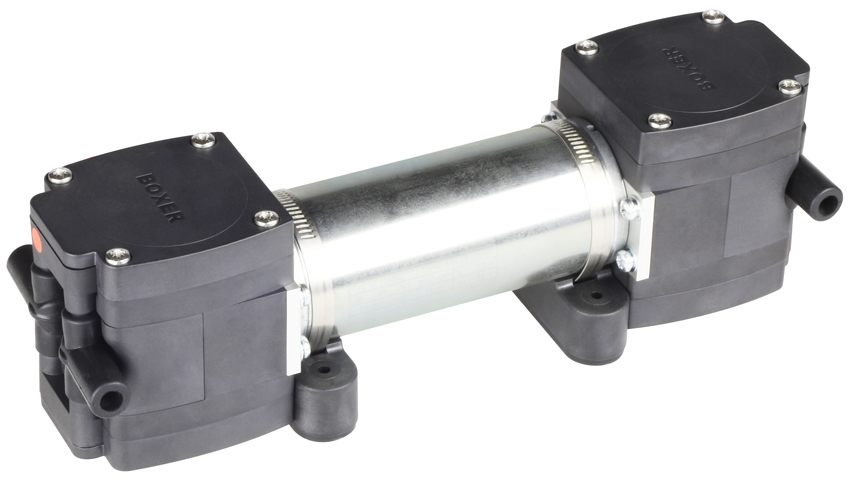

7KQ Series
The 7KQ series is unique high performance gas diaphragm which is particularly suited for gas / dust monitoring as well as industrial vacuum applications. The pump is fitted with internal damping chambers and resonanting membrane. The dual head arrangement further balances flow.
The use of high performance plastics facilitates use in high temperature applications such as combusion gas analysis. The overall construction is extremely robust.
Vibration mounts are fitted as standard.
Quality brushed motor available in 12 and 24 V
| Free flow | 62 l/min |
| Max pressure | 600 mbar |
| Max vacuum | -400 mbar (-850 mBar in series) |
| Voltage options | 12 / 24 V DC |
| Power Consumption | 60 to 80 W |
| Elastomers | Nitrile |
| Other wetted parts | PPS (Polyphenylene Sulphide) |
| Configuration - Standard | Each head pair connected in parallel (2 inlets / 2 outlets) |
| Configuration - Parallel | As standard additionally in parallel (1 inlet / 1 outlet) |
| Configuration - Series | As standard additionally in series (1 inlet / 1 outlet) |
| Tube connections | Barb for 6 mm to 8 mm ID tube |
| Max ambient temperature | 50°C |
| Max media temperature | 100°C |
| Weight |
1870g
|
To order samples / small quantities, click on the above 'Purchase Configurator' link or use the 'Add to shopping cart' links below.
Part Number:
7004.012
Motor / Voltage:
Brushed Motor 12 V
€484.57*
Available, shipping in 1 - 2 days
Part Number:
7004.024
Motor / Voltage:
Brushed Motor 24 V
€484.58*
Available, shipping in 1 - 2 days

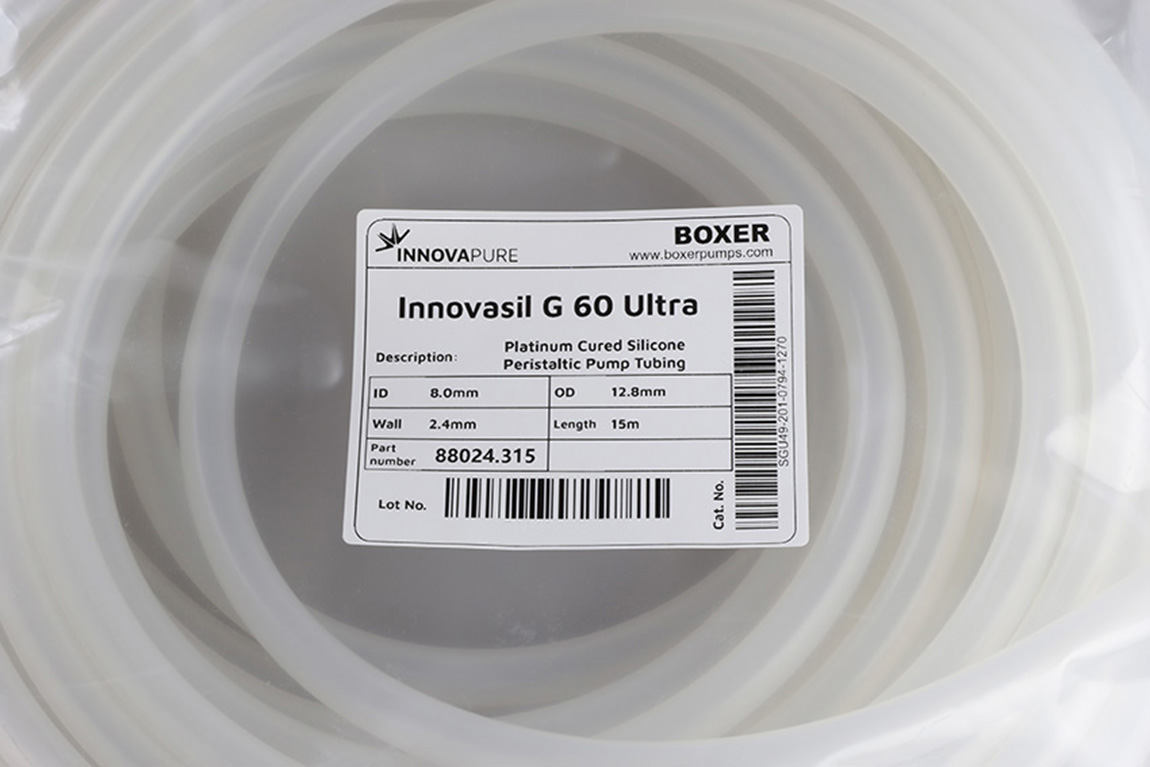

Additional Accessories
All data is representative for selection purposes, however does not indicate maximum or minimum values. These products are sold as components which are to be incorporated into a device. It is the responsibility of the manufacturer of the device to determined the suitability of the pump for the application and to ensure compliance will all applicable approvals and regulations. These products are not suitable for in-vivo applications.
