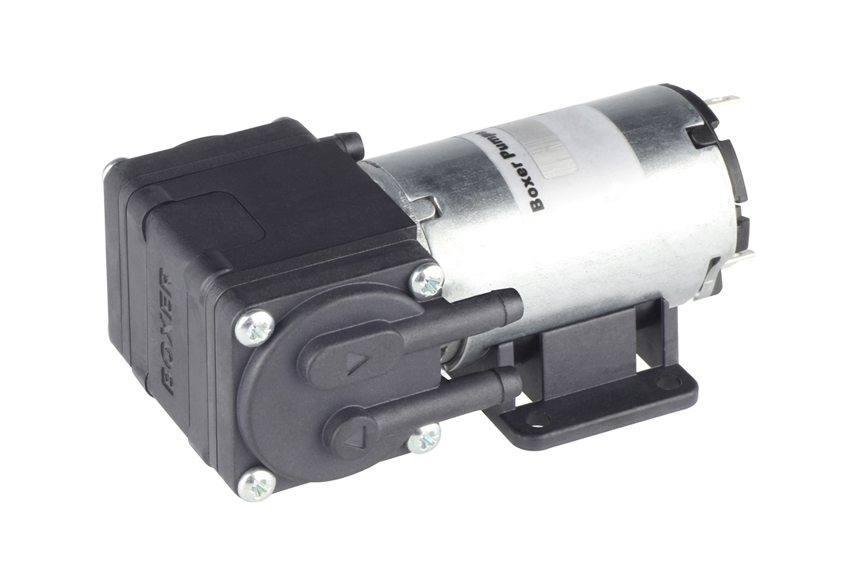

10KD Series
The 10KD series is a compact, robust and versatile double headed gas diaphragm pump. The use of high performance engineering plastics and elastomers allow use in high temperature applications. 2 heads allows flexibility of paralllel or series connection to extend the pressure / vacuum capability or to pump 2 totally separate gasses.
This series is offered with brushed and BLDC motors.
› Flow rate to 6.0 l/min
› Robust / long life
A mounting base is supplied as standard.
Flow control is available in combination with PWM Flow Controller.
Quality brushed motor available in 12 and 24 V.
| Parallel Connection: | |
| Free Flow | 6.0 l/min |
| Max Pressure | 0.8 bar |
| Max Vacuum | -500 mbar |
| Series Connection: | |
| Free Flow | 3.0 l/min |
| Max Pressure | 2.1 bar |
| Max Vacuum | -700 mbar |
| Voltage Options | 12 / 24 V DC |
| Max Ambient Operating Temperature | 50 °C |
| Max Media Temperature | 100 °C |
| Elastomers Options | Nitrile / EPDM |
| Other Wetted Parts | PPS (polyphenylene sulphide) |
| Weight | 185 g |
To order samples / small quantities, click on the above 'Purchase Configurator' link or use the 'Add to shopping cart' links below.
Part Number:
10102.001
Motor / Voltage:
Brushed Motor 12 V
€157.88*
Available, shipping in 1 - 2 days
Part Number:
10102.002
Motor / Voltage:
Brushed Motor 24 V
€157.88*
Available, shipping in 1 - 2 days
Additional Accessories
All data is representative for selection purposes, however does not indicate maximum or minimum values. These products are sold as components which are to be incorporated into a device. It is the responsibility of the manufacturer of the device to determined the suitability of the pump for the application and to ensure compliance will all applicable approvals and regulations. These products are not suitable for in-vivo applications.
