9K Series

The 9K series is a unique, cost effective and extremely versatile miniature peristaltic pump range designed for accurate dispensing of liquids.

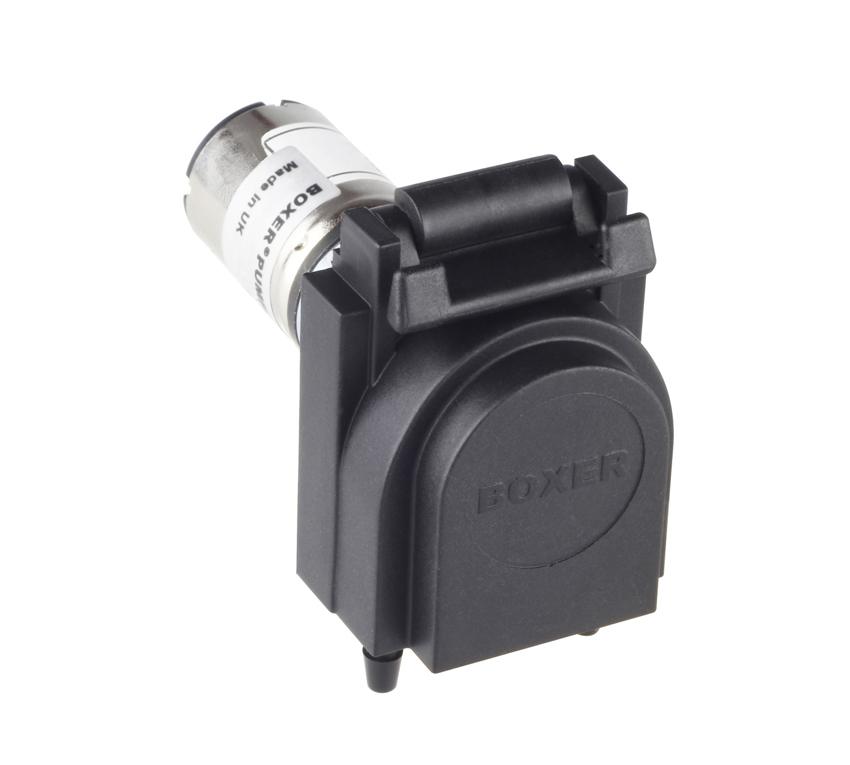

DC / Gear motor versions offer a range of 33 to 520 rpm with optional shaft encoder providing accurate feedback of rotor speed.

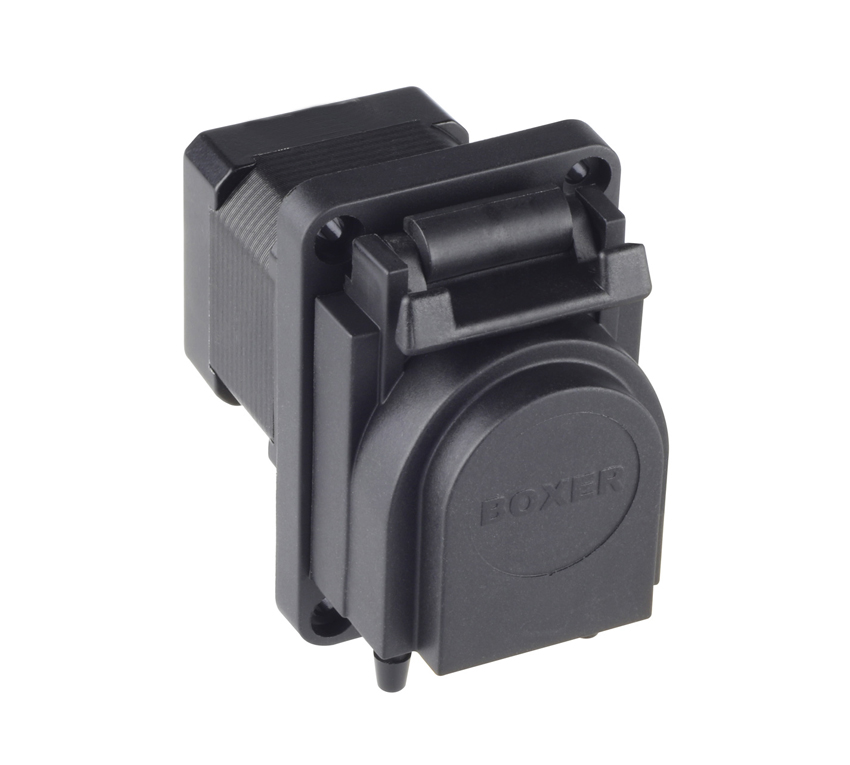

Stepper motor versions offer the versatility of finite speed control. 3 supporting driver options are vailable.

› Flow rates from 1.4 ml/min (or lower using stepper motor) to 200 ml/min
› Continuous tube or tube sets
› Easy tube change
› 4 different tube sizes
› 4 different tube materials
› 2 channels available for 1 mm tubes
› 3 different roller configurations

Tubing / tube clips must always be ordered separately.

The 9K precedes the 9QQ series. For new applications refer to 9QQ.

Flow control of the DC / Gear motor versions is available in combination with PWM Flow Controller.

Economic and versatile available in 12 and 24 V.

Flow Data
ID Ø 1.0 mm tube	48 / 45 / 35 µl per revolution (3 / 4 / 6 Roller)
ID Ø 2.0 mm tube	160 / 148 / 106 µl per revolution (3 / 4 / 6 Roller)
ID Ø 3.0 mm tube	345 / 295 / 173 µl per revolution (3 / 4 / 6 Roller)
ID Ø 3.5 mm tube	381 / 325 / 191 µl per revolution (3 / 4 / 6 Roller)

RPM (at nominal voltage)
12 V	116 / 315 / 520
24 V	33 / 107 / 315 / 520

Power Consumption	3.5 to 9.5 W

Tube Materials	Pharm-a-line / Silicone / Lagoprene / ED-Plex

Tube Connectors
ID Ø 1.0 mm tube (internal)	1.5 to 2.0 mm* (external)
ID Ø 2.0 mm tube (internal)	2.0 to 2.5 mm* (external)
ID Ø 3.0 mm tube (internal)	3.0 to 3.5 mm* (external)
ID Ø 3.5 mm tube (internal)	3.0 to 3.5 mm* (external)
	*depends on tube material being used
	Further information ⇒ Accessories

Max pressure	1 bar
Max vacuum	-950 mbar
DC motor life	>2000 hour
Weight	125 g
Optional encoder	10 pulses per motor revolution (associated rotor speed depends in gear ratio)

All data measured with 'run-in' Pharm-a-line continuous tubing and H2O.
