7KQ Series
The 7KQ series is unique high performance gas diaphragm which is particularly suited for gas / dust monitoring as well as industrial vacuum applications. The pump is fitted with internal damping chambers and resonanting membrane. The dual head arrangement further balances flow.
The use of high performance plastics facilitates use in high temperature applications such as combusion gas analysis. The overall construction is extremely robust.
Vibration mounts are fitted as standard.
Quality brushed motor available in 12 and 24 V

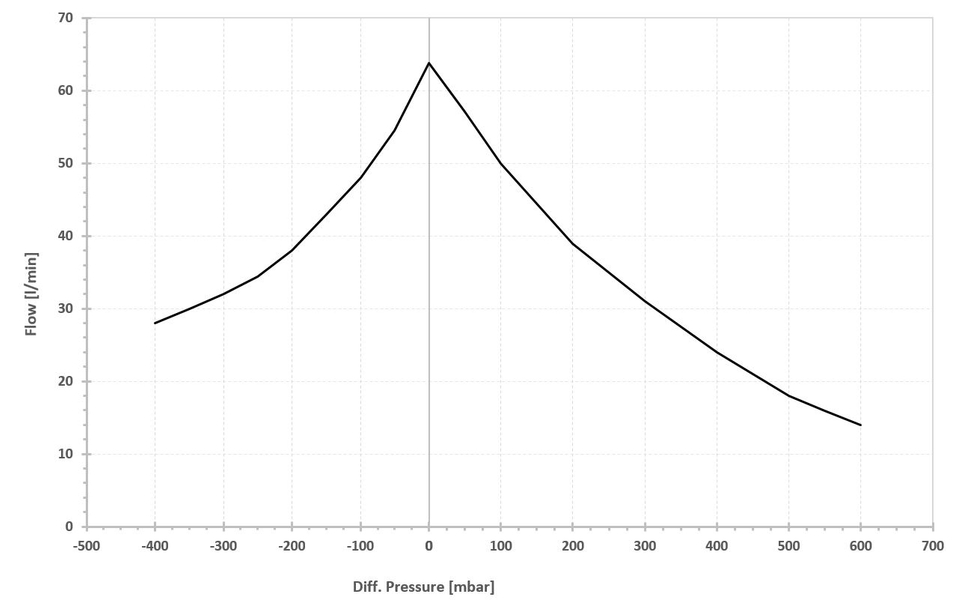

| Free flow | 62 l/min |
| Max pressure | 600 mbar |
| Max vacuum | -400 mbar (-850 mBar in series) |
| Voltage options | 12 / 24 V DC |
| Power Consumption | 60 to 80 W |
| Elastomers | Nitrile |
| Other wetted parts | PPS (Polyphenylene Sulphide) |
| Configuration - Standard | Each head pair connected in parallel (2 inlets / 2 outlets) |
| Configuration - Parallel | As standard additionally in parallel (1 inlet / 1 outlet) |
| Configuration - Series | As standard additionally in series (1 inlet / 1 outlet) |
| Tube connections | Barb for 6 mm to 8 mm ID tube |
| Max ambient temperature | 50°C |
| Max media temperature | 100°C |
| Weight |
1870g
|
To order samples / small quantities, click on the above 'Purchase Configurator' link or use the 'Add to shopping cart' links below.
Teilenummer:
7004.012
Motor / Voltage:
Brushed Motor 12 V
484,57 €*
Sofort verfügbar, Versand innerhalb 1 - 2 Tage
Teilenummer:
7004.024
Motor / Voltage:
Brushed Motor 24 V
484,58 €*
Sofort verfügbar, Versand innerhalb 1 - 2 Tage
Additional Accessories
Alle Daten sind für Auswahlzwecke repräsentativ, geben jedoch keine Höchst- oder Mindestwerte an. Diese Produkte werden als Komponenten verkauft, die in ein Gerät eingebaut werden sollen. Es liegt in der Verantwortung des Geräteherstellers, die Eignung der Pumpe für die Anwendung zu bestimmen und die Einhaltung aller geltenden Zulassungen und Vorschriften sicherzustellen. Diese Produkte sind nicht für In-vivo-Anwendungen geeignet.
