20KD Series
The 20KD series is a miniature diaphragm pump which, uniquely for this class of pump, offers the significant advantages of a double head design within a 12 mm width frame size. The double headed construction extends performance range to an impressive 70% vacuum and 1.5 bar pressure, reduces pulsation and offers slow running with the associated benefits of reduced sound and extended life. Typical examples include portable environmental gas analysis, medical monitoring, medical therapy and chemical agents / biohazard detection.
Recognising that instrument miniaturisation often results in low performance requirements, the 20KD is additionally available in a 'Low Flow' configuration which maximises efficiency (hence also battery life) at the lower end flow range of this series. This is achieved through the use of optimised low speed coreless motors combined with a pump head specifically designed for low flow. These pumps are listed as below as 'Coreless LF'. Additionally stable flow valve technology ensures consistent operation at flows below 50 ml/m without influence from the pump's orientation.
Use of high strength glass filled PPS plastics ensure a robust construction with a high degree of air-tightness throughout the performance and environmental operating range.
› Flow rate to 750 ml/min
› Extremely compact with a 12 mm body
› Flexibility of series, parallel or independent head configurations
› Low Flow option
› Stable flow valve technology
› Choice of iron core and coreless motors
The flat design also facilitates 'twin' mounting offering the flexibility of 4 independent gas channels within a 24mm width.
This series is also available in a compact single head configuration (20K).
Flow control is available in combination with PWM Flow Controller.

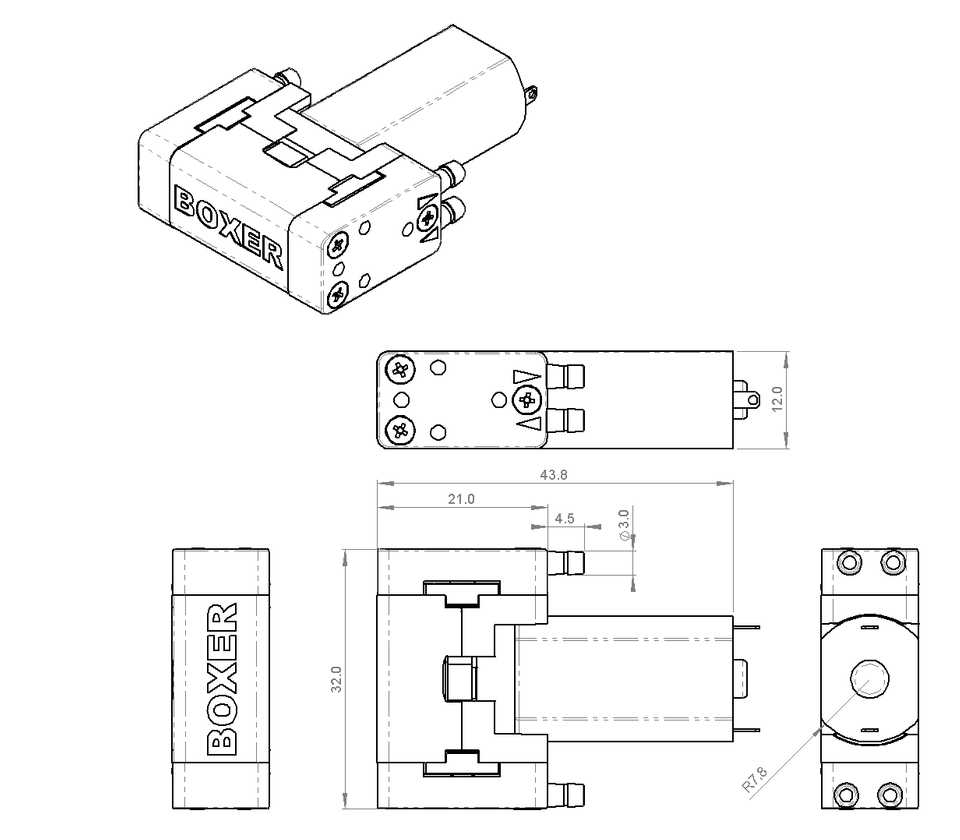

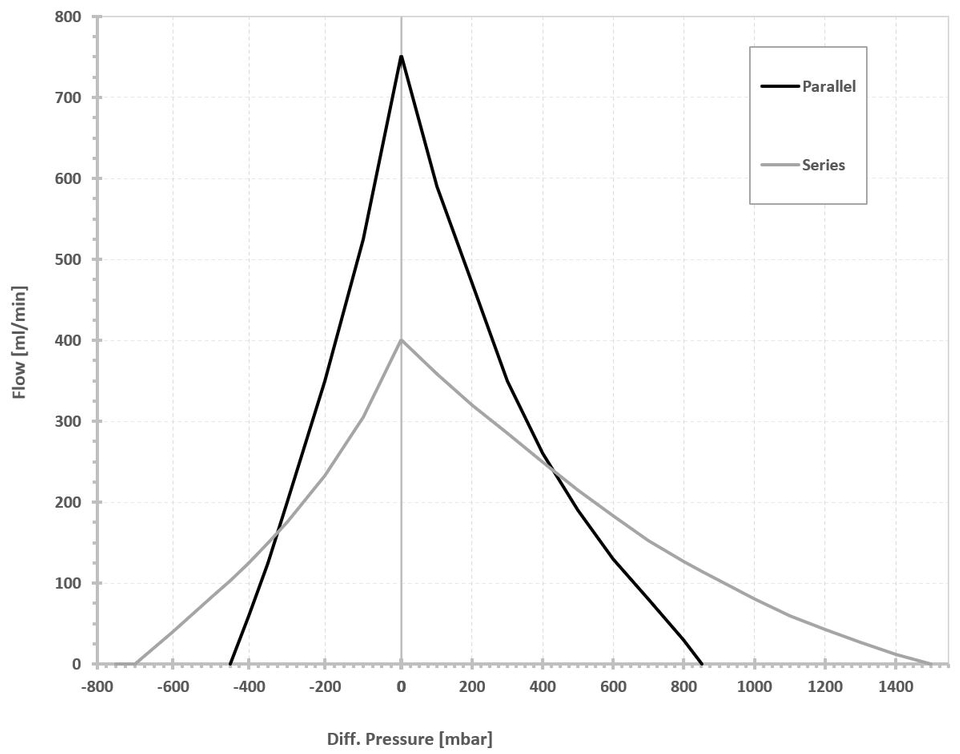

| Parallel Connection: | |
| Free Flow (at 8.0 V) | 750 ml/min |
| Max Pressure (at 8.0 V) | 850 mbar |
| Max Vacuum(at 8.0 V) | -450 mbar |
| Power Consumption (at 8.0 V) | 0.72 to 1.28 W |
| Series Connection: | |
| Free Flow (at 8.0 V) | 400 ml/min |
| Max Pressure (at 8.0 V) | 1500 mbar |
| Max Vacuum (at 8.0 V) | -700 mbar |
| Power Consumption (at 8.0 V) | 0.72 to 1.6 W |
| Motor Termination | Solder tags |
| Operating Temperature Range | 5 to +60 °C |
| Operating Humidity Range | 5 to 95% RH |
| Elastomers Options | EPDM |
| Other Wetted Parts | PPS (Polyphenylene Sulphide) |
| Tube Connection | 3.0 mm barb for 2.0 to 2.5 mm ∅ tubing |
| Weight | 26g |
Sofort verfügbar, Versand innerhalb 1 - 2 Tage
| Parallel Connection: | |
| Free Flow (at 12 V) | 500 ml/min |
| Max Pressure (at 12 V) | 500 mbar |
| Max Vacuum (at 12 V) | -400 mbar |
| Power Consumption (at 12 V) | 0.2 to 0.4 W |
| Free Flow (at 9.0 V) | 400 ml/min |
| Max Pressure (at 9.0 V) | 500 mbar |
| Max Vacuum (at 9.0 V) | -400 mbar |
| Power Consumption (at 3.3 V) | 0.1 to 0.3 W |
| Series Connection: | |
| Free Flow (at 12.0 V) | 300 ml/min |
| Max Pressure (at 12.0 V) | 900 mbar |
| Max Vacuum (at 12.0 V) | -550 mbar |
| Power Consumption (at 12.0 V) | 0.2 to 0.5 W |
| Free Flow (at 9.0 V) | 220 ml/min |
| Max Pressure (at 9.0 V) | 900 mbar |
| Max Vacuum (at 9.0 V) | -550 mbar |
| Power Consumption (at 9.0 V) | 0.1 to 0.4 W |
| Motor Termination | 100 mm leads (red +, black -) |
| Operating Temperature Range | 5 to +60 °C |
| Operating Humidity Range | 5 to 95% RH |
| Elastomers Options | EPDM |
| Other Wetted Parts | PPS (Polyphenylene Sulphide) |
| Tube Connection | 3.0 mm barb for 2.0 to 2.5 mm ∅ tubing |
| Weight | 24g |
