DT60 Series

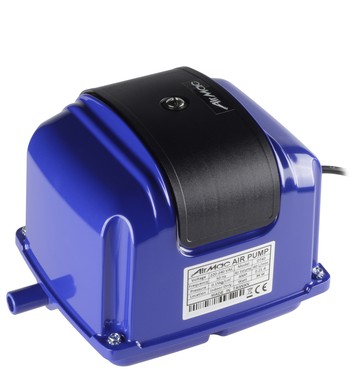

The DT60 is the 60 l/min linear diaphragm pump from the Airmac DT Series. It offers both compact design and extremely low power consumption which significantly reduces operating costs over the long lifespan of the pump. It is sold complete with a robust and sound reducing aluminium housing, integrated inlet filter, rubber feet, outlet port with additional rubber elbow connector and clamps, power cord and EU plug.
› Flow rate of 60 l/mim against 150 mbar
› Extremely low power consumption (39 W)
› Compact design
› Long life linear drive
› Safety switch to protect against diaphragm failure
› Fully serviceable (⇒ service kits)
| Flow (at 150 mbar) | 60 l/min |
| Operating Pressure Range | 100 to 250 mbar |
| Operating Flow Range | 75 to 35 l/min |
| Current Consumption (at 150 mbar)) | 0.21 A |
| Power Consumption (at 150 mbar) | 39 W |
| Cable Length | 1.8 m |
| Cable Termination | EU Plug |
| Approval | CE (according to EN60335, electrical household appliances), RoHS |
| Operating Temperature Range | -10 to +40 °C |
| Operating Humidity Range | 20 to 80% RH |
| Inlet | Via Integrated filter (under housing cover as replaceable item) |
| Outlet | 18 mm OD port |
| Weight | 5.4 kg |
To order samples / small quantities, click on the above 'Purchase Configurator' link or use the 'Add to shopping cart' links below.
Teilenummer:
180060.230
Model:
DT60 (230 V / 50 Hz with EU plug)
Alle Daten sind für Auswahlzwecke repräsentativ, geben jedoch keine Höchst- oder Mindestwerte an. Diese Produkte werden als Komponenten verkauft, die in ein Gerät eingebaut werden sollen. Es liegt in der Verantwortung des Geräteherstellers, die Eignung der Pumpe für die Anwendung zu bestimmen und die Einhaltung aller geltenden Zulassungen und Vorschriften sicherzustellen. Diese Produkte sind nicht für In-vivo-Anwendungen geeignet.
